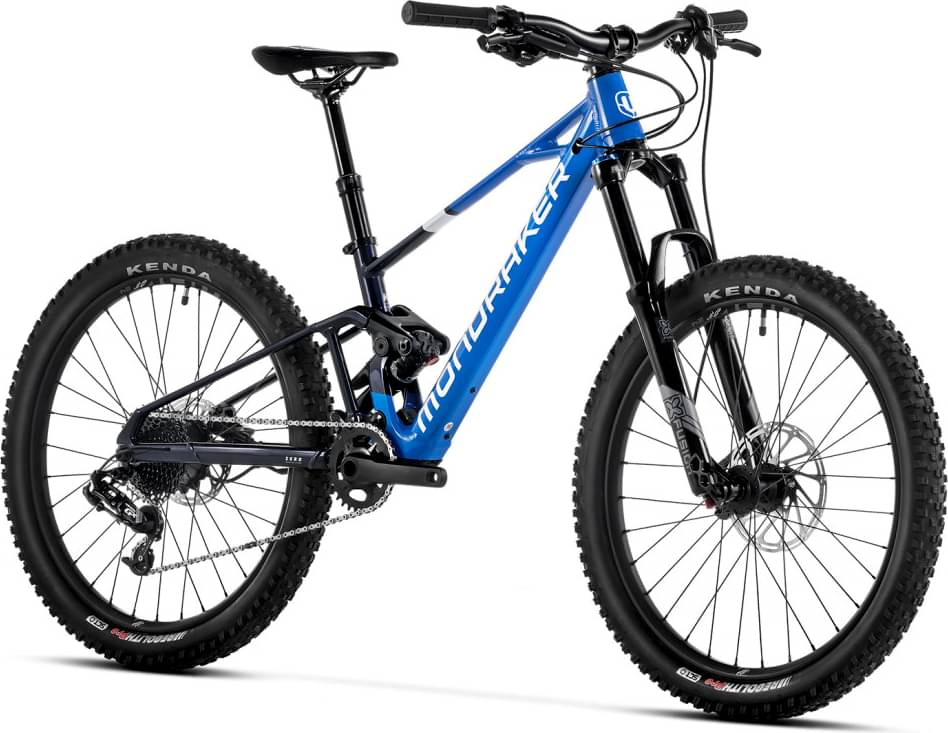

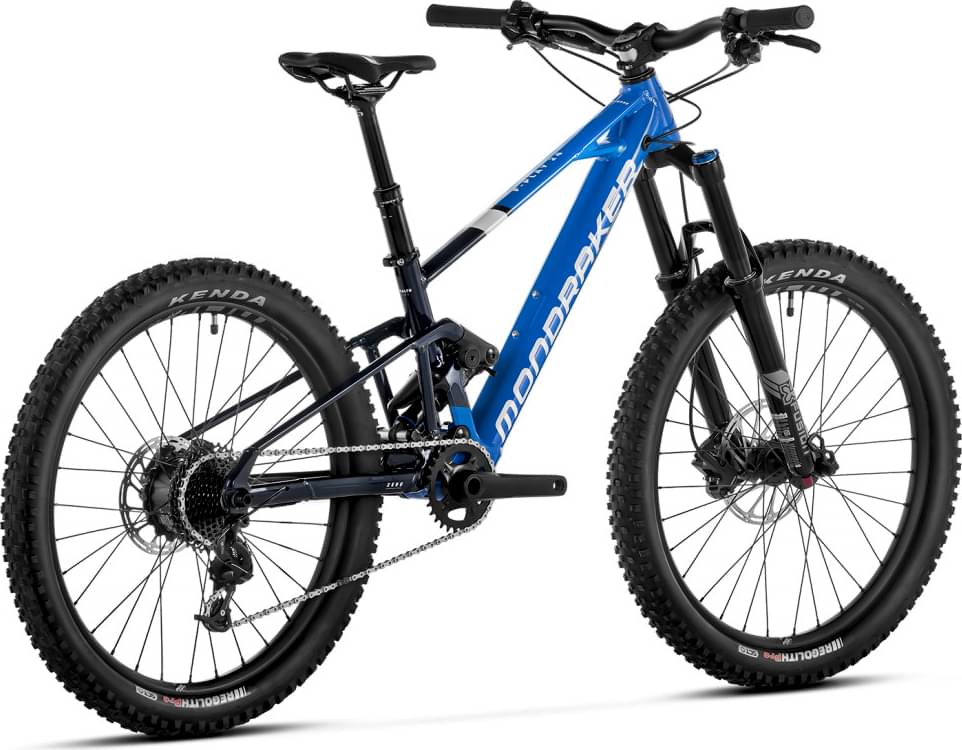

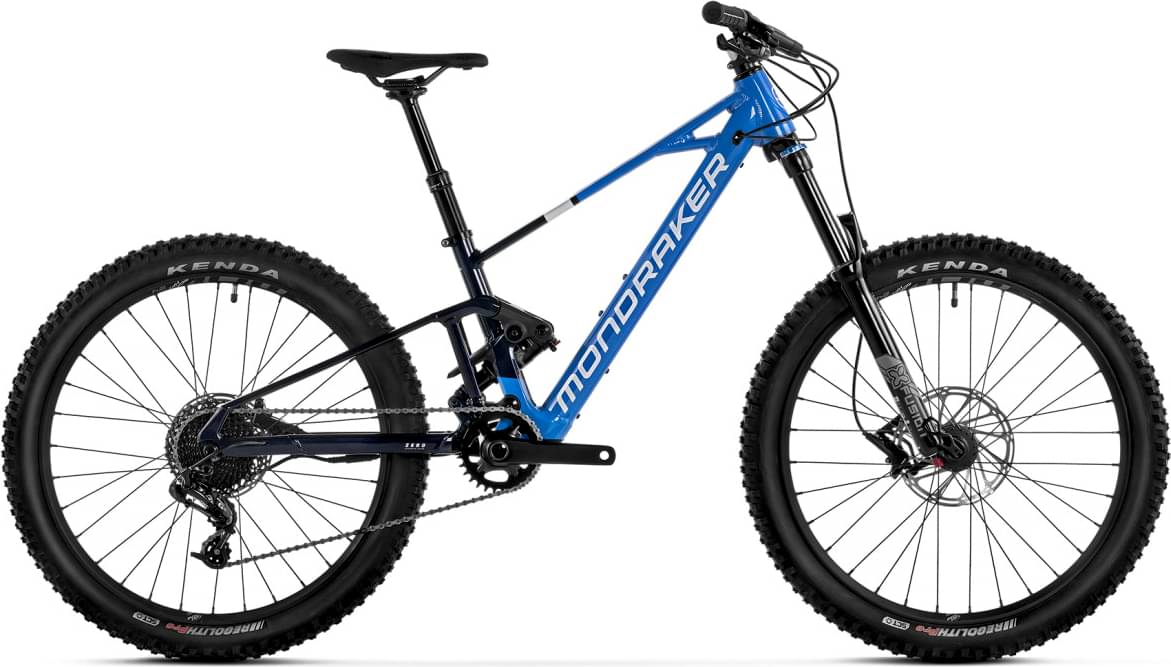

Mondraker F-PLAY 24 2024
2024 E-bike
Estimate price |
3,746$
Weight | 16.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 120mm -
Travel Rear 120mm -
Fork X-Fusion VELVET
-
Groupset GX -
Suspension Full -
Motor MAHLE hub-drive -
Battery Mahle-Ebikemotion Internal 250Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Suspension Fork
X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Rear Shock
X-Fusion 02PRO R, 165x42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings
Drivetrain
Rear Derailleur
SRAM GX, 10s, short cage, X-actuation 1:1
Shift Levers
SRAM trigger GX 10s, X-actuation 1:1
Crank
Samox DM 30T steel, 152mm, Rings: 30T, steel
Bottom Bracket
BSA, 73mm
Chain
SRAM PC1031 10s, Powerlock
Pedals
SDG Slater JR
Wheels
Front Hub
DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear Hub
Mahle-Ebikemotion X-35, HG freehub
Rims
MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes
CN round stainless steel
Tires
Front: Kenda Regolith 24x2.4 120TPI, Folding TLR, Rear: Kenda Regolith 24x2.4 120TPI, Folding TLR
Brakes
Brakes
Front: SRAM Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers
SRAM Level, tooled reach adjust, lever pivot bushings
Cockpit
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on
Headset
Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom
Seat
Saddle
SDG Fly JR
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 100mm
Motor & Battery
Motor
Mahle-Ebikemotion X-35
Battery
Mahle-Ebikemotion Internal 250Wh
Fit data

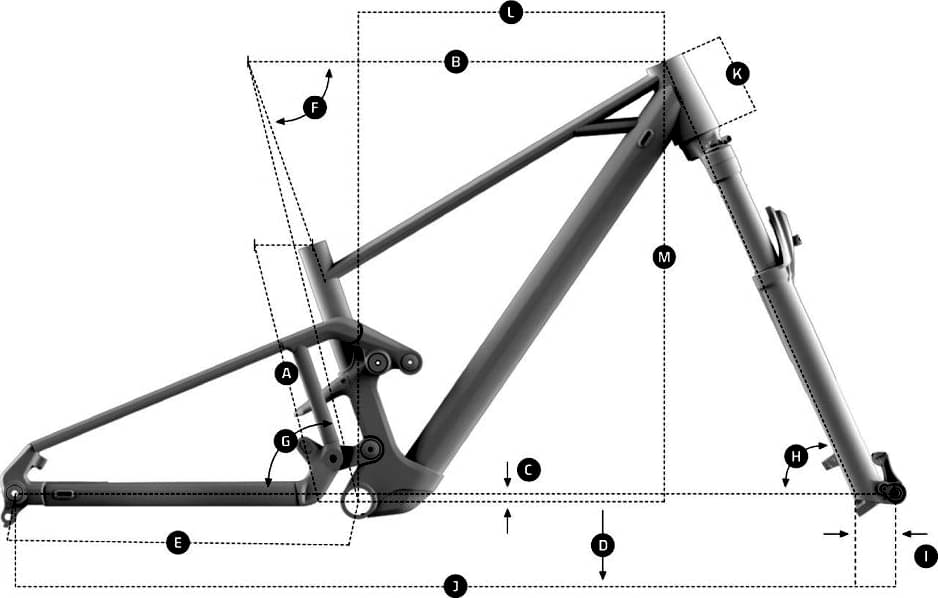

Geometry
Numbers for sizing and ride feel.
Model Overview
F-PLAY 24 is part of the Mondraker E F Play model. Mondraker launched 8 e-bikes of this model so far. Take a sneak peek at all Mondraker E F Play e-bikes models from 2024, by clicking here.
Model range prices
The most economical model, the Mondraker F-PLAY 24 2024 has a starting price of 3409$. Mondraker F-PLAY 26 2024 on the other hand is the most expensive at 3652$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Youth e-bikes
Our math shows that the average cost of a dependable Youth e-bike is 1895$. However, even though the average price of a Youth e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Mondraker released this model in 2024, its price was 3409$. In conclusion, this e-bike price is 79.89% higher than the price of the average Youth e-bike.
Average weight for Youth e-bikes
Youth e-bikes weigh an average of 17.49 kg (38.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit lighter than average, F-PLAY 24 has a weight of 16.2 kg (35.71 lbs). In conclusion, the average Youth e-bike weighs 7.96% more than F-PLAY 24.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
F-PLAY 24 components
Fork
This e-bike has the X-Fusion VELVET fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
Mondraker F-PLAY 24 e-bike has the X-Fusion 02PRO R model installed, and has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the F-PLAY 24 model has 24″ aluminum wheels. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
Mondraker F-PLAY 24 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
