Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Fork X Fusion
-
Groupset SX Eagle -
Suspension Full -
Motor MAHLE hub-drive -
Battery Mahle-Ebikemotion, integrated, non-removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
X-Fusion Velvet RL2, Motion Control damper, lockout, rebound adjust, 41mm offset
Rear Shock
X-Fusion 02PRO R, low-speed rebound adjust, 210mm x 55mm
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-ACTUATION 1:1
Front Derailleur
None
Shift Levers
SRAM SX Eagle, 12-speed, X-ACTUATION 1:1
Cassette
SRAM NX Eagle PG-1230, 12-speed, 11-50 tooth
Crank
SRAM SX Eagle DUB, 155mm length
Chain
SRAM SX Eagle, 12-speed, with Powerlock
Chain Guide
None
Pedals
None
Wheels
Front Hub
Front: Formula DC20LW, 9x135mm, Rear: Mahle-Ebikemotion X-35, 9mm, HG driver
Rear Hub
Front: Formula DC20LW, 9x135mm, Rear: Mahle-Ebikemotion X-35, 9mm, HG driver
Rims
MDK-XP1, 23mm internal width, tubeless ready, 32 hole
Spokes
CN round stainless steel
Tires
Kenda Booster, single compound, 30 TPI, wire bead, 26" x 2.4"
Brakes
Brakes
Shimano M410, 2-piston, resin pads, Shimano RT56 160mm 6-bolt rotors
Brake Levers
Shimano M4100, alloy, tooled reach adjust
Cockpit
Stem
MDK XC, 6061 forged alloy, 35mm length, 31.8mm bar clamp, 0° rise
Handlebar
MDK XC 1.0, 6061 alloy, 25mm rise, 680mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Grips
Onoff Twin, single lock-on, 135mm length
Headset
Onoff Saturn, sealed angular contact bearings
Seat
Saddle
SDG Fly JR
Seatpost
MDK XC 0-R, 6061 T6 alloy, 350mm length
Motor & Battery
Motor
Mahle-Ebikemotion X-35 rear hub
Battery
Mahle-Ebikemotion, integrated, non-removable
Fit data
Geometry
Numbers for sizing and ride feel.
Model Overview

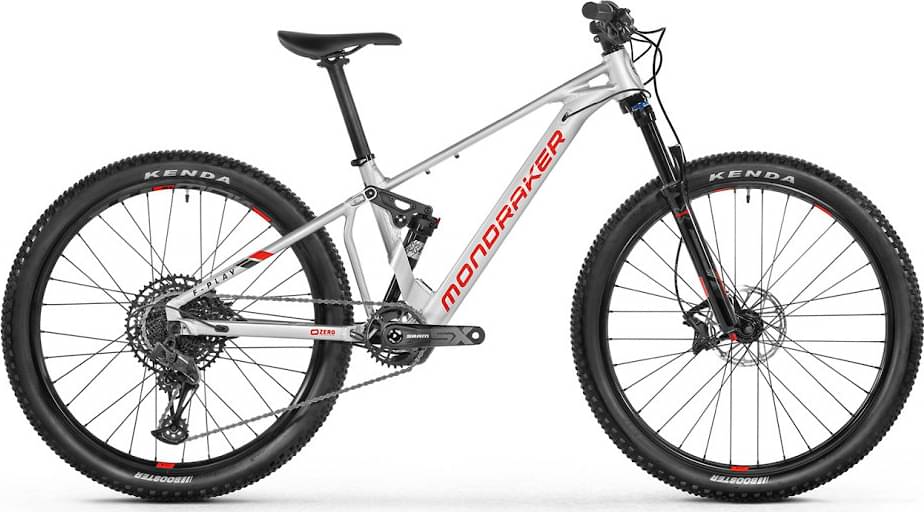

F-Play 26 completes the Mondraker E F Play model. Mondraker released 6 e-bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 16.4 kg (36.16 lbs), Mondraker e-bike is much lighter than average. In other words, this model is 44.51% lighter than the average Trail e-bike.
Overview of components
Fork
This e-bike has the X Fusion fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this e-bike has the X-Fusion 02PRO R model, with a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Mondraker F-Play 26 2021, has a 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The F-Play 26 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
