Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Fork X-Fusion VELVET
-
Groupset SX Eagle -
Suspension Full -
Motor MAHLE hub-drive -
Battery Mahle-Ebikemotion Internal 250Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
F-Play 26 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Suspension Fork
X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 9x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Rear Shock
X-Fusion 02PRO R, 210x55mm. Settings: low-speed rebound, air preload. 45x8mm top and bottom bushings
Drivetrain
Rear Derailleur
SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift Levers
SRAM Trigger SX Eagle, 12s, X-Actuation 1:1
Crank
SRAM SX Eagle, DUB axle, Direct mount chain ring, 155mm, Rings: 30T, steel, X-Sync
Bottom Bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM SX Eagle, 12s, Powerlock
Wheels
Front Hub
Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts
Rear Hub
Mahle-Ebikemotion X-35
Rims
MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes
CN round stainless steel
Tires
Front: Kenda Booster 26x2.4 single compound 30TPI, wire bead, Rear: Kenda Booster 26x2.4 single compound 30TPI, wire bead
Brakes
Brakes
Front: SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers
SRAM Level, tooled reach adjust, lever pivot bushings
Cockpit
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Seat
Saddle
SDG Fly JR
Seatpost
MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 350mm
Motor & Battery
Motor
Mahle-Ebikemotion X-35
Battery
Mahle-Ebikemotion Internal 250Wh
Fit data

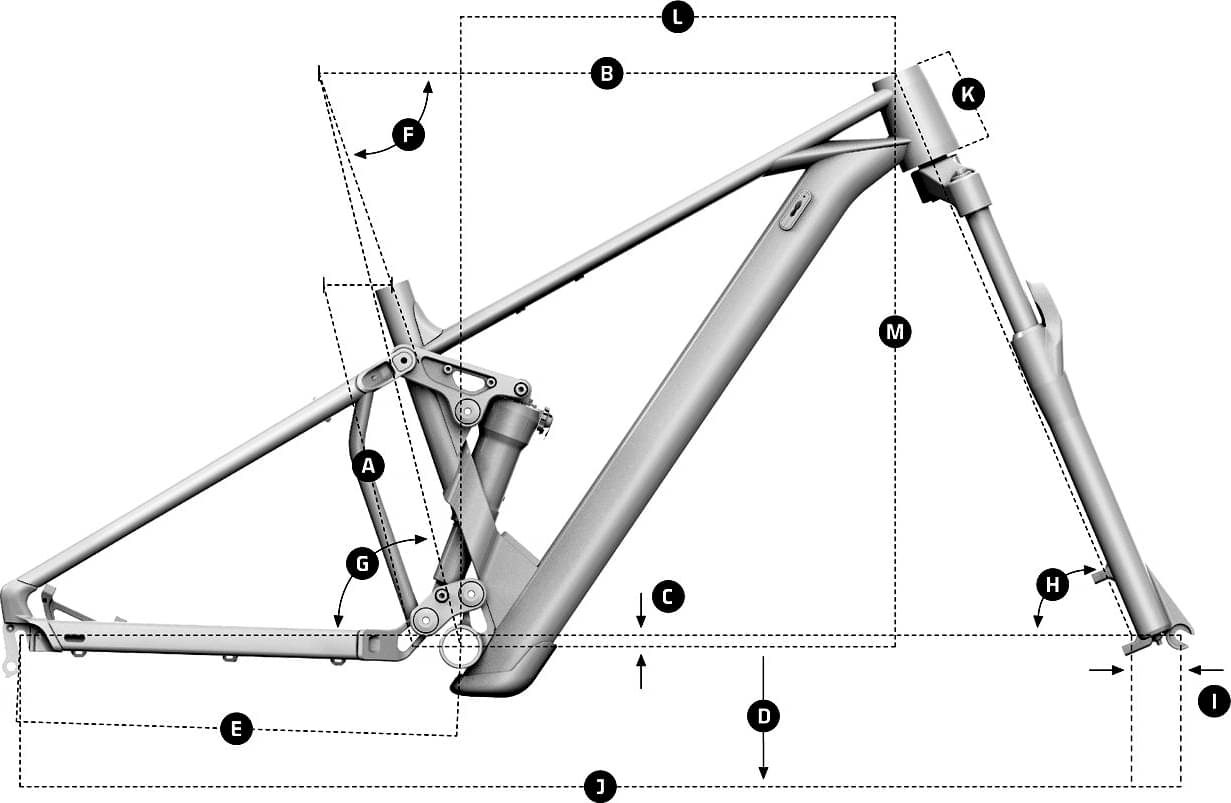

Geometry
Numbers for sizing and ride feel.
Model Overview
F-PLAY 26 is a Mondraker E F Play model. 6 e-bikes variations carry this model name so far. You can easily view all of the Mondraker E F Play e-bikes models from 2023, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Youth e-bikes
Our math shows that the average cost of a dependable Youth e-bike is 1895$. However, even if your budget is less than the average, you might still be able to get a top-quality Youth e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Youth e-bikes
The average weight for Youth e-bikes is 20.12 kg (44.36 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 16.9 kg (37.26 lbs), Mondraker e-bike is much lighter than average. In conclusion, the average Youth e-bike weighs 19.05% more than F-PLAY 26.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
Mondraker F-PLAY 26 2023 e-bike is equipped with the X-Fusion VELVET fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this e-bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
The F-PLAY 26 has a rear shock with a travel of 120mm. The model X-Fusion 02PRO R is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the F-PLAY 26 e-bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
