Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID SL Select
-
Groupset GX Eagle, SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox SID SL Select RL, Charger damper, DebonAir spring, OneLock 2-position remote compression lockout, low-speed rebound adjust, 44mm offset
Rear Shock
RockShox SID Select+ RLR, DebonAir spring, OneLock 2-position remote compression lockout, low-speed rebound adjust, 185mm x 47.5mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-ACTUATION
Front Derailleur
None
Shift Levers
SRAM SX Eagle, 12-speed, Trigger, X-ACTUATION
Cassette
SRAM NX Eagle PG-1230, 12-speed, 11-50 tooth
Crank
Truvativ Stylo 6K Eagle DUB, 170mm length (SM), 175mm length (MD/LG/XL)
Bottom Bracket
SRAM DUB, sealed bearings, 73mm BSA threaded
Chain
SRAM SX Eagle, 12-speed, PowerLock
Chain Guide
None
Pedals
None
Wheels
Front Hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and HG driver
Rear Hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and HG driver
Rims
DT Swiss X1900 Spline, 25mm internal width, sleeved aluminum, tubeless ready, 28 hole
Spokes
DT Swiss Champion, straightpull
Tires
Maxxis Rekon Race, EXO, TR, 120 TPI, folding bead, 29" x 2.25"
Brakes
Brakes
SRAM Level T, 2-piston, SRAM CenterLine 6-bolt 160mm rotors, steel-backed organic pads
Brake Levers
SRAM Level T, Direct Link, lever pivot bushings, tooled reach adjust
Cockpit
Stem
MDK, 6061-T6 alloy, +/-5° rise, 31.8mm bar clamp, Length: 50mm (SM/MD), 60mm (LG), 70mm (XL)
Handlebar
ONOFF Sulfur 0.2, double-butted 6061 alloy, 4.8mm rise, 760mm width, 9° backsweep, 0° upsweep, 31.8mm clamp diameter
Grips
ONOFF Twin, 135mm length, single lock-on
Headset
ACROS AZX-239 R1 Block Lock, ZS44/28.6 upper, ZS56/40 lower
Seat
Saddle
fi'zi:k Antares R7
Seatpost
ONOFF Sulfur 0-R, 3D-forged 6061-T6 alloy, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.25 mm | 1.21 mm | 1.19 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Stack | 577 mm | 582 mm | 591 mm | 605 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 587 mm | 607 mm | 632 mm | 657 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 85 mm | 90 mm | 100 mm | 115 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1139 mm | 1160 mm | 1184 mm | 1210 mm |
| Bottom Bracket Drop | 49 mm | 49 mm | 49 mm | 49 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

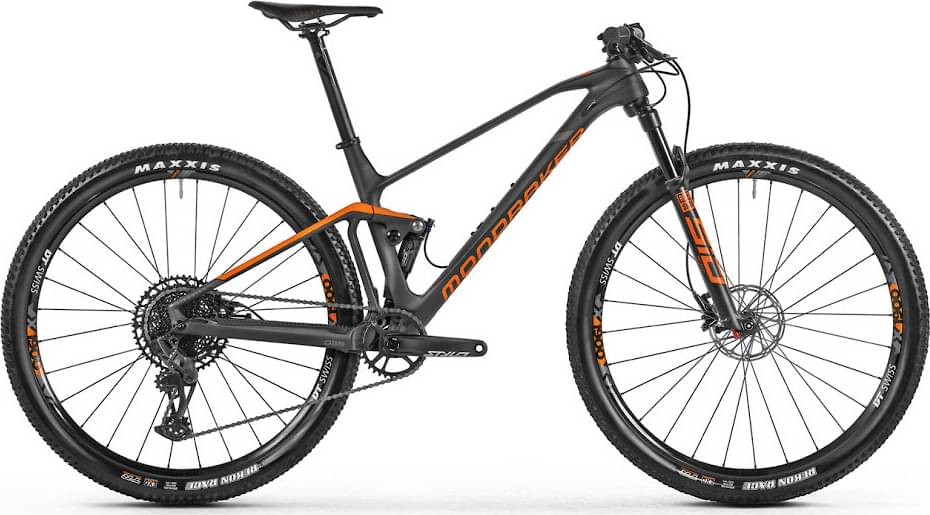

F-Podium Carbon completes the Mondraker F Podium model. There are 23 bikes that carry this model name. Take a sneak peek at all Mondraker F Podium bikes models from 2021, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
considerably lighter than average, F-Podium Carbon has a weight of 10.9 kg (24.03 lbs). In other words, this model is 13.76% lighter than the average Crosscountry bike.
F-Podium Carbon components
Fork
The RockShox SID SL Select is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is RockShox SID Select+ RLR, with a travel distance of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on F-Podium Carbon are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Mondraker F-Podium Carbon has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
F-Podium Carbon comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
