Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork RockShox SID Select
-
Groupset GX Eagle, SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox SID Select RL, Charger damper, DebonAir spring, OneLock 2-position remote compression lockout, low-speed rebound adjust, 44mm offset
Rear Shock
RockShox SID Select+ RLR, DebonAir spring, OneLock 2-position remote compression lockout, low-speed rebound adjust, 185mm x 47.5mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-ACTUATION
Front Derailleur
None
Shift Levers
SRAM SX Eagle, 12-speed, Trigger, X-ACTUATION
Cassette
SRAM NX Eagle PG-1230, 12-speed, 11-50 tooth
Crank
Truvativ Stylo 6K Eagle DUB, 170mm length (SM/MD), 175mm length (LG/XL)
Bottom Bracket
SRAM DUB, sealed bearings, 73mm BSA threaded
Chain
SRAM SX Eagle, 12-speed, PowerLock
Chain Guide
None
Pedals
None
Wheels
Front Hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and HG driver
Rear Hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and HG driver
Rims
DT Swiss X1900 Spline, 25mm internal width, sleeved aluminum, tubeless ready, 28 hole
Spokes
DT Swiss Champion, straightpull
Tires
Maxxis Rekon Race, EXO, TR, 120 TPI, folding bead, 29" x 2.35"
Brakes
Brakes
SRAM Level T, 2-piston, SRAM CenterLine 6-bolt rotors (180mm front/160mm rear), steel-backed organic pads
Brake Levers
SRAM Level T, Direct Link, lever pivot bushings, tooled reach adjust
Cockpit
Stem
MDK, 6061-T6 alloy, +/-5° rise, 31.8mm bar clamp, Length: 50mm (SM/MD), 60mm (LG), 70mm (XL)
Handlebar
ONOFF Sulfur 0.2, double-butted 6061 alloy, 4.8mm rise, 760mm width, 9° backsweep, 0° upsweep, 31.8mm clamp diameter
Grips
ONOFF Twin, 135mm length, single lock-on
Headset
ACROS AZX-239 R1 Block Lock, ZS44/28.6 upper, ZS56/40 lower
Seat
Saddle
fi'zi:k Antares R7
Seatpost
ONOFF Pija dropper, Drop: 100mm (SM), 125mm (MD/LG/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.29 mm | 1.25 mm | 1.23 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 584 mm | 589 mm | 598 mm | 612 mm |
| Reach | 437 mm | 457 mm | 477 mm | 497 mm |
| Top Tube Length | 590 mm | 610 mm | 636 mm | 661 mm |
| Seat Tube Angle | 75.1 ° | 75.1 ° | 75.1 ° | 75.1 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 66.8 ° | 66.8 ° | 66.8 ° | 66.8 ° |
| Head Tube Length | 85 mm | 90 mm | 100 mm | 115 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1153 mm | 1174 mm | 1198 mm | 1224 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

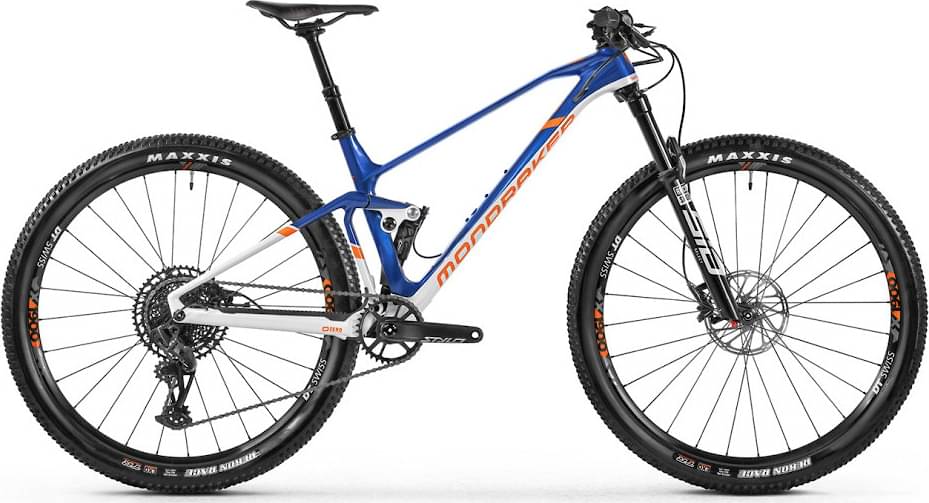

F-Podium Carbon DC completes the Mondraker F Podium model. Mondraker released 23 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 12.4 kg (27.34 lbs), Mondraker bike is equally heavier with average. In short, the average Crosscountry bike weight is 0% lower than this one.
Overview of components
Fork
Mondraker F-Podium Carbon DC 2021 bike is equipped with the RockShox SID Select fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The F-Podium Carbon DC has a rear shock with a travel of 100mm. The model RockShox SID Select+ RLR is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the F-Podium Carbon DC bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The F-Podium Carbon DC comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Mondraker model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
