Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork RockShox SID Ultimate
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 115mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
Suspension Fork
Rockshox SID Ultimate RL 29, 120mm, Charger Race day, DebonAir, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: OneLoc, Low-speed rebound, air preload
Rear Shock
Rockshox SID Luxe Ultimate RLR DebonAir, 185x50mm. Settings: OneLoc, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Drivetrain
Rear Derailleur
SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift Levers
SRAM Trigger GX Eagle, 12s, X-Actuation 1:1
Crank
SRAM X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm, M/L/XL size: 175mm, Rings: 34T, CNC-machined alloy, X-SYNC 2
Bottom Bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM GX Eagle, 12s, Powerlock
Wheels
Front Hub
Infinity hub, Boost 15x110mm, IS 6 bolts
Rear Hub
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts
Rims
Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes
24 straight-pull double butted spokes
Tires
Front: Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead, Rear: Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
Brakes
Brakes
Front: SRAM Level TL, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level TL, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers
SRAM Level TL, Direct Link actuation, tooled reach adjust, lever pivot bushings
Cockpit
Stem
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
Handlebar
ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips
ONOFF Desert, 1lock-on, 135mm
Headset
Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom
Seat
Saddle
Fizik Antares R7
Seatpost
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Fit data

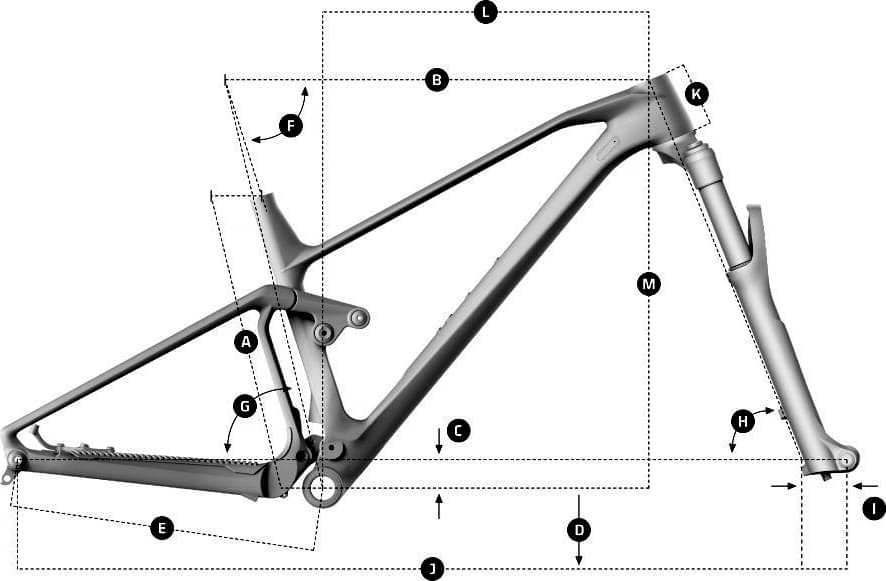

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.29 mm | 1.25 mm | 1.23 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 716 mm | 737 mm | 761 mm | 787 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 135 mm | 138 mm | 137 mm | 137 mm |
| Stack | 584 mm | 589 mm | 598 mm | 612 mm |
| Reach | 437 mm | 457 mm | 477 mm | 497 mm |
| Top Tube Length | 590 mm | 610 mm | 636 mm | 661 mm |
| Seat Tube Angle | 75.1 ° | 75.1 ° | 75.1 ° | 75.1 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 66.8 ° | 66.8 ° | 66.8 ° | 66.8 ° |
| Head Tube Length | 85 mm | 90 mm | 100 mm | 115 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1153 mm | 1174 mm | 1198 mm | 1224 mm |
| Bottom Bracket Drop | -31 mm | -31 mm | -31 mm | -31 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
F-PODIUM CARBON DC R is a Mondraker F Podium model. 23 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 11.8 kg (26.01 lbs), the F-PODIUM CARBON DC R model is a bit lighter than average. In short, the average Crosscountry bike weight is 5.08% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
F-PODIUM CARBON DC R components
Fork
Mondraker F-PODIUM CARBON DC R 2023 bike is equipped with the RockShox SID Ultimate fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
F-PODIUM CARBON DC R has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
As for the rear shock, this bike has the Rockshox SID Luxe Ultimate RLR DebonAir model, with a travel of 115mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on F-PODIUM CARBON DC R are the 29″ carbon type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Mondraker F-PODIUM CARBON DC R is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the F-PODIUM CARBON DC R. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
