Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 32 Factory Step-Cast (SC), FIT4 damper, EVOL, Kashima coating, remote lockout, low-speed compression micro-adjust, rebound adjust, 44mm offset
Rear Shock
FOX FLOAT DPS Factory, SV EVOL, Kashima coating, 2-position remote compression lockout, low-speed rebound adjust, 185mm x 47.5mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-ACTUATION
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed, Trigger, X-ACTUATION
Cassette
SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth
Crank
SRAM X1 Eagle Carbon DUB, 170mm length (SM), 175mm length (MD/LG/XL)
Bottom Bracket
SRAM DUB, sealed bearings, 73mm BSA threaded
Chain
SRAM GX Eagle, 12-speed, PowerLock
Chain Guide
None
Pedals
None
Wheels
Front Hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and XD driver
Rear Hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and XD driver
Rims
DT Swiss XRC1750 Carbon Spline, 30mm internal width, hookless, tubeless ready, 28 hole
Spokes
DT Swiss Champion, straightpull
Tires
Maxxis Rekon Race, EXO, TR, 120 TPI, folding bead, 29" x 2.35"
Brakes
Brakes
SRAM Level TL, 2-piston, SRAM CenterLine 6-bolt 160mm rotors, steel-backed organic pads
Brake Levers
SRAM Level TL, Direct Link, lever pivot bushings, tooled reach adjust
Cockpit
Stem
MDK, 6061-T6 alloy, +/-5° rise, 31.8mm bar clamp, Length: 50mm (SM/MD), 60mm (LG), 70mm (XL)
Handlebar
ONOFF Helium Carbon 0.2, 4.8mm rise, 760mm width, 9° backsweep, 0° upsweep, 31.8mm clamp diameter
Grips
ONOFF Desert, 135mm length, single lock-on
Headset
ACROS AZX-239 R1 Block Lock, ZS44/28.6 upper, ZS56/40 lower
Seat
Saddle
fi'zi:k Antares R7
Seatpost
ONOFF Helium Carbon 0-R, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.25 mm | 1.21 mm | 1.19 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Stack | 577 mm | 582 mm | 591 mm | 605 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 587 mm | 607 mm | 632 mm | 657 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 85 mm | 90 mm | 100 mm | 115 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1139 mm | 1160 mm | 1184 mm | 1210 mm |
| Bottom Bracket Drop | 49 mm | 49 mm | 49 mm | 49 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

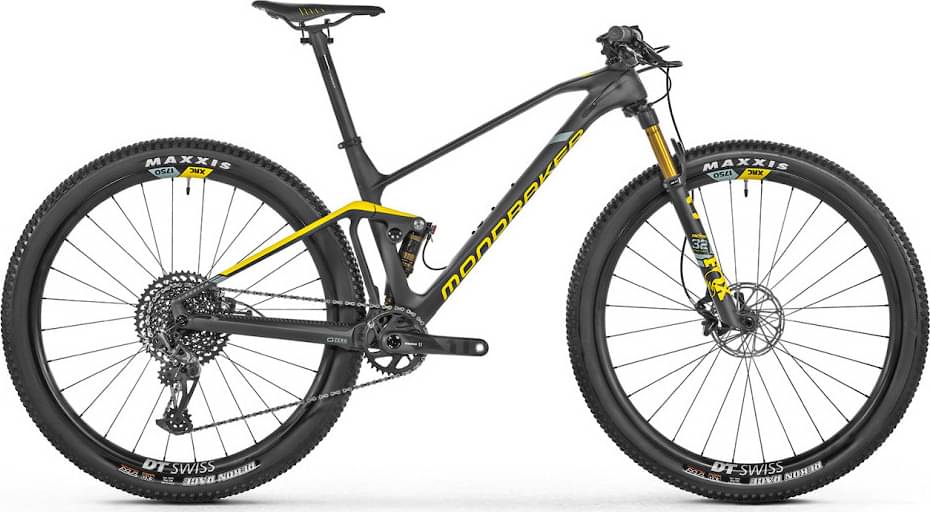

F-Podium Carbon R is a Mondraker F Podium model. Mondraker launched 23 bikes of this model so far. You can easily view all of the Mondraker F Podium bikes models from 2021, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Mondraker F-Podium Carbon R it’s weighing 10.8 kg (23.81 lbs). At this weight, is considerably lighter than average. In conclusion, the average Crosscountry bike weighs 14.81% more than F-Podium Carbon R.
F-Podium Carbon R components
Fork
The fork installed on this bike is the Fox Factory Float 32 model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The F-Podium Carbon R has a rear shock with a travel of 100mm. The model FOX FLOAT DPS Factory is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the F-Podium Carbon R bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Mondraker F-Podium Carbon R has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
