Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset NX, SRAM -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Rhythm Sweep EVOL, 110x15mm axle, 2-position lever with intermediate positions in low/high-speed compression, rebound, compression adjustment at high/low-speed to lockout, air preload
Rear Shock
FOX Float DPS SV Performance, 190mm x 50mm, rebound, compression (3 positions), air preload
Drivetrain
Rear Derailleur
SRAM NX, Type 3, roller bearing clutch, cage lock, 11-speed, long cage, X-Horizon system
Front Derailleur
N/A
Shift Levers
SRAM Trigger NX1, 11-speed, Exact actuation, Zero Loss technology
Cassette
Sunrace CSMS8, 11-46 tooth, 11-speed
Crank
SRAM NX16000, aluminum, 24mm axle, 170mm length (S/M), 175mm length (L/XL)
Bottom Bracket
SRAM GXP XR, sealed bearings, 73mm BSA
Chain
SRAM PC-1110, 11-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Front: MDK DC511, sealed bearings, IS 6-bolt, 110x15mm, Rear: MDK GW, sealed bearings, IS 6-bolt, 148x12mm
Rear Hub
Front: MDK DC511, sealed bearings, IS 6-bolt, 110x15mm, Rear: MDK GW, sealed bearings, IS 6-bolt, 148x12mm
Rims
MDK-EP1, 27mm internal width, tubeless ready, 32 hole, asymmetrical
Spokes
CN round stainless steel
Tires
Maxxis Ardent, dual compound, tubeless ready, Exo protection, 60tpi, folding, 27.5" x 2.4"
Brakes
Brakes
SRAM Level T, 180mm 6-bolt one-piece Centerline rotors, organic pads
Brake Levers
SRAM Level T, length adjust, Matchmaker compatible, ambidextrous lever mount
Cockpit
Stem
Onoff Stoic FG, 30mm length, 6061 forged aluminium, 31.8mm clamp
Handlebar
Onoff Notion 1.0, 6061 aluminum, double tapered, 20mm rise, 760mm width, 9° backsweep, 5° upsweep, 31.8mm clamp
Grips
Onoff Diamond, lock-on, 130mm
Headset
Onoff Saturn, tapered
Seat
Saddle
Mondraker Factor RR
Seatpost
Onoff Pija Dropper, S: 337mm length x 100mm travel, M/L/XL: 387mm length x 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.24 mm | 1.21 mm | 1.18 mm | 1.15 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Stack | 558 mm | 567 mm | 576 mm | 585 mm |
| Reach | 451 mm | 468 mm | 490 mm | 508 mm |
| Top Tube Length | 612 mm | 632 mm | 657 mm | 677 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1172 mm | 1193 mm | 1219 mm | 1240 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

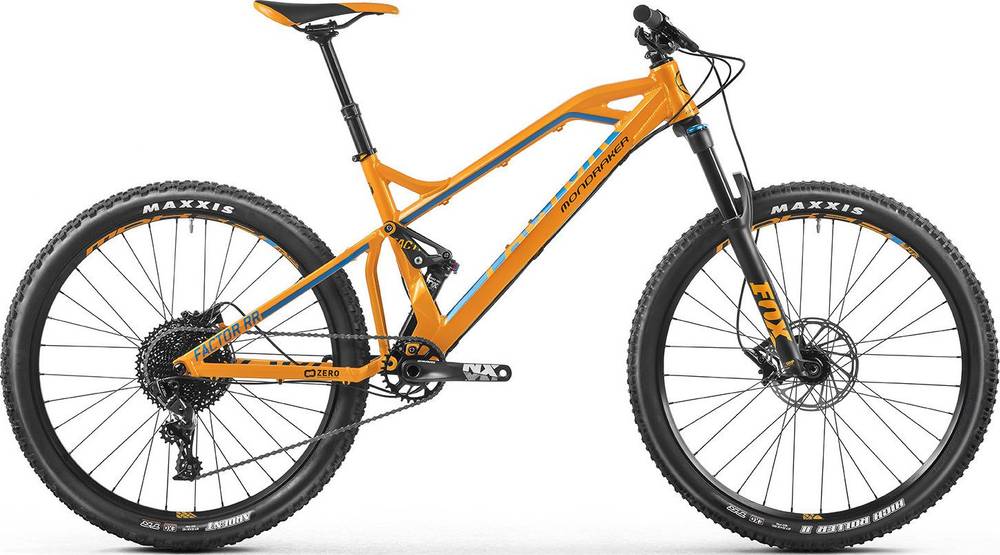

Factor RR belongs to the Mondraker Factor model. 11 bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Mondraker Factor 2018 is the cheapest bike model and costs 2625$. Mondraker Factor RR 2018 is the most expensive one and costs 3805$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2018 for 3805$. Doing a quick comparison, we notice that Factor RR price is 37.76% more expensive than the average cost of a Trail bike.
Factor RR components
Fork
The fork installed on this bike is the Fox Rhythm Float 34 model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the FOX Float DPS SV Performance model, with a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Factor RR bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Mondraker Factor RR has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Factor RR. Therefore, climbing or descending will be a breeze.
