Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Float FIT Grip EVOL Performance, 44mm offset
Rear Shock
FOX Float DPX2 LV EVOL Performance, 205x62.5mm, Trunnion mount
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-speed
Front Derailleur
None (1x only)
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM PG-1230 NX Eagle, 11-50 tooth, 12-speed
Crank
SRAM NX Eagle DUB, 170mm on S/M and 175mm on L/XL
Bottom Bracket
SRAM DUB BSA
Chain
SRAM NX Eagle, 12-speed
Chain Guide
None
Pedals
N/A
Wheels
Front Hub
DT Swiss 370 Boost
Rear Hub
DT Swiss 370 Boost
Rims
DT Swiss E1900 Spline 29, 30mm internal width, tubeless ready, 28 hole
Spokes
DT Swiss Champion straight pull
Tires
Maxxis Minion DHR II 2.4WT, Tubeless ready, 3C Maxx Terra, EXO, 60TPI, folding bead front and Maxxis Aggressor 2.3", Tubeless ready, 3C Maxx Terra, EXO, 60TPI, folding bead rear
Brakes
Brakes
Shimano MT520 with resin pads with 203mm RT66 6-bolt rotors
Brake Levers
Shimano MT501
Cockpit
Stem
Onoff Sulfur FG 30mm reach 0°, 6061 forged alloy, 31.8 mm clamp
Handlebar
OnOff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm clamp
Grips
Onoff Desert, 1lock-on, 135mm
Headset
Onoff Titan, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
Seat
Saddle
SDG Fly MTN, PU foam, Cr-Mo rails, Cordura sides
Seatpost
Onoff Pija, 337x100mm on S, 387x125mm on M, 425x150mm on L/XL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.31 mm | 1.28 mm | 1.26 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Stack | 602 mm | 611 mm | 625 mm | 639 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 603 mm | 626 mm | 651 mm | 675 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1184 mm | 1207 mm | 1233 mm | 1259 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm | 22 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

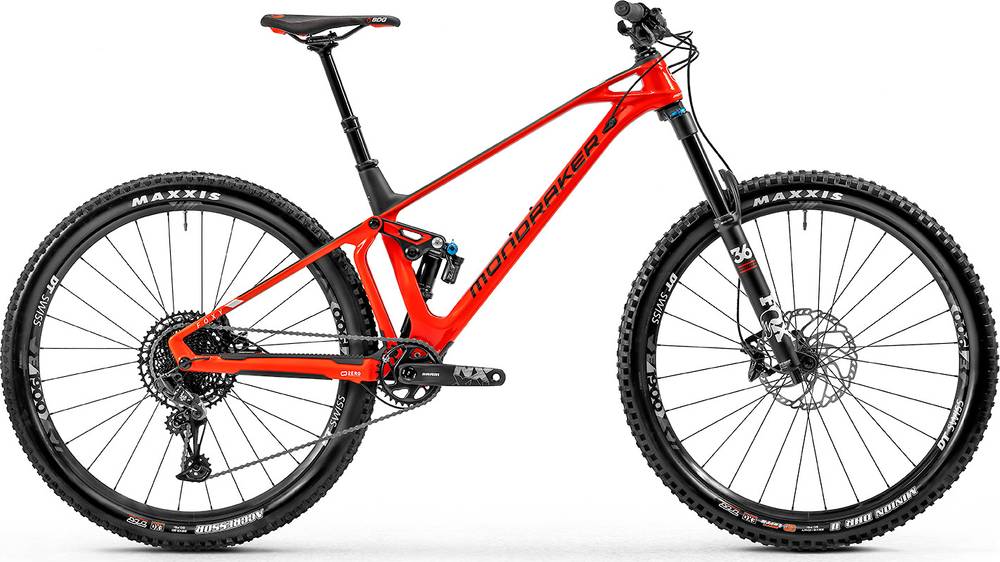

Foxy Carbon R is a Mondraker Foxy model. Mondraker released 33 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Enduro bikes average weight
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 14.1 kg (31.09 lbs), Mondraker bike is slightly lighter than average. In other words, this model is 1.21% lighter than the average Enduro bike.
Foxy Carbon R components
Fork
The Foxy Carbon R comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Float DPX2 LV EVOL Performance rear shock model, which has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Mondraker Foxy Carbon R 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Foxy Carbon R comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
