Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 36 Performance, GRIP damper, EVOL, 3-position lever with micro compression adjust, low-speed rebound adjust, 44mm offset
Rear Shock
FOX FLOAT DPX2 Performance, EVOL, 3-position compression lever, low-speed rebound adjust, trunnion mount, 205mm x 62.5mm
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-Actuation
Front Derailleur
None
Shift Levers
SRAM NX Eagle, 12-speed, Trigger, X-Actuation
Cassette
SRAM NX Eagle PG-1230, 12-speed, 11-50 tooth
Crank
SRAM NX Eagle DUB, 170mm length (SM/MD), 175mm length (LG/XL)
Bottom Bracket
SRAM DUB, sealed bearings, 73mm BSA threaded
Chain
SRAM NX Eagle, 12-speed, PowerLock
Chain Guide
None
Pedals
None
Wheels
Front Hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and HG driver
Rear Hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and HG driver
Rims
DT Swiss E1900 Spline, 30mm internal width, sleeved aluminum, tubeless ready, 28 hole
Spokes
DT Swiss Champion, straightpull
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.5" WT, Rear: Maxxis Aggressor, Dual Compound, EXO, TR, 60 TPI, folding bead, 29" x 2.3"
Brakes
Brakes
SRAM G2 R, 4-piston, SRAM CenterLine 6-bolt rotors (200mm front/180mm rear), steel-backed organic pads
Brake Levers
SRAM G2 R, tool-free reach adjust
Cockpit
Stem
ONOFF Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp
Handlebar
ONOFF Sulfur 1.0, double butted 6061 alloy, 20mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Grips
ONOFF Desert, 135mm length, single lock-on
Headset
ONOFF Titan, ACB sealed bearings
Seat
Saddle
SDG Bel-Air 3.0, LPU foam, steel rails
Seatpost
ONOFF Pija dropper, Drop: 100mm (SM), 125mm (MD), 150mm (LG), 170mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.31 mm | 1.28 mm | 1.26 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Stack | 602 mm | 611 mm | 625 mm | 639 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 603 mm | 626 mm | 651 mm | 675 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1184 mm | 1207 mm | 1233 mm | 1259 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm | 22 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

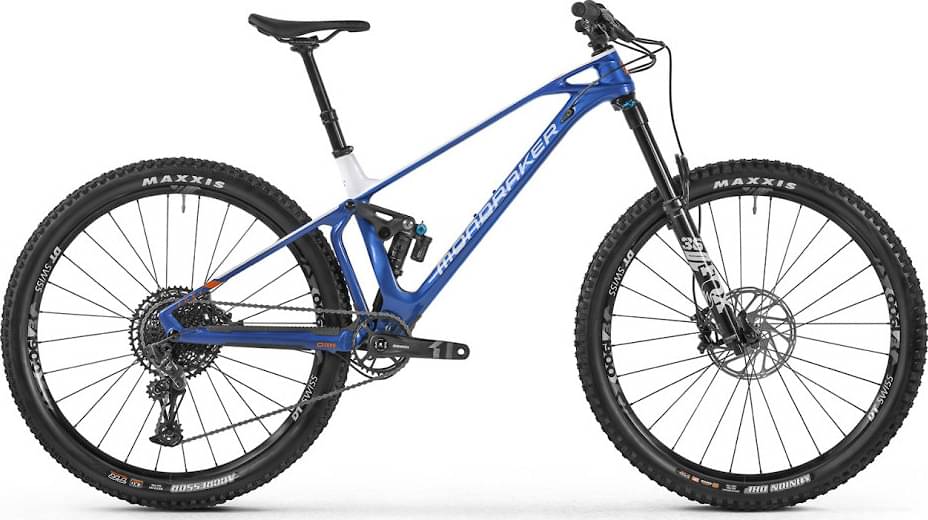

Model Overview
Foxy Carbon R completes the Mondraker Foxy model. 33 bikes variations carry this model name so far. You can easily view all of the Mondraker Foxy bikes models from 2021, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Enduro bikes average weight
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Mondraker Foxy Carbon R it’s weighing 14.5 kg (31.97 lbs). At this weight, is slightly heavier than average. In short, the average Enduro bike weight is 1.61% lower than this one.
Overview of components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is FOX FLOAT DPX2 Performance, with a travel distance of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Foxy Carbon R are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Foxy Carbon R has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Mondraker Foxy Carbon R bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Mondraker Foxy Carbon R comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
