Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Suspension Fork
Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Rear Shock
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Drivetrain
Rear Derailleur
SRAM NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift Levers
SRAM Trigger NX Eagle, 12s, X-Actuation 1:1
Crank
Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm, Rings: 32T, steel, X-Sync 2
Bottom Bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM NX Eagle, 12s, Powerlock
Wheels
Front Hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub
Rims
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Tires
Front: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Brakes
Brakes
Front: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Levers
SRAM G2 R, tool-free reach adjust
Cockpit
Stem
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
ONOFF Desert, 1lock-on, 135mm
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Seat
Saddle
SDG BEL-AIR 3.0, LPU foam, steel rails
Seatpost
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Fit data

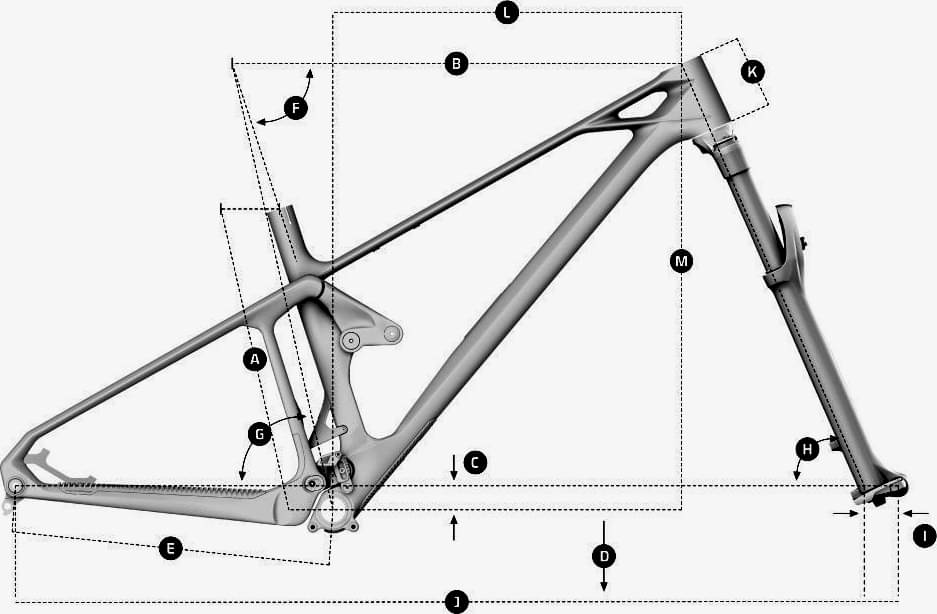

Geometry
Numbers for sizing and ride feel.
| Size | SM Low | MD Low | LG Low | XL Low |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.33 mm | 1.3 mm | 1.28 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 770 mm | 794 mm | 820 mm | 846 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 128 mm | 139 mm | 129 mm |
| Stack | 607 mm | 615 mm | 629 mm | 643 mm |
| Reach | 442 mm | 462 mm | 482 mm | 502 mm |
| Top Tube Length | 592 mm | 612 mm | 642 mm | 662 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 375 mm | 415 mm | 445 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 64.5 ° | 65 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1195 mm | 1219 mm | 1245 mm | 1271 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model
FOXY CARBON R is a Mondraker Foxy model. 33 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Enduro bikes average weight
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Mondraker FOXY CARBON R it’s weighing 14.9 kg (32.85 lbs). At this weight, is slightly heavier than average. In other words, this model is 4.41% heavier than the average Enduro bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float-X LV Performance rear shock model, which has a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the FOXY CARBON R model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Mondraker FOXY CARBON R is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
