Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Öhlins
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
Öhlins RXF 36 M.2, TTX18 Twin Tube cartridge damper, ramp chamber, high-speed compression lever with climb mode, low-speed compression adjust, rebound adjust, 44mm offset
Rear Shock
Öhlins TTX Air, high-speed compression lever with climb mode, low-speed compression adjust, rebound adjust, trunnion mount, 205mm x 62.5mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-Actuation
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed, Trigger, X-Actuation
Cassette
SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth
Crank
SRAM GX Eagle DUB, 170mm length (SM/MD), 175mm length (LG/XL)
Bottom Bracket
SRAM DUB, sealed bearings, 73mm BSA threaded
Chain
SRAM NX Eagle, 12-speed, PowerLock
Chain Guide
None
Pedals
None
Wheels
Front Hub
DT Swiss 350, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 36 tooth SL Ratchet freehub and XD driver
Rear Hub
DT Swiss 350, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 36 tooth SL Ratchet freehub and XD driver
Rims
DT Swiss EX1700 Spline, 30mm internal width, welded aluminum, tubeless ready, 28 hole
Spokes
DT Swiss Competition, straightpull
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.5" WT, Rear: Maxxis Aggressor, Dual Compound, EXO, TR, 60 TPI, folding bead, 29" x 2.3"
Brakes
Brakes
SRAM G2 RS, 4-piston, SRAM CenterLine 6-bolt rotors (200mm front/180mm rear), steel-backed organic pads
Brake Levers
SRAM G2 RS, SwingLink, tool-free reach adjust
Cockpit
Stem
ONOFF Krypton FG, 6061 forged alloy, 30mm length, 35mm bar clamp
Handlebar
ONOFF Kripton Carbon 0.5, 12.5mm rise, 780mm width, 9° backsweep, 5° upsweep, 35mm clamp diameter
Grips
ONOFF Desert, 135mm length, single lock-on
Headset
ONOFF Titan, ACB sealed bearings
Seat
Saddle
SDG Bel-Air 3.0, EVA foam, steel rails
Seatpost
ONOFF Pija dropper, Drop: 100mm (SM), 125mm (MD), 150mm (LG), 170mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.31 mm | 1.28 mm | 1.26 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Stack | 602 mm | 611 mm | 625 mm | 639 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 603 mm | 626 mm | 651 mm | 675 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1184 mm | 1207 mm | 1233 mm | 1259 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm | 22 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

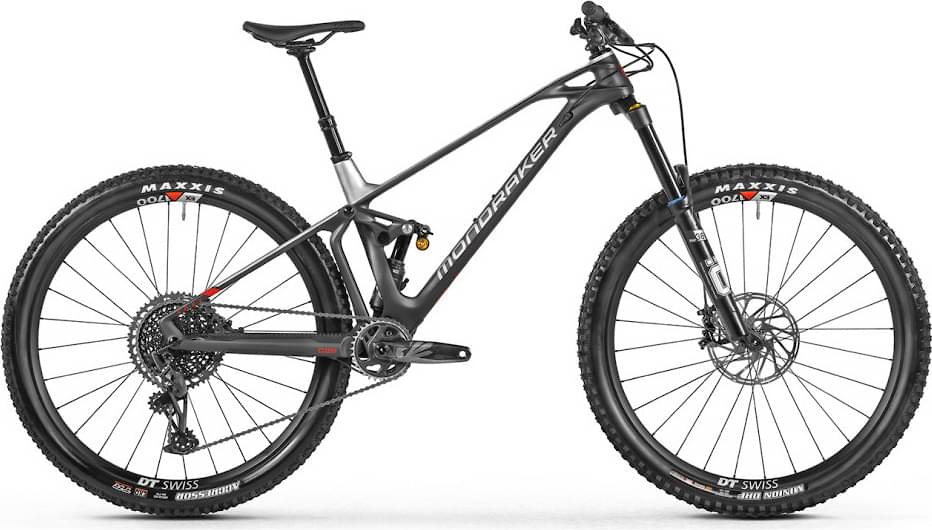

Foxy Carbon RR is part of the Mondraker Foxy model. Mondraker released 33 bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Enduro bikes average weight
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Mondraker Foxy Carbon RR it’s weighing 13.8 kg (30.42 lbs). At this weight, is slightly lighter than average. In short, the average Enduro bike weight is 3.41% higher than this one.
Foxy Carbon RR components
Fork
The Foxy Carbon RR comes factory-installed with the Öhlins fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the Öhlins TTX Air model, with a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Foxy Carbon RR 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Mondraker Foxy Carbon RR has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Mondraker Foxy Carbon RR bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Mondraker Foxy Carbon RR includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
