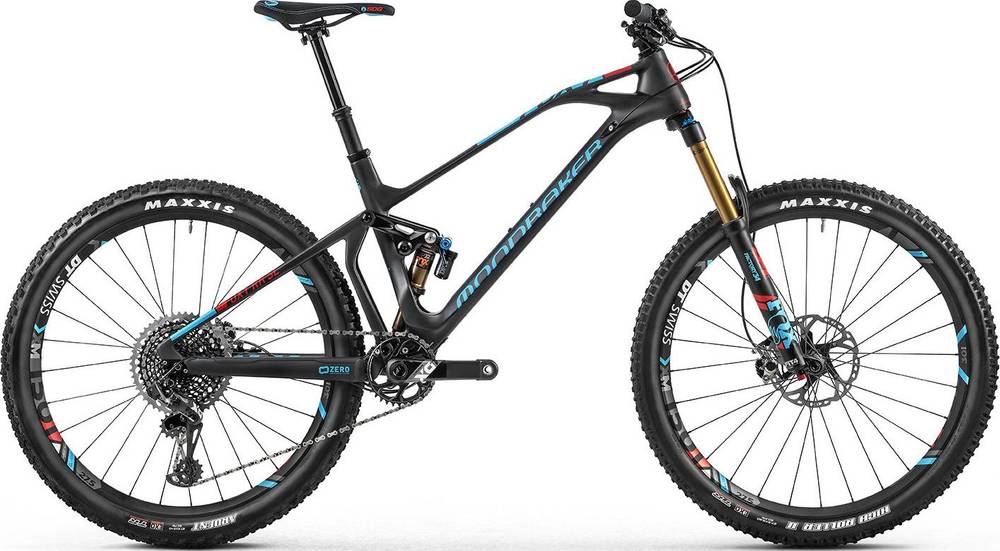

Mondraker Foxy Carbon RR SL 2018
2018 Mountain
Estimate price |
10,110$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Float FIT4 EVOL Factory Kashima, 110x15mm axle, rebound, compression with 3 positions and compression micro-adjustment at low-speed in open mode, air preload
Rear Shock
FOX Float DPX2 LV EVOL Factory Kashima, 205mm x 62.5mm, trunnion top mount, rebound, compression (3 positions), air preload
Drivetrain
Rear Derailleur
SRAM X01 Eagle, Type 3, roller bearing clutch, cage lock, 12-speed, carbon, long cage, X-Horizon system
Front Derailleur
N/A (1x-specific)
Shift Levers
SRAM Trigger X01 Eagle, carbon, 12-speed, X-Actuation, Zero Loss technology
Cassette
SRAM XG-1295, 10-50 tooth, 12-speed
Crank
SRAM X01 Eagle carbon, 24mm axle, 170mm length (S/M), 175mm length (L/XL), 168mm Q-factor
Bottom Bracket
SRAM GXP XR, sealed bearings, 73mm BSA
Chain
SRAM X01 Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Front: DT Swiss Spline One 240s, CL disc mount, 110x15mm, Rear: DT Swiss Spline One 240s, CL disc mount, XD driver, 148x12mm
Rear Hub
Front: DT Swiss Spline One 240s, CL disc mount, 110x15mm, Rear: DT Swiss Spline One 240s, CL disc mount, XD driver, 148x12mm
Rims
DT Swiss XM1501 Spline One, 30mm internal width
Spokes
DT Swiss competition, straight
Tires
Front: Maxxis High Roller II, tubeless ready, dual compound, Exo protection, 60tpi, folding, 27.5" x 2.3", Rear: Maxxis Ardent, dual compound, Exo protection, 60tpi, folding, 27.5" x 2.4"
Brakes
Brakes
Shimano XTR M9020, Ice-Tech resin pads, RT99 Ice-Tech CL 180mm rotors
Brake Levers
Shimano XTR M9020, Servo Wave stem adjustment, lever reach adjustment
Cockpit
Stem
Onoff Stoic FG, 30mm length, 6061 forged aluminium, 35mm clamp
Handlebar
Onoff Stoic Carbon, 13mm rise, 780mm width, 9° backsweep, 5° upsweep, 35mm clamp
Grips
Onoff Diamond, lock-on, 130mm
Headset
Onoff Saturn, tapered, ACB sealed bearings
Seat
Saddle
SDG Fly MTN Ti, high-density PU, cordura protection, titanium rails
Seatpost
FOX Transfer Performance Elite internal, S: 365mm length x 100mm travel, M: 406mm length x 125mm travel, L/XL: 456mm length x 150mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.27 mm | 1.24 mm | 1.22 mm | 1.19 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Stack | 581 mm | 590 mm | 608 mm | 617 mm |
| Reach | 457 mm | 477 mm | 497 mm | 517 mm |
| Top Tube Length | 613 mm | 635 mm | 660 mm | 683 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 150 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1186 mm | 1210 mm | 1238 mm | 1262 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Foxy Carbon RR SL is a Mondraker Foxy model. Mondraker released 33 bikes variations of this model so far. Take a sneak peek at all Mondraker Foxy bikes models from 2018, by clicking here.
Model range prices
Mondraker Foxy 2018 is the most affordable bike of this model and has a price of 3940$. On the other hand, Mondraker Foxy Carbon RR SL 2018, is the most expensive and costs 10110$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2018 for 10110$. Comparing this to the average Enduro bike price, we see that the price is 180.91% higher.
Foxy Carbon RR SL components
Fork
The Foxy Carbon RR SL comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Mondraker Foxy Carbon RR SL bike has the FOX Float DPX2 LV EVOL Factory Kashima model installed, and has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Foxy Carbon RR SL 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Mondraker Foxy Carbon RR SL comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
