Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 150mm -
Fork Öhlins RXF36
-
Groupset X01 Eagle -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included
Suspension Fork
Öhlins RXF 36 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Rear Shock
Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Drivetrain
Shift Levers
SRAM Trigger X01 Eagle, 12s, X-Actuation 1:1
Crank
SRAM X01 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Bottom Bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM GX Eagle, 12s, Powerlock
Wheels
Front Hub
DT 240, Boost 15x110mm, IS 6 bolts
Rear Hub
DT 240, Boost 12x148mm, 36T Ratchet EXP system, IS 6 bolts, XD freehub
Rims
DT Swiss EXC1501 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes
DT Competition, straightpull
Tires
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Brakes
Brakes
SRAM G2 RSC, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Levers
SRAM G2 RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Cockpit
Stem
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Diamond, 1lock-on, 135mm
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Seat
Saddle
SDG BEL-AIR 3.0, LPU foam, steel rails
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Frame size | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" |

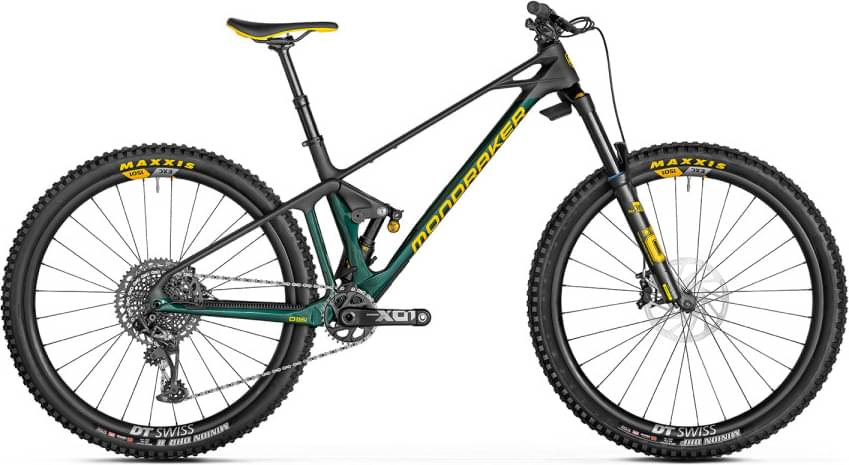

About this model
FOXY CARBON XR completes the Mondraker Foxy model. 33 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Enduro bikes average weight
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Mondraker FOXY CARBON XR it’s weighing 12.9 kg (28.44 lbs). At this weight, is considerably lighter than average. In conclusion, the average Enduro bike weighs 10.62% more than FOXY CARBON XR.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
Mondraker FOXY CARBON XR 2022 bike is equipped with the Öhlins RXF36 fork, and has 170mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Mondraker FOXY CARBON XR bike has the Öhlins TTX Air 205x65mm. Settings: high model installed, and has a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the FOXY CARBON XR bike is equipped with the 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the FOXY CARBON XR. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
