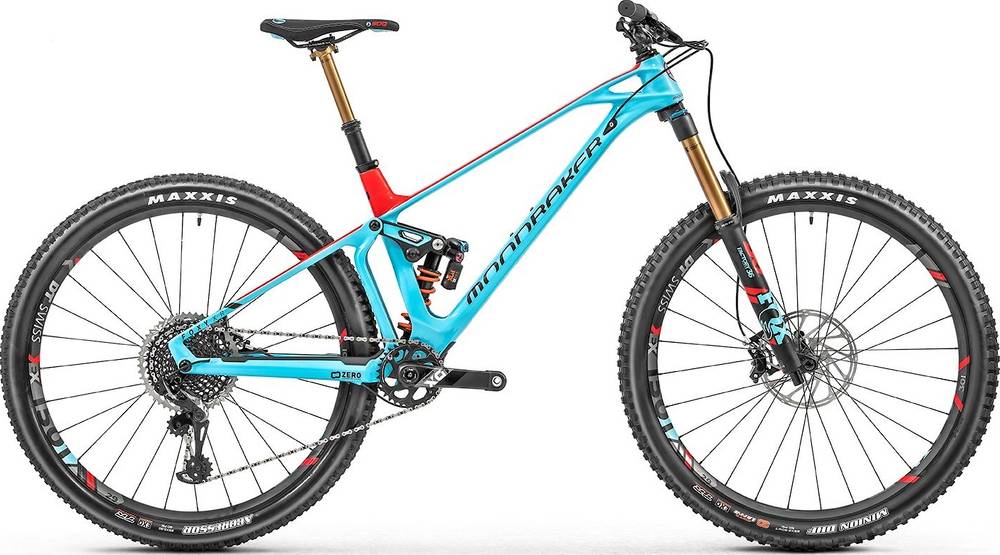

Mondraker Foxy Carbon XR 29 2019
2019 Mountain
Estimate price |
9,399$
Weight | 13.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 29 Float EVOL Factory, FIT GRIP2 damper, Kashima, 44mm offset, Boost
Rear Shock
FOX DHX2 Factory Coil, Kashima, Trunnion top mount, 2 position lever, 205mm x 62.5mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM XG-1295, 10-50 tooth, 12-speed
Crank
SRAM X01 Carbon Eagle, Boost, DUB axle, 170mm length (S-M), 175mm length (L-XL)
Bottom Bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss 240, Boost front and rear, IS 6-bolt, XD freehub, 36 tooth ratchet system
Rear Hub
DT Swiss 240, Boost front and rear, IS 6-bolt, XD freehub, 36 tooth ratchet system
Rims
DT Swiss EX1501 Spline One 29, 30mm internal width, tubeless ready, 28 hole
Spokes
DT Swiss
Tires
Front: Maxxis Minion DHF, 2.5" WT / tubeless ready / 3C MaxxTerra / EXO / 60TPI / folding bead, Rear: Maxxis Minion DHR II, 2.4" WT / tubeless ready / 3C MaxxTerra / EXO / 60TPI / folding bead
Brakes
Brakes
SRAM Code RSC with 200mm front / 180mm rear Centerline rotors, 4 piston, IS 6-bolt, steel-backed organic pads
Brake Levers
SRAM Code RSC, SwingLink and lever pivot berings, tools free reach and contact point adjust
Cockpit
Stem
Onoff Stoic FG, 6061 forged alloy, 30mm length, 35mm clamp
Handlebar
Onoff Stoic Carbon, 780mm width, 25mm rise, 9° backsweep, 5° upsweep, 35mm diameter
Grips
Onoff Diamond, lock-on, 130mm width
Headset
Onoff Titan, ACB sealed bearings
Seat
Saddle
SDG Fly MTN, PU foam, chromoly rails, Cordura sides
Seatpost
FOX Transfer Factory, Kashima, 100mm drop (S), 125mm drop (M-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.31 mm | 1.28 mm | 1.26 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 602 mm | 611 mm | 625 mm | 639 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 603 mm | 626 mm | 651 mm | 675 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1184 mm | 1207 mm | 1233 mm | 1259 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Foxy Carbon XR 29 completes the Mondraker Foxy model. Mondraker released 33 bikes variations of this model so far. You can easily view all of the Mondraker Foxy bikes models from 2019, here.
Model range prices
Mondraker Foxy 27.5 2019 is the most affordable bike of this model and has a price of 3931$. On the other hand, Mondraker Foxy Carbon XR 29 2019, is the most expensive and costs 9399$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Mondraker released this model in 2019, its price was 9399$. Comparing the average cost of an Enduro bike to this one, you will see that Foxy Carbon XR 29 price is 161.16% more expensive.
Average weight for Enduro bikes
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit lighter than average, Foxy Carbon XR 29 has a weight of 13.42 kg (29.59 lbs). In short, the average Enduro bike weight is 6.33% higher than this one.
Foxy Carbon XR 29 components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX DHX2 Factory Coil rear shock model, which has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Foxy Carbon XR 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Foxy Carbon XR 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Mondraker Foxy Carbon XR 29 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
