Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 16" -
Groupset Tourney, Shimano -
Suspension Rigid -
Drivetrain 1 × 6 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Leader 16 7005 Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger, BSA bottom bracket, QR 9mm rear axle
Suspension Fork
MDK 16 Kid, Alloy stanchions, Chromoly steering tube
Drivetrain
Rear Derailleur
Shimano TY200-SS, super short cage, 6s
Shift Levers
Shimano RV200-6R, Revoshift, 6s
Crank
Prowheel, 102mm, Rings: 32T
Bottom Bracket
CH-52
Chain
KMC Z-6, 6s
Pedals
Wellgo LU-P28
Wheels
Front Hub
Formula OV31FQR, 9x100mm QR axle, cup & cone ball bearings
Rear Hub
Formula OV31RQR, 9x135mm QR axle, cup & cone ball bearings
Rims
MDK-16 Alloy, 32 spokes
Spokes
CN round stainless steel
Tires
Front: Kenda Kaos 16x2.1, single compound, 30TPI, wire bead, Rear: Kenda Kaos 16x2.1, single compound, 30TPI, wire bead
Brakes
Brakes
Front: Tektro Alloy V-Brake, Rear: Tektro Alloy V-Brake
Brake Levers
Tektro 2-finger kids
Cockpit
Stem
MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0º, length: 35mm
Handlebar
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 500mm, 9º backsweep, 5º upsweep, 25.4mm barbore
Grips
Onoff Diamond, 75mm
Headset
CH-9280, Internal ZS, 44mm external diameter cup
Seat
Saddle
Mondraker Leader Kids series
Seatpost
MDK XC, 6061 T6 alloy, diameter 27.2mm, length 200mm, offset 15mm
Fit data

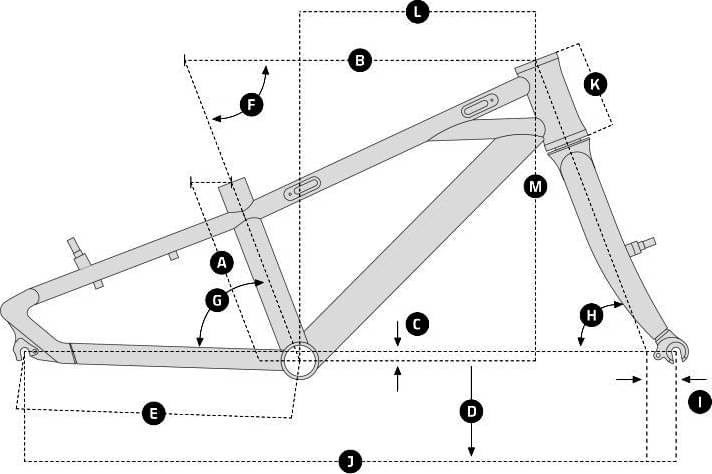

Geometry
Numbers for sizing and ride feel.
About this model
LEADER 16 is a Mondraker Leader model. 8 bikes variations carry this model name so far. Take a sneak peek at all Mondraker Leader bikes models from 2023, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Youth bikes average price
If you want an acceptable Youth bike you should know that the average price is 278$. However, even if your budget is less than the average, you might still be able to get a top-quality Youth bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Youth bikes average weight
The average weight for Youth bikes is 10.9 kg (24.03 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 8.4 kg (18.52 lbs), Mondraker bike is much lighter than average. In other words, this model is 29.76% lighter than the average Youth bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The wheels on LEADER 16 are the 16″ aluminum type. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
For your safety, it is important to have quality breaks on your bike. Mondraker LEADER 16 has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
