Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 180mm -
Travel Rear 170mm -
Fork Fox Performance Float 38
-
Groupset NX Eagle, Race Face -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube 750Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
Suspension Fork
Fox 38 29 Float FIT GRIP EVOL Performance, 180mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Rear Shock
Fox DHX2 Performance Elite, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings
Drivetrain
Shift Levers
SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Crank
Race Face Aeffect ebike, 165mm
Chain
SRAM SX Eagle, 12s, Powerlock
Wheels
Front Hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear Hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
Rims
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes
Mavic J-bend duble butted, contactless lacing
Tires
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Brakes
Brakes
SRAM G2 RS, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, organic pads
Brake Levers
SRAM G2 RS, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Cockpit
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Diamond, 1lock-on, 135mm
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Seat
Saddle
FIZIK Terra Aidon X5 145mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
Motor & Battery
Motor
Bosch Performance Line CX Cruise (25Km/h) Bosch Smart System
Battery
Bosch Powertube 750Wh
Remote
Bosch Kiox 300
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Frame size | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

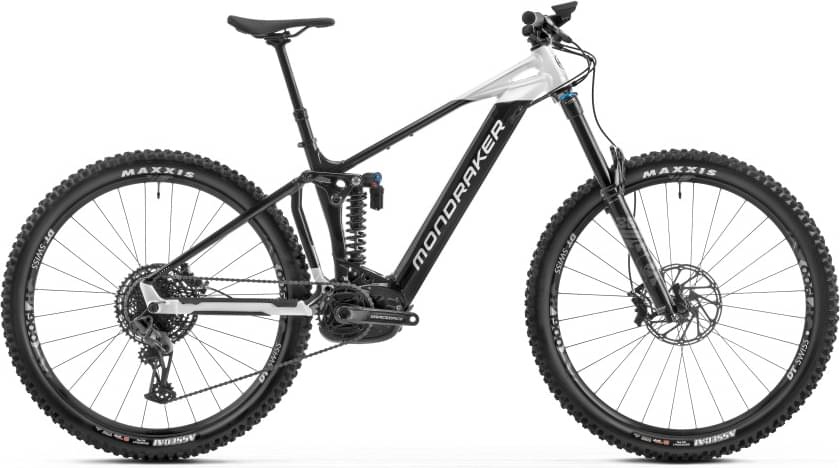

LEVEL R is a Mondraker E Level model. 9 e-bikes variations carry this model name so far. You can easily view all of the Mondraker E Level e-bikes models from 2022, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Mondraker LEVEL R it’s weighing 26.1 kg (57.54 lbs). At this weight, is considerably heavier than average. In other words, this model is 11.44% heavier than the average Enduro e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
LEVEL R components
Fork
The fork installed on this bike is the Fox Performance Float 38 model. The travel on this model is 180mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the Fox DHX2 Performance Elite model, with a travel of 170mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Mondraker LEVEL R 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The LEVEL R has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
Mondraker LEVEL R comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
