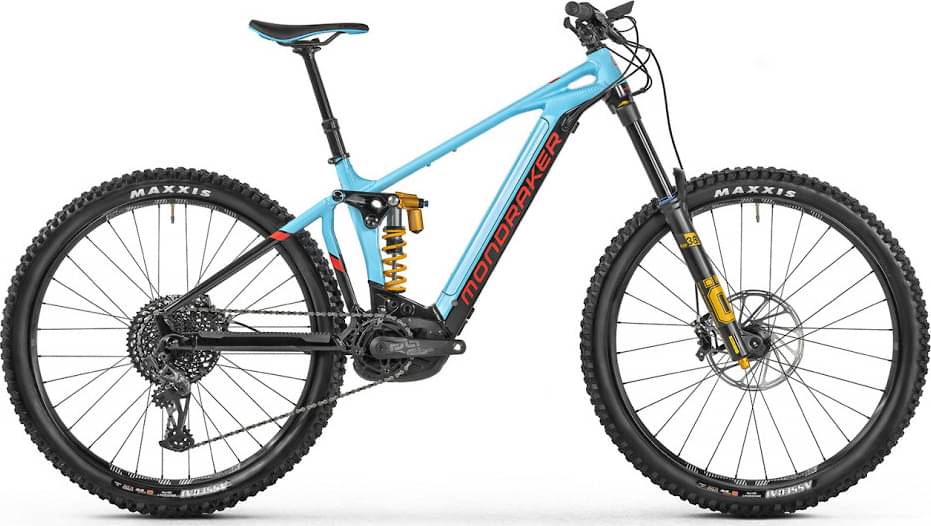

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 180mm -
Travel Rear 170mm -
Fork Öhlins
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube, integrated, removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Öhlins RXF 38, TTX18 Twin Tube cartridge damper, high speed compression lever with climb mode, low-speed compression adjust, rebound adjust, ramp chamber, 44mm offset
Rear Shock
Öhlins TTX22M, high speed compression lever with climb mode, low-speed compression adjust, rebound adjust, trunnion mount, Spring rates: 251lbs (SM), 297lbs (MD), 343lbs (LG), 411lbs (XL)
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-ACTUATION 1:1
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed, X-ACTUATION 1:1, single click
Cassette
SRAM NX Eagle PG-1230, 12-speed, 11-50 tooth
Crank
e*thirteen e*Spec Plus E-Bike, 165mm length
Chain
SRAM GX Eagle, 12-speed, with Powerlock
Chain Guide
None
Pedals
None
Wheels
Front Hub
e*thirteen, triple-sealed, fully machined aluminum, 15x110mm Boost front, 12x148mm Boost rear with 6° engagement freehub and HG driver
Rear Hub
e*thirteen, triple-sealed, fully machined aluminum, 15x110mm Boost front, 12x148mm Boost rear with 6° engagement freehub and HG driver
Rims
e*thirteen e*Spec Plus, 30mm internal width, hookless, 6069 welded aluminum, tubeless ready, 28 hole front, 32 hole rear
Spokes
e*thirteen custom J-bend, triple-butted alloy, alloy nipples, with nipple washers
Tires
Maxxis Assegai, 3C MaxxGrip, DH casing, TR, dual 60 TPI layers, folding bead, 29" x 2.5" WT
Brakes
Brakes
SRAM Code RSC, 4-piston, steel-backed metal sintered pads, SRAM CenterLine 6-bolt rotors (220mm front, 200mm rear)
Brake Levers
SRAM Code RSC, SwingLink and lever pivot bearings, tool-free reach and contact point adjust
Cockpit
Stem
Onoff Krypton FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp
Handlebar
Onoff Krypton Carbon 1.0, 25mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Grips
Onoff Desert, single lock-on, 135mm length
Headset
Onoff Saturn, sealed angular contact bearings
Seat
Saddle
SDG Bel-Air 3.0, EVA foam, alloy rails
Seatpost
Onoff Pija dropper, Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)
Motor & Battery
Motor
Bosch Performance Line CX Cruise Gen4
Battery
Bosch Powertube, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 357 mm | 357 mm | 357 mm | 357 mm |
| Stack | 629 mm | 629 mm | 649 mm | 649 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 599 mm | 619 mm | 644 mm | 664 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1247 mm | 1267 mm | 1287 mm | 1307 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Level RR is a Mondraker E Level model. 9 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Enduro e-bikes average weight
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 25.5 kg (56.22 lbs), Mondraker e-bike is a bit heavier than average. In conclusion, the average Enduro e-bike weighs 8.88% less than Level RR.
Overview of components
Fork
The Level RR comes factory-installed with the Öhlins fork. This has a travel range of 180mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Mondraker Level RR e-bike has the Öhlins TTX22M model installed, and has a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Level RR are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Mondraker Level RR is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Mondraker Level RR e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Mondraker Level RR includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
