Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Groupset microSHIFT, microSHIFT Mezzo -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery Mahle-Ebikemotion Internal 250Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Play 20 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Suspension Fork
MDK 20 Kid, Rigid alloy Stealth stanchions, Post Mount disc brake mount
Drivetrain
Rear Derailleur
Microshift M26S, 9s, short cage
Shift Levers
Microshift Mezzo TS39-9, 9s
Crank
Samox DM 28T steel, 114mm, Rings: 28T, steel
Bottom Bracket
BSA, 73mm
Chain
SRAM PC951 9s, Powerlock
Wheels
Front Hub
Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts
Rear Hub
Mahle-Ebikemotion X-35
Rims
MDK-XP1 20 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes
CN round stainless steel
Tires
Front: Kenda Booster 20x2.4 single compound 30TPI, wire bead, Rear: Kenda Booster 20x2.4 single compound 30TPI, wire bead
Brakes
Brakes
Front: SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers
SRAM Level, tooled reach adjust, lever pivot bushings
Cockpit
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Seat
Saddle
MDK Play 20
Seatpost
MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 250mm
Motor & Battery
Motor
Mahle-Ebikemotion X-35
Battery
Mahle-Ebikemotion Internal 250Wh
Fit data

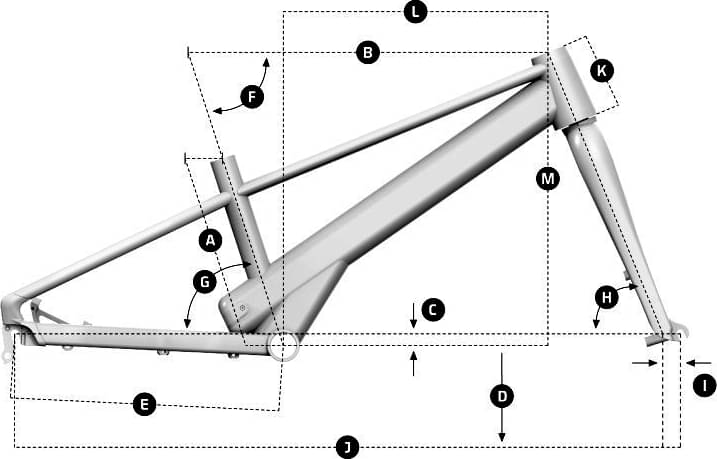

Geometry
Numbers for sizing and ride feel.
Model Overview
PLAY 20 is part of the Mondraker E Play model. Mondraker launched 9 e-bikes of this model so far. Take a sneak peek at all Mondraker E Play e-bikes models from 2023, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Youth e-bikes average price
If you want an acceptable Youth e-bike you should know that the average price is 1895$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Youth e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Youth e-bikes average weight
If we make a quick analysis of the average weight of a Youth e-bike, we get 17.49 kg (38.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 13 kg (28.66 lbs), the PLAY 20 model is much lighter than average. In other words, this model is 34.54% lighter than the average Youth e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
PLAY 20 components
Fork material
The fork on this e-bike is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
When it comes to wheels, the PLAY 20 e-bike is equipped with the 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
