Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 32 Float GRIP EVOL Step-Cast Performance, remote lockout, 44mm offset
Rear Shock
None
Drivetrain
Rear Derailleur
SRAM GX Eagle 12-speed
Front Derailleur
None
Shift Levers
SRAM GX Eagle 12-speed
Cassette
SRAM XG-1275 Eagle 10-50 tooth 12-speed
Crank
Truvativ Stylo 7K DUB Eagle, 170mm on S and 175mm on M/L/XL
Bottom Bracket
SRAM DUB PF30
Chain
SRAM GX Eagle 12-speed
Chain Guide
None
Pedals
N/A
Wheels
Front Hub
DT Swiss 350 Boost, 6-bolt
Rear Hub
DT Swiss 350 Boost, 6-bolt
Rims
DT Swiss X1700 Spline 29, 25mm internal width, tubeless ready, 28 hole
Spokes
DT Swiss Competition straight pull
Tires
Maxxis Ikon 29x2.2", 3C MaxxSpeed compound, tubeless ready, 120TPI, folding bead, front and rear
Brakes
Brakes
Shimano MT501, with 160mm RT56 IS 6-bolt rotors, resin pads
Brake Levers
Shimano MT501
Cockpit
Stem
Stealth Carbon Integrated, 31.8mm clamp, 75mm (S/M), 90mm (L), or 105mm (XL) reach
Handlebar
Onoff Sulfur 0.2, rise: 4.8mm, width: 760mm, 9° backsweep, 0° upsweep, 31.8mm clamp
Grips
Onoff Twin, 1lock-on, 135mm
Headset
Onoff Titan, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
Seat
Saddle
Fizik Antares R7
Seatpost
OnOff Sulfur 0-R, 6061 T6 Alloy, 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.53 mm | 1.5 mm | 1.48 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Stack | 632 mm | 637 mm | 646 mm | 661 mm |
| Reach | 397 mm | 415 mm | 432 mm | 447 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 395 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 85 mm | 90 mm | 100 mm | 115 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1081 mm | 1101 mm | 1122 mm | 1142 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 74 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

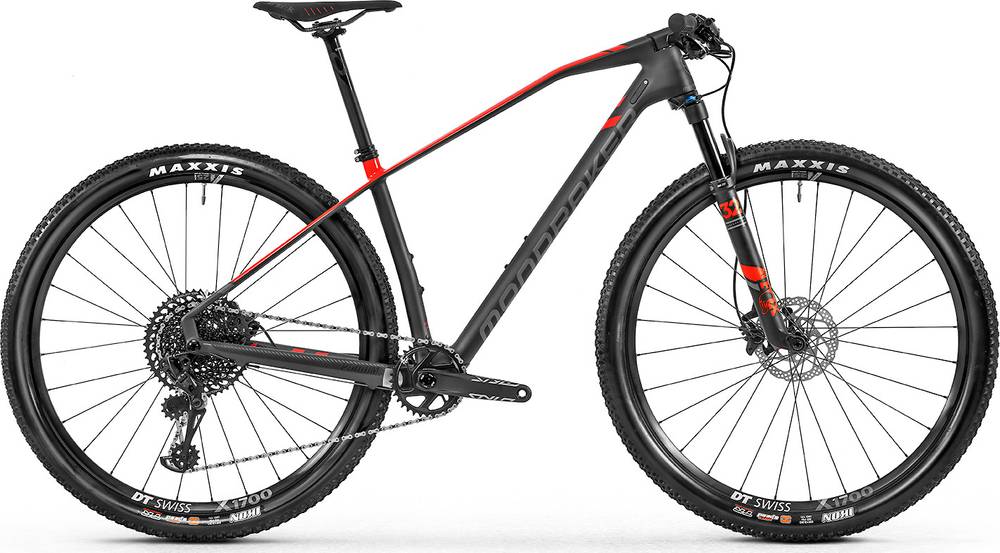

Model Overview
Podium Carbon R is a Mondraker Podium model. Mondraker released 12 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 9.7 kg (21.38 lbs), the Podium Carbon R model is much lighter than average. In other words, this model is 27.84% lighter than the average Crosscountry bike.
Overview of components
Fork
The Fox Performance Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the Podium Carbon R bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
