Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 32 29 Float FIT4 EVOL Step Cast Factory Kashima, tapered steerer tube,15x110mm Boost axle, remote lockout, 44mm offset, Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT M8100, SGS, Shadow+, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX M8100, Rapid Fire Plus, 12-speed
Cassette
Shimano SLX M7100 10-51 tooth Hyperglide+, 12-speed
Crank
Shimano XT M8100 Boost, Hollowtech II, Q-factor 172mm, size S: 170mm, size M/L/XL: 175mm
Bottom Bracket
Shimano XT MT800 BSA, 68/73mm
Chain
Shimano Deore M6100, 12-speed, Quick-link
Chain Guide
None
Pedals
None
Wheels
Front Hub
Front: DT Swiss 350, Boost 15x110mm, CenterLock, Rear: DT Swiss 350, Boost 12x148mm, 36-tooth SL Ratchet system, CenterLock, MS freehub
Rear Hub
Front: DT Swiss 350, Boost 15x110mm, CenterLock, Rear: DT Swiss 350, Boost 12x148mm, 36-tooth SL Ratchet system, CenterLock, MS freehub
Rims
DT Swiss XR 1700 Spline 29, 25mm internal width, welded aluminum, tubeless ready, 28 hole
Spokes
DT Swiss Competition, straightpull
Tires
Maxxis Ikon 29"x2.20", 3C MaxxSpeed compound, tubeless ready, 120 TPI, folding bead
Brakes
Brakes
Front: Shimano XT M8100, Rear: Shimano XT M8110, Flatmount, Shimano MT800 ICE-Tech 160mm CenterLock rotors, resin pads
Brake Levers
Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust
Cockpit
Stem
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5°, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm
Handlebar
ONOFF Helium Carbon 0.2, rise: 4.8mm, width: 740mm, 9° backsweep, 0° upsweep, 31.8mm barbore
Grips
ONOFF Twin, single lock-on, 135mm
Headset
ONOFF Titan tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
Seat
Saddle
fi'zi:k Antares R7
Seatpost
ONOFF Helium Carbon 0-R VFLEX, length 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.35 mm | 1.31 mm | 1.31 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Stack | 605 mm | 609 mm | 618 mm | 632 mm |
| Reach | 432 mm | 451 mm | 470 mm | 484 mm |
| Top Tube Length | 597 mm | 618 mm | 639 mm | 657 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 85 mm | 90 mm | 100 mm | 115 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1114 mm | 1135 mm | 1157 mm | 1177 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 74 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

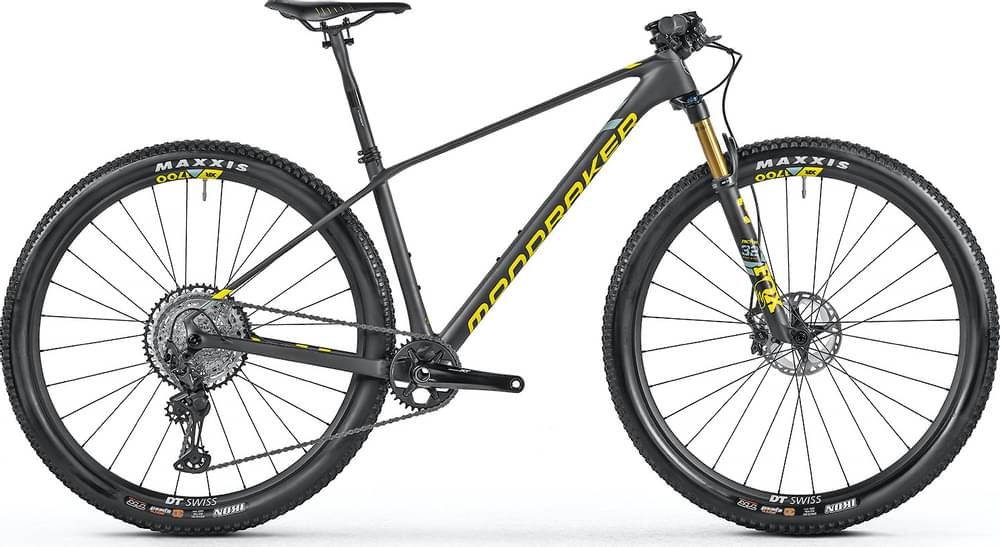

Podium Carbon R completes the Mondraker Podium model. 12 bikes variations carry this model name so far. You can easily view all of the Mondraker Podium bikes models from 2021, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Podium Carbon R components
Fork
Mondraker Podium Carbon R 2021 bike is equipped with the Fox Factory Float 32 fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Podium Carbon R model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Mondraker Podium Carbon R is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
