Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID SL Ultimate
-
Groupset X01 Eagle, GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox SID SL Ultimate RL 29, Charger Race Day, Debonair, Boost 15x110mm axle, 32mm aluminum stanchions, 44mm offset, Settings: OneLock 2-position remote compression (open/lock), low-speed rebound, air preload
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12-speed, X-Actuation 1:1
Front Derailleur
N/A
Shift Levers
SRAM Trigger GX Eagle, 12-speed, X-Actuation 1:1
Cassette
SRAM XG-1275, 10-50 tooth, 12-speed
Crank
SRAM X01 Carbon Eagle, Boost, DUB axle, size S: 170mm, size M/L/XL: 175mm
Bottom Bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM GX Eagle, 12-speed, Powerlock
Chain Guide
None
Pedals
None
Wheels
Front Hub
Front: Mavic Boost 15x110mm, IS 6 bolts, Rear: Mavic Boost 12x148mm, 24-tooth Ratchet system, IS 6 bolts, XD freehub
Rear Hub
Front: Mavic Boost 15x110mm, IS 6 bolts, Rear: Mavic Boost 12x148mm, 24-tooth Ratchet system, IS 6 bolts, XD freehub
Rims
Mavic Crossmax SLR Carbon 29, 26mm internal width, hookless, UST tubeless, 28 hole
Spokes
Mavic steel butted, bladed, straightpull
Tires
Maxxis Ikon 29"x2.20", 3C MaxxSpeed compound, tubeless ready, 120 TPI, folding bead
Brakes
Brakes
SRAM Level TLM, 2-piece caliper, Centerline 160mm IS 6-bolt one-piece rotors, steel-backed organic pads
Brake Levers
SRAM Level TLM, Direct Link actuation, tooled reach adjust, lever pivot bushings
Cockpit
Stem
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5°, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm
Handlebar
ONOFF Helium Carbon 0.2, rise: 4.8mm, width: 740mm, 9° backsweep, 0° upsweep, 31.8mm barbore
Grips
ONOFF Desert, single lock-on, 135mm
Headset
ONOFF Titan tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
Seat
Saddle
fi'zi:k Antares R7
Seatpost
ONOFF Helium Carbon 0-R VFLEX, length 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.35 mm | 1.31 mm | 1.31 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Stack | 605 mm | 609 mm | 618 mm | 632 mm |
| Reach | 432 mm | 451 mm | 470 mm | 484 mm |
| Top Tube Length | 597 mm | 618 mm | 639 mm | 657 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 85 mm | 90 mm | 100 mm | 115 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1114 mm | 1135 mm | 1157 mm | 1177 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 74 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

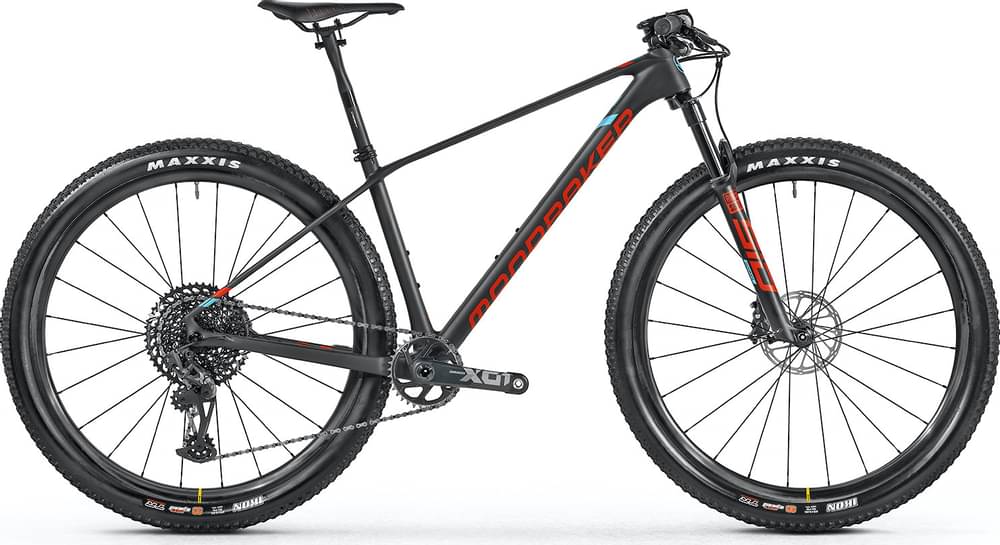

Podium Carbon RR completes the Mondraker Podium model. Mondraker launched 12 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Podium Carbon RR components
Fork
The RockShox SID SL Ultimate is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When leaving the production line, the Podium Carbon RR model has 29″ carbon wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Podium Carbon RR has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
