Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID SL Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox SID SL Ultimate RL 29, Charger Race Day, Debonair, Boost 15x110mm axle, 32mm aluminum stanchions, 44mm offset, Settings: OneLock 2-position remote compression (open/lock), low-speed rebound, air preload
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12-speed, X-actuation 1:1
Front Derailleur
N/A
Shift Levers
SRAM Eagle AXS, 12-speed
Cassette
SRAM XG-1299 10-50 tooth, 12-speed
Crank
SRAM XX1 Eagle, Boost, DUB axle, size S: 170mm, size M/L/XL: 175mm
Bottom Bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM XX1 Eagle, 12-speed, Powerlock
Chain Guide
None
Pedals
None
Wheels
Front Hub
Front: Mavic Boost 15x110mm, IS 6 bolts, Rear: Mavic Boost 12x148mm, 24-tooth Ratchet system, IS 6 bolts, XD freehub
Rear Hub
Front: Mavic Boost 15x110mm, IS 6 bolts, Rear: Mavic Boost 12x148mm, 24-tooth Ratchet system, IS 6 bolts, XD freehub
Rims
Mavic Crossmax SL Ultimate Carbon 29, 25mm internal width, hookless, UST tubeless, 28 hole
Spokes
Mavic ultralight, bladed, straightpull
Tires
Maxxis Ikon 29"x2.20", 3C MaxxSpeed compound, tubeless ready, 120 TPI, folding bead
Brakes
Brakes
SRAM Level Ultimate, 2-piece caliper, Centerline 160mm IS 6-bolt one-piece rotors, steel-backed organic pads, titanium hardware
Brake Levers
SRAM Level Ultimate, carbon lever, Direct Link actuation, tooled reach adjust, lever pivot bearings, titanium hardware
Cockpit
Stem
ONOFF Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-5°, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm
Handlebar
ONOFF Helium Carbon 0.2, rise: 4.8mm, width: 740mm, 9° backsweep, 0° upsweep, 31.8mm barbore
Grips
Lizard Skins DSP, 30.3mm
Headset
ONOFF Titan tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
Seat
Saddle
fi'zi:k Antares R7
Seatpost
ONOFF Helium Carbon 0-R VFLEX, length 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.35 mm | 1.31 mm | 1.31 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Stack | 605 mm | 609 mm | 618 mm | 632 mm |
| Reach | 432 mm | 451 mm | 470 mm | 484 mm |
| Top Tube Length | 597 mm | 618 mm | 639 mm | 657 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 85 mm | 90 mm | 100 mm | 115 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1114 mm | 1135 mm | 1157 mm | 1177 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 74 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

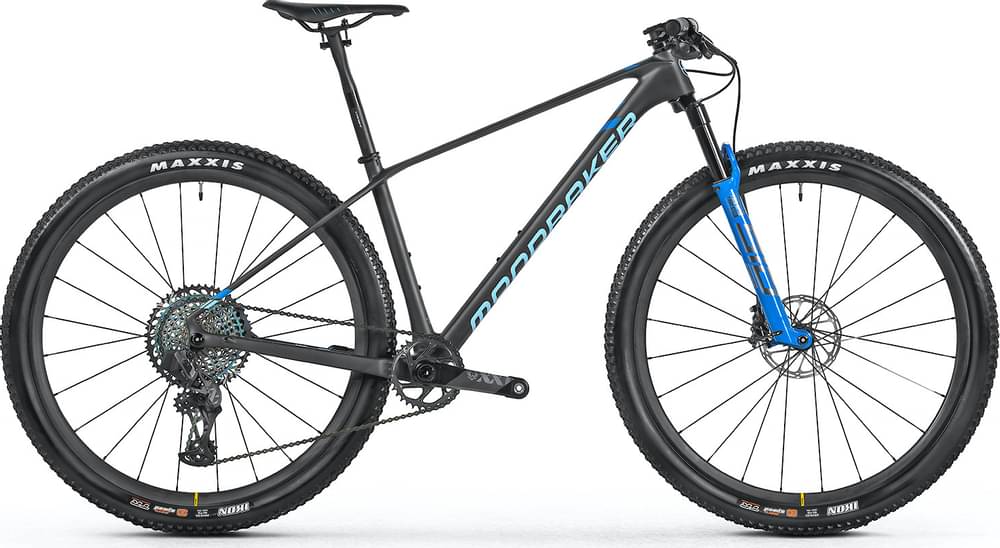

Podium Carbon RR SL completes the Mondraker Podium model. Mondraker launched 12 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Podium Carbon RR SL components
Fork
This bike has the RockShox SID SL Ultimate fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
As for the wheels, Mondraker Podium Carbon RR SL 2021, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Mondraker Podium Carbon RR SL has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
