Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 130mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Suspension Fork
RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Rear Shock
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 25x8mm bottom bushings
Drivetrain
Rear Derailleur
SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift Levers
SRAM Trigger SX Eagle, 12s, X-Actuation 1:1
Crank
SRAM SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm, Rings: 32T, steel, X-Sync 2
Bottom Bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM SX Eagle, 12s, Powerlock
Wheels
Front Hub
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear Hub
Formula DHT148 Boost 12x148mm, sealed bearings, IS 6 bolts
Rims
MDK-EP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes
CN round stainless steel
Tires
Front: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Brakes
Brakes
Front: SRAM Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers
SRAM Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Cockpit
Stem
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
ONOFF Twin, 1lock-on, 135mm
Headset
ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Seat
Saddle
MDK series PU 2023
Seatpost
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Fit data

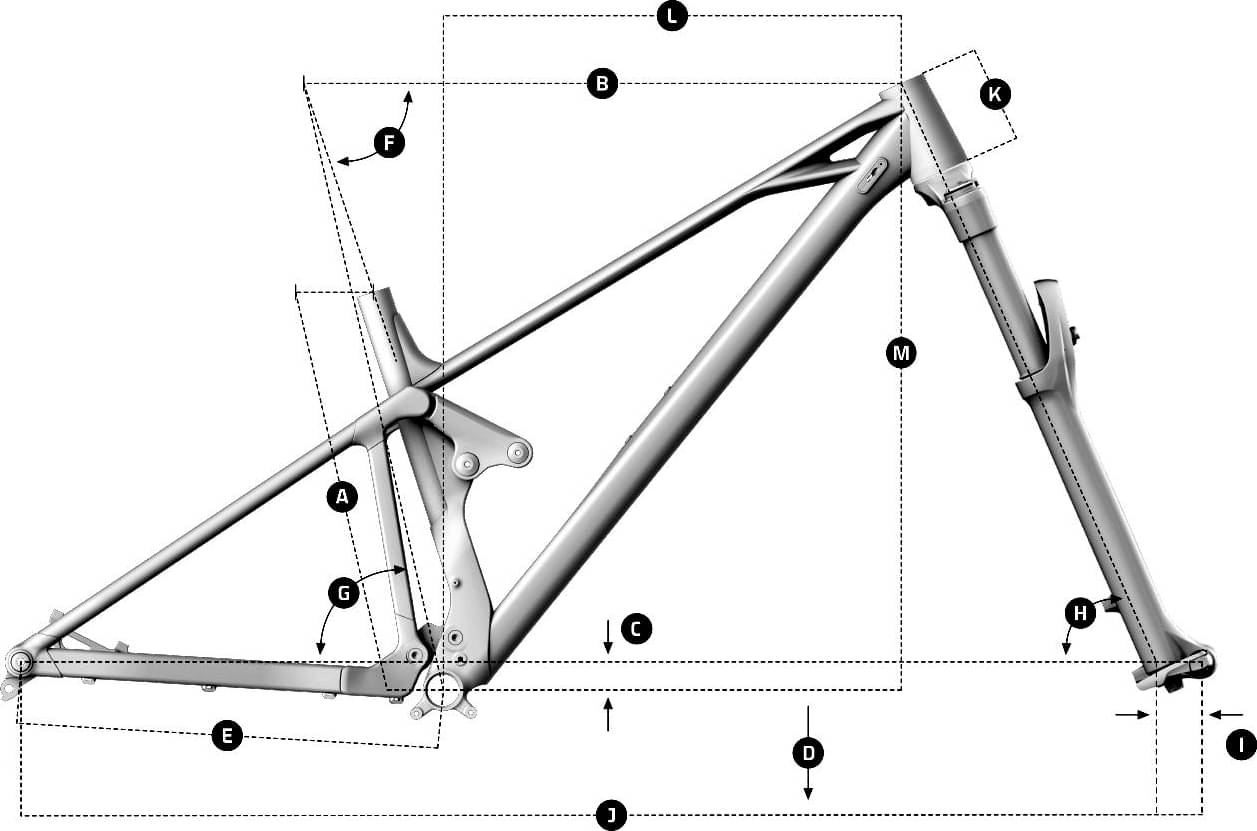

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 764 mm | 783 mm | 812 mm | 832 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 129 mm | 129 mm | 128 mm | 128 mm |
| Stack | 615 mm | 615 mm | 633 mm | 633 mm |
| Reach | 442 mm | 462 mm | 482 mm | 502 mm |
| Top Tube Length | 586 mm | 606 mm | 630 mm | 650 |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 375 mm | mm | 445 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1189 mm | 1208 mm | 1238 mm | 1258 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
RAZE is a Mondraker Raze model. Mondraker released 8 bikes variations of this model so far. Take a sneak peek at all Mondraker Raze bikes models from 2023, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 15.9 kg (35.05 lbs), the RAZE model is much heavier than average. To sum up, it’s 22.5% heavier than the average weight of Trail bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This bike has the RockShox 35 Gold RL fork installed. The fork’s travel is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
RAZE has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Rear Shock
The shock that’s installed on this bike is Fox Float DPS LV EVOL Performance, with a travel distance of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Mondraker RAZE 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The RAZE comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Mondraker RAZE bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Mondraker RAZE includes a dropper post. Therefore, climbing or descending will be a breeze.
