Mondraker RAZE CARBON RR SL 2024
2024 Mountain
Estimate price |
13,649$
Weight | 13.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Suspension Fork
Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Rear Shock
Fox Float Factory Kashima EVOL, 205x57.5mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Drivetrain
Rear Derailleur
SRAM XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Shift Levers
SRAM Eagle AXS Pod MMX, 12s
Crank
SRAM XX Carbon Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55, Rings: 32T, CNC-machined alloy, T-Type
Bottom Bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM X0 Eagle T-Type, 12s, Powerlock
Wheels
Front Hub
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear Hub
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Rims
Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes
Mavic 24 straight-pull double butted spokes
Tires
Front: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Brakes
Brakes
Front: SRAM Level Ultimate Stealth, 4-piston caliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM Level Ultimate Stealth, 4-piston caliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Levers
SRAM Level Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever
Cockpit
Stem
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Seat
Saddle
Fizik Vento Argo X5
Seatpost
RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Fit data

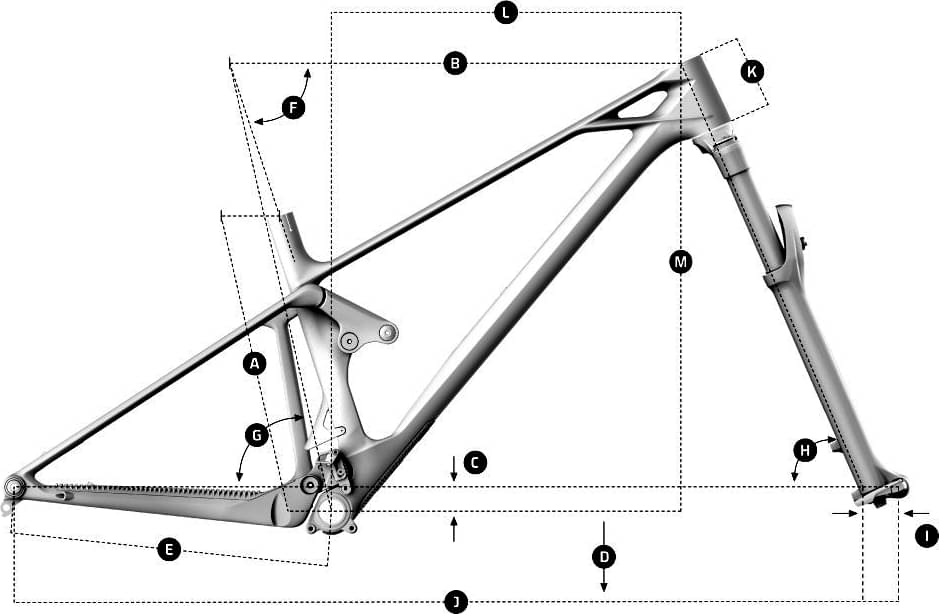

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.336 mm | 1.299 mm | 1.275 mm | 1.252 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 760 mm | 784 mm | 810 mm | 836 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 157 mm | 131 mm |
| Stack | 608 mm | 617 mm | 631 mm | 645 mm |
| Reach | 455 mm | 475 mm | 495 mm | 515 mm |
| Top Tube Length | 595 mm | 620 mm | 645 mm | 670 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 375 mm | 415 mm | 445 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1193 mm | 1217 mm | 1243 mm | 1269 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | -30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
RAZE CARBON RR SL belongs to the Mondraker Raze model. There are 13 bikes that carry this model name. Take a sneak peek at all Mondraker Raze bikes models from 2024, by clicking here.
Model range prices
Mondraker RAZE 2024 is the most affordable bike of this model and has a price of 3652$. On the other hand, Mondraker RAZE CARBON RR SL 2024, is the most expensive and costs 12421$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 12421$. If we compare this with the average Trail bike cost we notice that the price is 349.71% higher.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
RAZE CARBON RR SL weighs 13.3 kg (29.32 lbs) and is slightly heavier than the average. In conclusion, the average Trail bike weighs 2.47% less than RAZE CARBON RR SL.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The RAZE CARBON RR SL comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is Fox Float Factory Kashima EVOL, with a travel distance of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the RAZE CARBON RR SL model has 29″ carbon wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Mondraker RAZE CARBON RR SL bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Mondraker model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
