Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 36
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Suspension Fork
Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Rear Shock
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 25x8mm bottom bushings
Drivetrain
Rear Derailleur
SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift Levers
SRAM Trigger NX Eagle, 12s, X-Actuation 1:1
Crank
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm, Rings: 32T, CNC-machined alloy, X-SYNC 2
Bottom Bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM NX Eagle, 12s, Powerlock
Wheels
Front Hub
Infinity hub, Boost 15x110mm, IS 6 bolts
Rear Hub
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts
Rims
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes
24 straight-pull double butted spokes
Tires
Front: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Brakes
Brakes
Front: SRAM G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Levers
SRAM G2 R, tool-free reach adjust
Cockpit
Stem
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
ONOFF Twin, 1lock-on, 135mm
Headset
ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Seat
Saddle
MDK series PU 2023
Seatpost
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Fit data

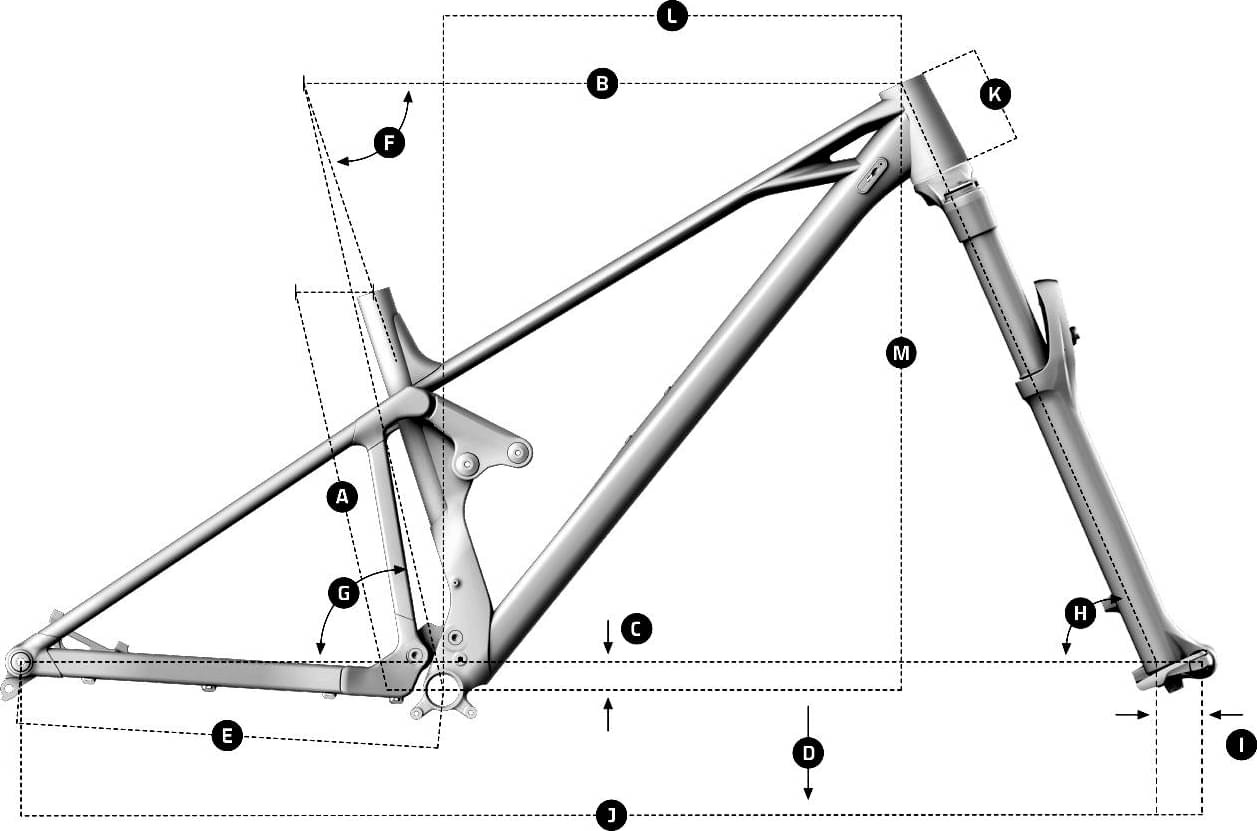

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 764 mm | 783 mm | 812 mm | 832 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 129 mm | 129 mm | 128 mm | 128 mm |
| Stack | 615 mm | 615 mm | 633 mm | 633 mm |
| Reach | 442 mm | 462 mm | 482 mm | 502 mm |
| Top Tube Length | 586 mm | 606 mm | 630 mm | 650 |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 375 mm | mm | 445 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1189 mm | 1208 mm | 1238 mm | 1258 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
RAZE R completes the Mondraker Raze model. Mondraker released 8 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 14.9 kg (32.85 lbs), Mondraker bike is considerably heavier than average. In conclusion, the average Trail bike weighs 14.79% less than RAZE R.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
RAZE R components
Fork
This bike has the Fox Rhythm Float 36 fork installed. The fork’s travel is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the Fox Float DPS LV EVOL Performance model, with a travel of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the RAZE R model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The RAZE R comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Mondraker RAZE R bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Mondraker model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
