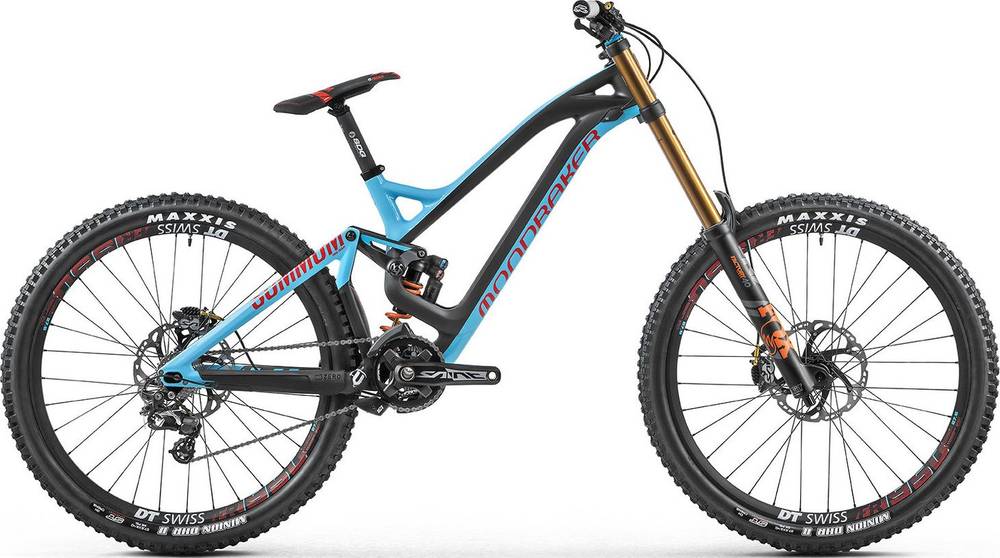

Mondraker Summum Carbon Pro Team 2018
2018 Mountain
Estimate price |
10,240$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 205mm -
Fork Fox Factory Float 40
-
Groupset Saint -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 40 Float FIT EVOL Factory Kashima, air spring, 20mm axle, high and low-speed compression, rebound, air preload, 1.125" straight steerer
Rear Shock
FOX DHX2 Factory Kashima, 222mm x 70mm, high and low-speed compression, high and low-speed rebound, spring preload, Super Light Steel (SLS) spring, S: 450lbs, M: 500lbs, L/XL: 550lbs
Drivetrain
Rear Derailleur
Shimano Saint RD-M820-SS, 10-speed, Shadow Plus technology, short cage
Front Derailleur
N/A (1x-specific)
Shift Levers
Shimano Saint SL-M820, 10-speed, low friction dual sealed bearings, Multi Release
Cassette
Shimano Ultegra CS-HG6700, 11-25 tooth, 10-speed
Crank
Shimano Saint M825, Hollowtech II technology, 165mm length
Bottom Bracket
Shimano 83mm BSA
Chain
Shimano HG95, 10-speed
Chain Guide
e*thirteen LG1R carbon, IFD DMB (Direct Mount Bashguard) Gen 2 Stealth Idler, aluminum hardware, adjustable/replaceable lower armature, solvent-resistant polycarbonate, larger ISCG05 mount holes, adjustable upper slider
Pedals
N/A
Wheels
Front Hub
DT Swiss Classic 240, IS 6-bolt, 110x20mm front, 150x12mm rear
Rear Hub
DT Swiss Classic 240, IS 6-bolt, 110x20mm front, 150x12mm rear
Rims
DT Swiss FR1950, 33mm external width, tubeless ready, 32 hole
Spokes
DT Swiss competition, black
Tires
Maxxis Minion DHR II, Super Tacky compound, wire bead, 27.5" x 2.4"
Brakes
Brakes
Shimano Saint M820, 4-piston caliper, RT86 2-piece 6-bolt 203mm rotors with ICE technology, resin pads with cooler
Brake Levers
Shimano Saint, ICE technology, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust
Cockpit
Stem
Onoff Stoic DH Integrated FG, 20-30mm adjustable length, 6061 aluminium, 31.8mm clamp
Handlebar
Renthal Fatbar series 7 alloy, 30mm rise, 780mm width, 7° backsweep, 5° upsweep, 31.8mm clamp
Grips
Renthal, double lock-on, kevlar, 130mm
Headset
Internal Onoff Mercurium 1.5 ZS, ACB sealed bearings, 56mm external diameter
Seat
Saddle
SDG I-beam I-Fly 2.0, EVA, high-grade microfibre, kevlar protection
Seatpost
SDG I-Beam SP-951, carbon, 300mm length, micro-adjustment
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.415 mm | 1.371 mm | 1.295 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 597 mm | 597 mm | 606 mm | 606 mm |
| Reach | 397 mm | 422 mm | 442 mm | 468 mm |
| Top Tube Length | 575 mm | 600 mm | 622 mm | 647 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 112 mm | 112 mm | 122 mm | 122 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1200 mm | 1225 mm | 1250 mm | 1280 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Summum Carbon Pro Team is part of the Mondraker Summum model. Mondraker released 35 bikes variations of this model so far. You can easily view all of the Mondraker Summum bikes models from 2018, here.
Model range prices
The most economical model, the Mondraker Summum 2018 has a starting price of 4335$. Mondraker Summum Carbon Pro Team 2018 on the other hand is the most expensive at 10240$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Downhill bikes average price
According to our math, the average price for a trustworthy Downhill bike is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2018 and its price was 10240$. If we compare this with the average Downhill bike cost we notice that the price is 201.98% higher.
Overview of components
Fork
This bike has the Fox Factory Float 40 fork installed. The fork’s travel is 203mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Summum Carbon Pro Team has a rear shock with a travel of 205mm. The model FOX DHX2 Factory Kashima is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Summum Carbon Pro Team are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Mondraker Summum Carbon Pro Team has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
