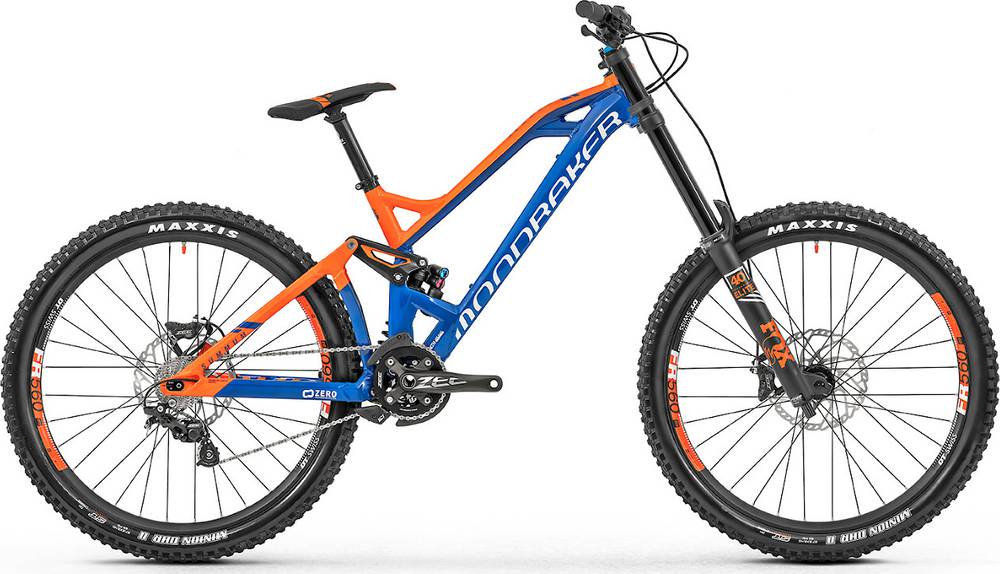

Mondraker Summum Pro 2019
2019 Mountain
Estimate price |
6,120$
Weight | 16.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 205mm -
Fork Fox Performance Elite Float 40
-
Groupset Zee -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 40 27.5 Float GRIP EVOL Performance Elite, air spring, 1-1/8” steerer tube, 20mm x 110mm axle. Settings: low-speed compression, low-speed rebound, air preload.
Rear Shock
FOX DHX2 Performance Elite, 222mm x 70mm. Settings: low-speed compression, low-speed rebound, spring preload. S: 450lbs, M: 500lbs, L/XL: 550lbs
Drivetrain
Rear Derailleur
Shimano Zee RD-M640-SS, 10-speed, Shadow Plus technology, short cage
Front Derailleur
N/A
Shift Levers
Shimano Zee SL-M640, 10-speed, 2-way release
Cassette
Shimano CS-HG500-10, 11-25 tooth, 10-speed
Crank
Shimano Zee M640, alloy, reinforced steel axle, 165mm length
Bottom Bracket
Shimano 73mm
Chain
Shimano HG54, 10-speed
Chain Guide
e*thirteen LG1+, DMB (Direct Mount Bashguard) Gen 2 Stealth Idler, aluminum hardware, adjustable/replaceable lower armature, solvent-resistant polycarbonate, adjustable upper slider
Pedals
N/A
Wheels
Front Hub
Front: MDK Disc Pro DH, 20mm x 110mm, IS 6-bolt, Rear: MDK Disc Pro DH, 12mm x 150mm, sealed bearings, IS 6-bolt
Rear Hub
Front: MDK Disc Pro DH, 20mm x 110mm, IS 6-bolt, Rear: MDK Disc Pro DH, 12mm x 150mm, sealed bearings, IS 6-bolt
Rims
DT Swiss FR560 27.5, 30mm internal width, tubeless ready, 32-hole
Spokes
CN stainless steel butted 2.0-1.8-2.0
Tires
Maxxis Minion DHR II 27.5" x 2.4", Super Tacky compound, wire bead
Brakes
Brakes
Shimano Zee M640, 4-piston caliper, RT66 203mm IS 6-bolt rotors, resin pads
Brake Levers
Shimano Zee, ergonomic anti-skid lever with servo wave, tool-free reach adjust
Cockpit
Stem
Onoff Stoic DH Integrated FG, 20-30mm adjustable length, 31.8mm clamp, 6061 alloy
Handlebar
Mondraker double butted 6061 alloy, 25mm rise, 780mm width, 9º backsweep, 5º upsweep, 31.8mm clamp
Grips
Onoff Diamond, lock-on, 130mm
Headset
Onoff Mercurium 1.5 ZS, ACB sealed bearings, 56mm external diameter
Seat
Saddle
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Seatpost
SDG Micro I-Beam SP-751 alloy, 300mm length, micro-adjustment
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.415 mm | 1.371 mm | 1.295 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 597 mm | 597 mm | 606 mm | 606 mm |
| Reach | 397 mm | 422 mm | 442 mm | 468 mm |
| Top Tube Length | 575 mm | 600 mm | 622 mm | 647 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 112 mm | 112 mm | 122 mm | 122 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1200 mm | 1225 mm | 1250 mm | 1280 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Summum Pro completes the Mondraker Summum model. 35 bikes variations carry this model name so far. You can easily view all of the Mondraker Summum bikes models from 2019, here.
Model range prices
The most economical model, the Mondraker Summum 2019 has a starting price of 4690$. Mondraker Summum Carbon Pro Team 2019 on the other hand is the most expensive at 10292$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Downhill bikes average price
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Mondraker released this model in 2019, its price was 6120$. In conclusion, this bike price is 80.48% more expensive than the price of the average Downhill bike.
Downhill bikes average weight
Downhill bikes have an average weight of 15.89 kg (35.03 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 16.7 kg (36.82 lbs), Mondraker bike is a bit heavier than average. In conclusion, the average Downhill bike weighs 5.1% less than Summum Pro.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Elite Float 40 model. The travel on this model is 203mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Summum Pro has a rear shock with a travel of 205mm. The model FOX DHX2 Performance Elite is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Summum Pro bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
