Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Float 38
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 38 Performance, GRIP damper, EVOL, 3-position lever with micro compression adjust, low-speed rebound adjust, 44mm offset
Rear Shock
FOX FLOAT X2 Performance, EVOL, Open/Firm lever, low-speed compression adjust, low-speed rebound adjust, trunnion mount, 205mm x 65mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-Actuation
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed, Trigger, X-Actuation
Cassette
SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth
Crank
Truvativ Descendant 7K Eagle DUB, 170mm length (SM/MD), 175mm length (LG/XL)
Bottom Bracket
SRAM DUB, sealed bearings, 73mm BSA threaded
Chain
SRAM NX Eagle, 12-speed, PowerLock
Chain Guide
Upper slider
Pedals
None
Wheels
Front Hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 157x12mm SuperBoost rear with 3-pawl freehub and XD driver
Rear Hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 157x12mm SuperBoost rear with 3-pawl freehub and XD driver
Rims
DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 hole
Spokes
DT Swiss Champion, straightpull
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.5" WT, Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.4" WT
Brakes
Brakes
SRAM Code R, 4-piston, SRAM CenterLine 200mm 6-bolt rotors, steel-backed metal sintered pads
Brake Levers
SRAM Code R, tool-free reach adjust
Cockpit
Stem
ONOFF Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp
Handlebar
ONOFF Sulfur 1.0, double butted 6061 alloy, 20mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Grips
ONOFF Desert, 135mm length, single lock-on
Headset
ONOFF Titan, ACB sealed bearings
Seat
Saddle
SDG Bel-Air 3.0, LPU foam, steel rails
Seatpost
ONOFF Pija dropper, Drop: 100mm (SM), 125mm (MD), 150mm (LG), 170mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.31 mm | 1.28 mm | 1.26 mm |
| Bottom Bracket Height | 357 mm | 357 mm | 357 mm | 357 mm |
| Stack | 602 mm | 611 mm | 625 mm | 639 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 600 mm | 623 mm | 648 mm | 672 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1194 mm | 1217 mm | 1243 mm | 1269 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

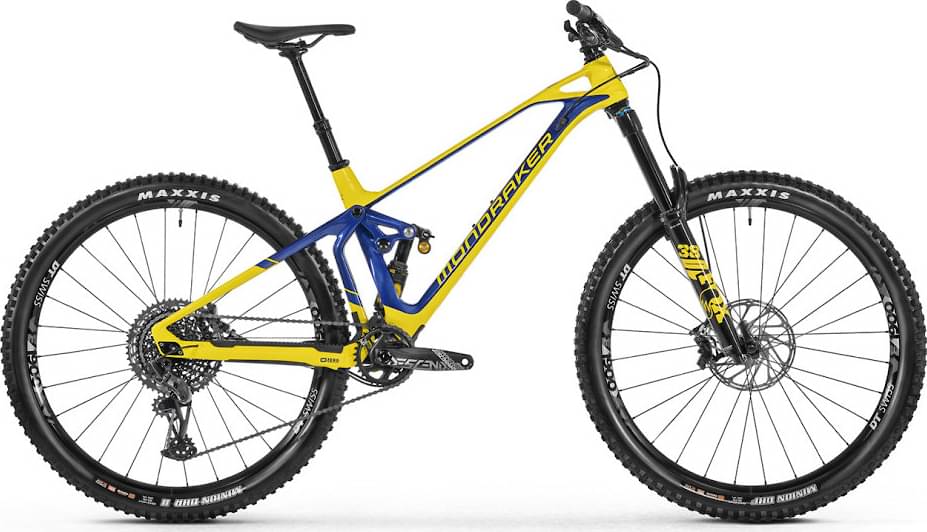

Superfoxy Carbon R belongs to the Mondraker Superfoxy model. There are 14 bikes that carry this model name. Take a sneak peek at all Mondraker Superfoxy bikes models from 2021, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Enduro bikes
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Superfoxy Carbon R weighs 14.9 kg (32.85 lbs) and is slightly heavier than the average. To sum up, it’s 4.41% heavier than the average weight of Enduro bikes.
Superfoxy Carbon R components
Fork
Mondraker Superfoxy Carbon R 2021 bike is equipped with the Fox Performance Float 38 fork, and has 170mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX FLOAT X2 Performance rear shock model, which has a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Superfoxy Carbon R bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Superfoxy Carbon R comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Mondraker Superfoxy Carbon R bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
