Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Float 38
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 38 Performance, GRIP damper, EVOL, 3-position lever with micro compression adjust, low-speed rebound adjust, 44mm offset
Rear Shock
FOX FLOAT X2 Performance, EVOL, Open/Firm lever, low-speed compression adjust, low-speed rebound adjust, trunnion mount, 205mm x 65mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-Actuation
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed, Trigger, X-Actuation
Cassette
SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth
Crank
Truvativ Descendant 7K Eagle DUB, 170mm length (SM/MD), 175mm length (LG/XL)
Bottom Bracket
SRAM DUB, sealed bearings, 73mm BSA threaded
Chain
SRAM NX Eagle, 12-speed, PowerLock
Chain Guide
None
Pedals
None
Wheels
Front Hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 157x12mm SuperBoost rear with 3-pawl freehub and XD driver
Rear Hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 157x12mm SuperBoost rear with 3-pawl freehub and XD driver
Rims
DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 hole
Spokes
DT Swiss Champion, straightpull
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.5" WT, Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.4" WT
Brakes
Brakes
SRAM Code R, 4-piston, SRAM CenterLine 200mm 6-bolt rotors, steel-backed metal sintered pads
Brake Levers
SRAM Code R, tool-free reach adjust
Cockpit
Stem
ONOFF Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp
Handlebar
ONOFF Sulfur 1.0, double butted 6061 alloy, 20mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Grips
ONOFF Twin, 135mm length, single lock-on
Headset
ONOFF Saturn, ACB sealed bearings
Seat
Saddle
SDG Bel-Air 3.0, LPU foam, steel rails
Seatpost
ONOFF Pija dropper, Drop: 100mm (SM), 125mm (MD), 150mm (LG), 170mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.32 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 618 mm | 618 mm | 636 mm | 636 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 622 mm | 647 mm | 667 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1221 mm | 1242 mm | 1270 mm | 1290 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

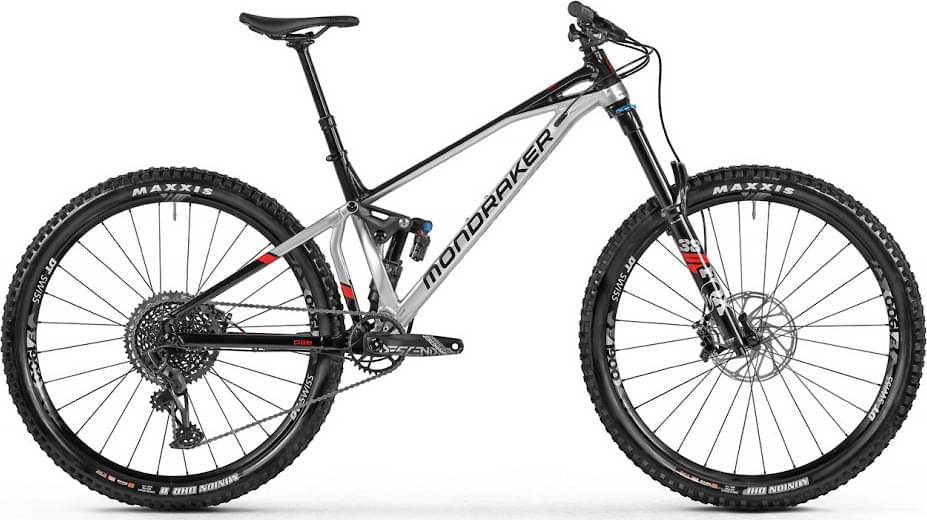

Model Overview
Superfoxy R belongs to the Mondraker Superfoxy model. Mondraker launched 14 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Enduro bikes average weight
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 15.8 kg (34.83 lbs), the Superfoxy R model is considerably heavier than average. In short, the average Enduro bike weight is 10.72% lower than this one.
Superfoxy R components
Fork
The fork installed on this bike is the Fox Performance Float 38 model. The travel on this model is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Superfoxy R has a rear shock with a travel of 160mm. The model FOX FLOAT X2 Performance is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Superfoxy R bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
