Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Recon Silver RL
-
Groupset GX, X5 -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon RL, Solo Air, 110x15mm axle, rebound, compression adjustment at low-speed to lock, air preload
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM GX, 10-speed, long cage, exact actuation
Front Derailleur
N/A
Shift Levers
SRAM Trigger X5, 10-speed, 1:1 actuation
Cassette
SunRace CSMCS3, 11-42 tooth, 10-speed
Crank
SRAM NX16000, aluminum, 24mm axle, 170mm length (S/M), 175mm length (L/XL)
Bottom Bracket
SRAM GXP XR, sealed bearings, 73mm BSA
Chain
SRAM PC-1031, 10-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Front: MDK DC511, sealed bearings, IS 6-bolt, 110x15mm, Rear: MDK GW, sealed bearings, IS 6-bolt, 148x12mm
Rear Hub
Front: MDK DC511, sealed bearings, IS 6-bolt, 110x15mm, Rear: MDK GW, sealed bearings, IS 6-bolt, 148x12mm
Rims
MDK-EP1, 27mm internal width, tubeless ready, 32 hole, asymmetrical
Spokes
CN round stainless steel
Tires
Maxxis Ardent, single compound, 60tpi, wire bead, 27.5" x 2.4"
Brakes
Brakes
SRAM Level T, 180mm 6-bolt one-piece Centerline rotors, organic pads
Brake Levers
SRAM Level T, length adjust, Matchmaker compatible, ambidextrous lever mount
Cockpit
Stem
Onoff Stoic FG, 30mm length, 6061 forged aluminium, 31.8mm clamp
Handlebar
Mondraker 6061 aluminum, double butted, 25mm rise, 760mm width, 9° backsweep, 5° upsweep, 31.8mm clamp
Grips
Onoff Diamond, lock-on, 130mm
Headset
Onoff Saturn, tapered
Seat
Saddle
Mondraker Vantage R
Seatpost
Onoff Pija Dropper, S: 337mm length x 100mm travel, M/L/XL: 387mm length x 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.3 mm | 1.26 mm | 1.24 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Stack | 598 mm | 598 mm | 607 mm | 617 mm |
| Reach | 439 mm | 459 mm | 481 mm | 499 mm |
| Top Tube Length | 612 mm | 632 mm | 657 mm | 677 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1158 mm | 1178 mm | 1204 mm | 1226 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

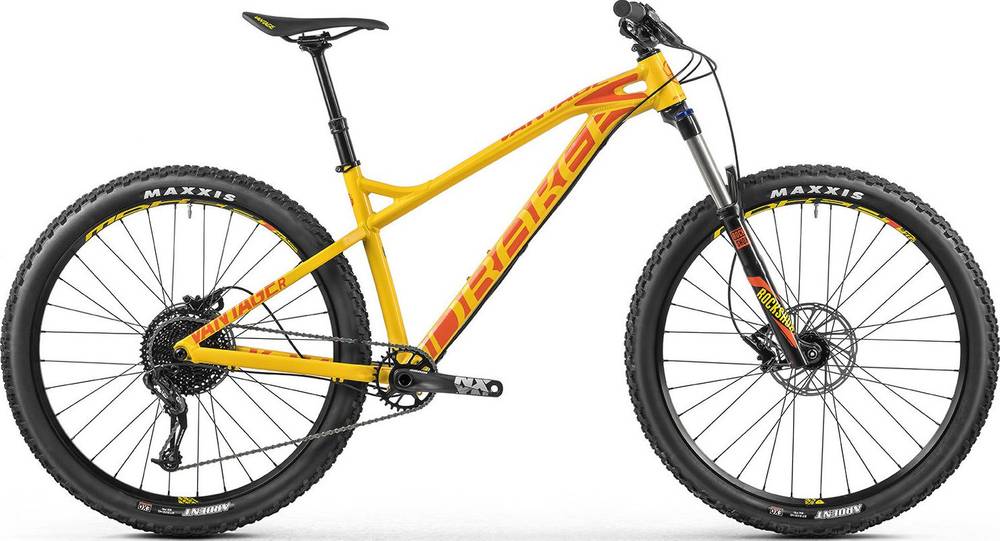

About this model
Vantage R is a Mondraker Vantage model. Mondraker launched 3 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Mondraker Vantage 2018 is the most economical model, with a starting price of 1445$. Mondraker Vantage RR 2018 on the other hand costs 3150$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Mondraker released this model in 2018, its price was 2365$. In conclusion, this bike price is 16.79% smaller than the price of the average Trail bike.
Overview of components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the Vantage R model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Vantage R has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Vantage R comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Mondraker Vantage R includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
