Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
MOOTS FLAT MOUNT DISC CROSS CARBON (BLACK)
Drivetrain
Rear Derailleur
N/A
Shift Levers
N/A
Crank
N/A
Bottom Bracket
N/A
Wheels
Tires
N/A
Brakes
Brakes
N/A
Cockpit
Stem
N/A
Handlebar
N/A
Headset
CHRIS KING I7
Seat
Saddle
N/A
Seatpost
N/A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 55cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.63 mm | 1.61 mm | 1.62 mm | 1.62 mm | 1.64 mm | 1.64 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 280 mm | 280 mm | 280 mm | 280 mm | 281 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 554 mm | 574 mm | 583 mm | 593 mm | 604 mm | 623 mm | 643 mm |
| Reach | 357 mm | 353 mm | 363 mm | 365 mm | 373 mm | 380 mm | 391 mm |
| Top Tube Length | 507 mm | 517 mm | 532 mm | 542 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 75 ° | 74.25 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 480 mm | 510 mm | 520 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.75 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 160 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 69 mm | 69 mm | 68 mm |
| Standover Height | 754 mm | 779 mm | 795 mm | 802 mm | 815 mm | 830 mm | 851 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

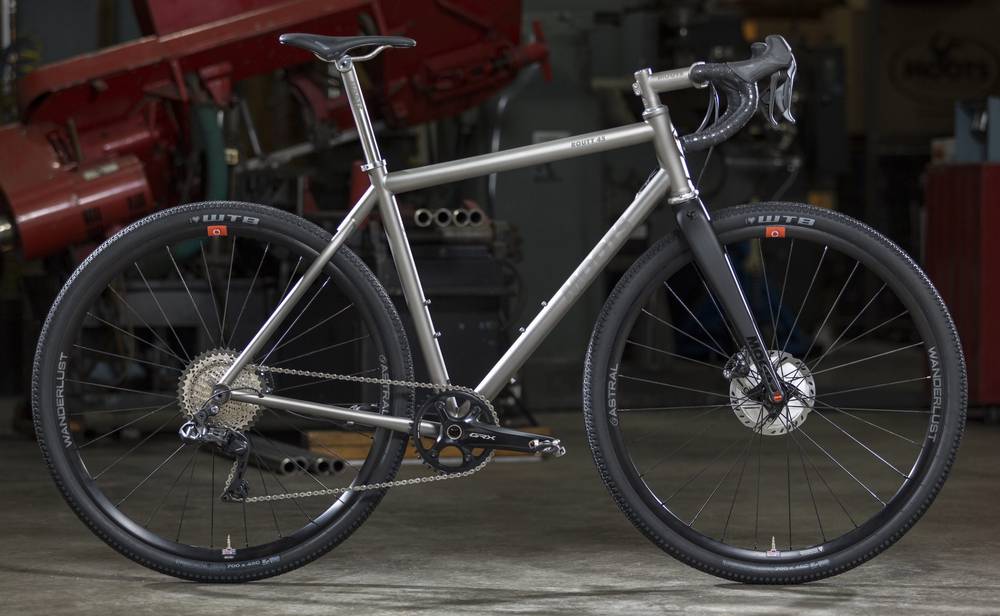

Routt 45 FRAMESET DI2 belongs to the Moots Routt model. Moots released 126 frames variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Moots Routt 45 FRAMESET DI2 2020 is the most affordable frame of this model and has a price of 5095$. On the other hand, Moots Routt RSL FRAMESET DI2 2020, is the most expensive and costs 6095$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel frames average price
If you want to purchase a solid Gravel frame, it is important to know that the average cost is 1505$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 5095$. Comparing this to the average Gravel frame price, we see that the price is 238.54% higher.
Overview of components
Fork material
Routt 45 FRAMESET DI2 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
