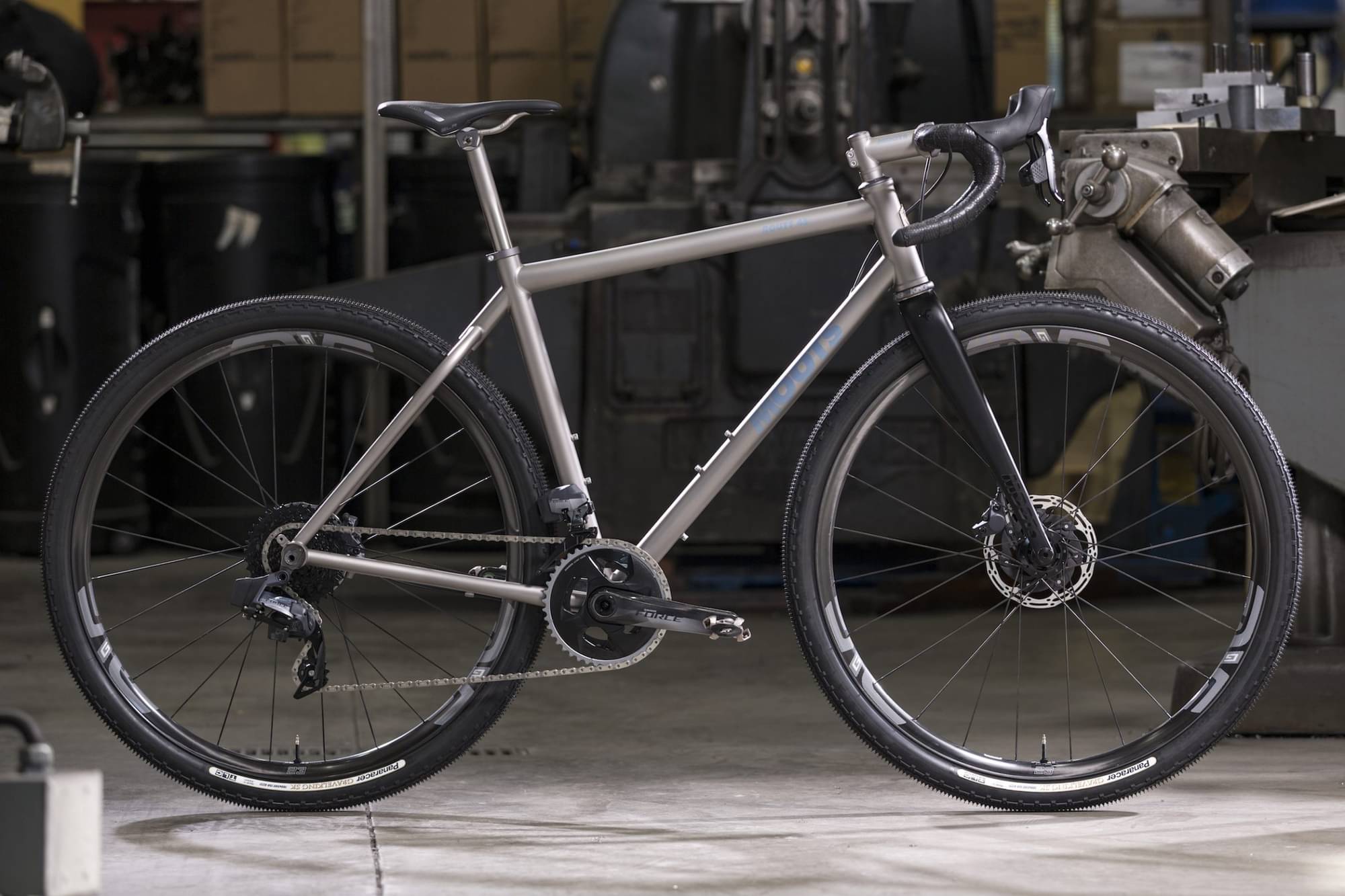

Moots Routt 45 SRAM RIVAL XPLR AXS 1X WIDE 2022
2022 Road
Estimate price |
9,979$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Rival XPLR eTap -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
MOOTS FLAT MOUNT DISC CROSS CARBON (BLACK)
Drivetrain
Rear Derailleur
RIVAL XPLR AXS 1X WIDE 10-44 CASSETTE
Shift Levers
RIVAL XPLR AXS 1X WIDE 10-44 CASSETTE
Crank
RIVAL XPLR 1X 44T (170,172.5,175)
Bottom Bracket
SRAM DUB WIDE THREADED
Wheels
Rims
HED EMPORIA PERFORMANCE
Tires
PANARACER GRAVEL KING SK - BLACK (700X43, 700X50)
Brakes
Brakes
SRAM RIVAL AXS HRD FLAT MOUNT 160/140 CL ROTORS
Cockpit
Stem
N/A
Handlebar
ENVE GRAVEL HANDLEBAR
Headset
CHRIS KING I7 (ASSORTED COLORS)
Seat
Saddle
SELLE ITALIA SLR BOOST TM MANGANESE
Seatpost
MOOTS CINCH POST
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 55cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.6 mm | 1.58 mm | 1.6 mm | 1.59 mm | 1.61 mm | 1.62 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 280 mm | 280 mm | 280 mm | 280 mm | 281 mm |
| Front Center | 596 mm | 600 mm | 610 mm | 616 mm | 624 mm | 637 mm | 650 |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 76 mm | 75 mm | 75 mm | 74 mm | 70 mm | 70 mm | 67 mm |
| Stack | 552 mm | 571 mm | 579 mm | 588 mm | 600 mm | 619 mm | 639 mm |
| Reach | 359 mm | 356 mm | 366 mm | 368 mm | 377 mm | 384 mm | 395 mm |
| Top Tube Length | 512 mm | 522 mm | 537 mm | 547 mm | 562 mm | 577 mm | 597 mm |
| Seat Tube Angle | 75 ° | 74.25 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 480 mm | 510 mm | 520 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.25 ° | 70.25 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 160 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1015 mm | 1019 mm | 1030 mm | 1036 mm | 1044 mm | 1057 mm | 1070 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 69 mm | 69 mm | 68 mm |
| Standover Height | 754 mm | 779 mm | 795 mm | 802 mm | 815 mm | 830 mm | 851 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Routt 45 SRAM RIVAL XPLR AXS 1X WIDE completes the Moots Routt model. Moots released 126 bikes variations of this model so far. Take a sneak peek at all Moots Routt bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Moots Routt 45 SHIMANO GRX 2X MECHANICAL 2022 has a starting price of 9254$. Moots Routt RSL SRAM RED AXS 1X WIDE XLPR 2022 on the other hand is the most expensive at 14599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 9979$. Comparing the average cost of a Gravel bike to this one, you will see that Routt 45 SRAM RIVAL XPLR AXS 1X WIDE price is 305.32% higher.
Routt 45 SRAM RIVAL XPLR AXS 1X WIDE components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Routt 45 SRAM RIVAL XPLR AXS 1X WIDE bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Moots Routt 45 SRAM RIVAL XPLR AXS 1X WIDE has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
