Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Force -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Ti Bearclaw Fork
Drivetrain
Rear Derailleur
Force XO1
Cassette
Force XO1
Crank
White Industries
Bottom Bracket
73mm English
Wheels
Rims
ASTRAL BOOST OUTBACK CARBON
Tires
Maxxis Ikon 2.35
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Moots Ti
Handlebar
Enve Gravel
Seat
Saddle
WTB Gravelier Ti
Seatpost
30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.64 mm | 1.64 mm | 1.65 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 279 mm | 281 mm |
| Stack | 603 mm | 621 mm | 651 mm | 679 mm |
| Reach | 359 mm | 379 mm | 397 mm | 412 mm |
| Top Tube Length | 531 mm | 561 mm | 591 mm | 621 mm |
| Seat Tube Angle | 74.25 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 520 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 140 mm | 160 mm | 190 mm | 220 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 68 mm |
| Standover Height | 811 mm | 829 mm | 857 mm | 885 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

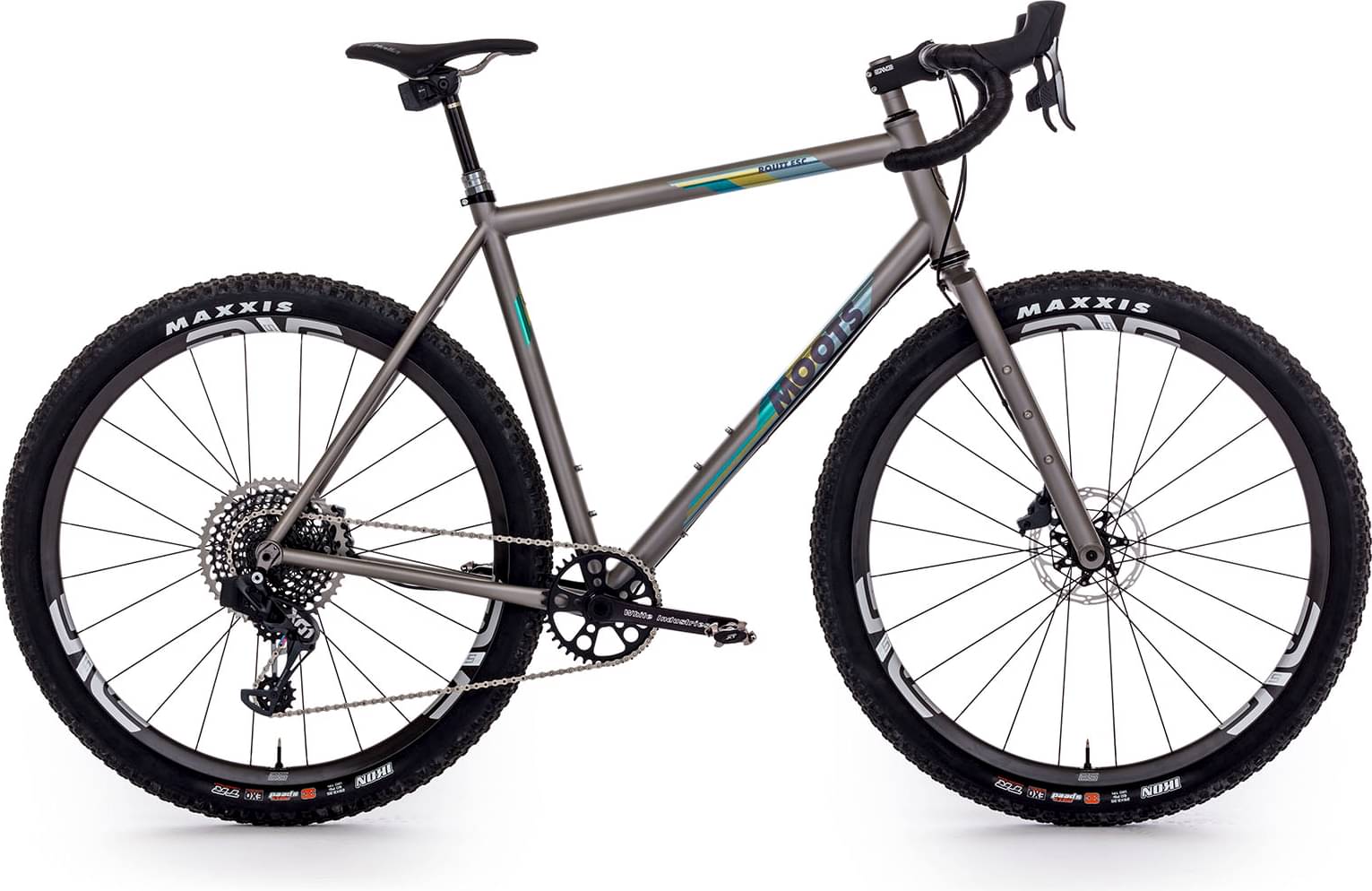

Routt ESC Force XO1 belongs to the Moots Routt model. Moots released 126 bikes variations of this model so far. Take a sneak peek at all Moots Routt bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Moots Routt 45 SRAM Rival XPLR 2023 has a starting price of 7499$. Moots Routt CRD RED XPLR 2023 on the other hand is the most expensive at 15549$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 11549$. Comparing this to the average Gravel bike price, we see that the price is 369.09% more expensive.
Overview of components
Fork material
Routt ESC Force XO1 has a titanium fork, so it’s a bit thicker than a carbon or steel fork would be.
Wheels
The Routt ESC Force XO1 2023 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Moots Routt ESC Force XO1 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
