Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium

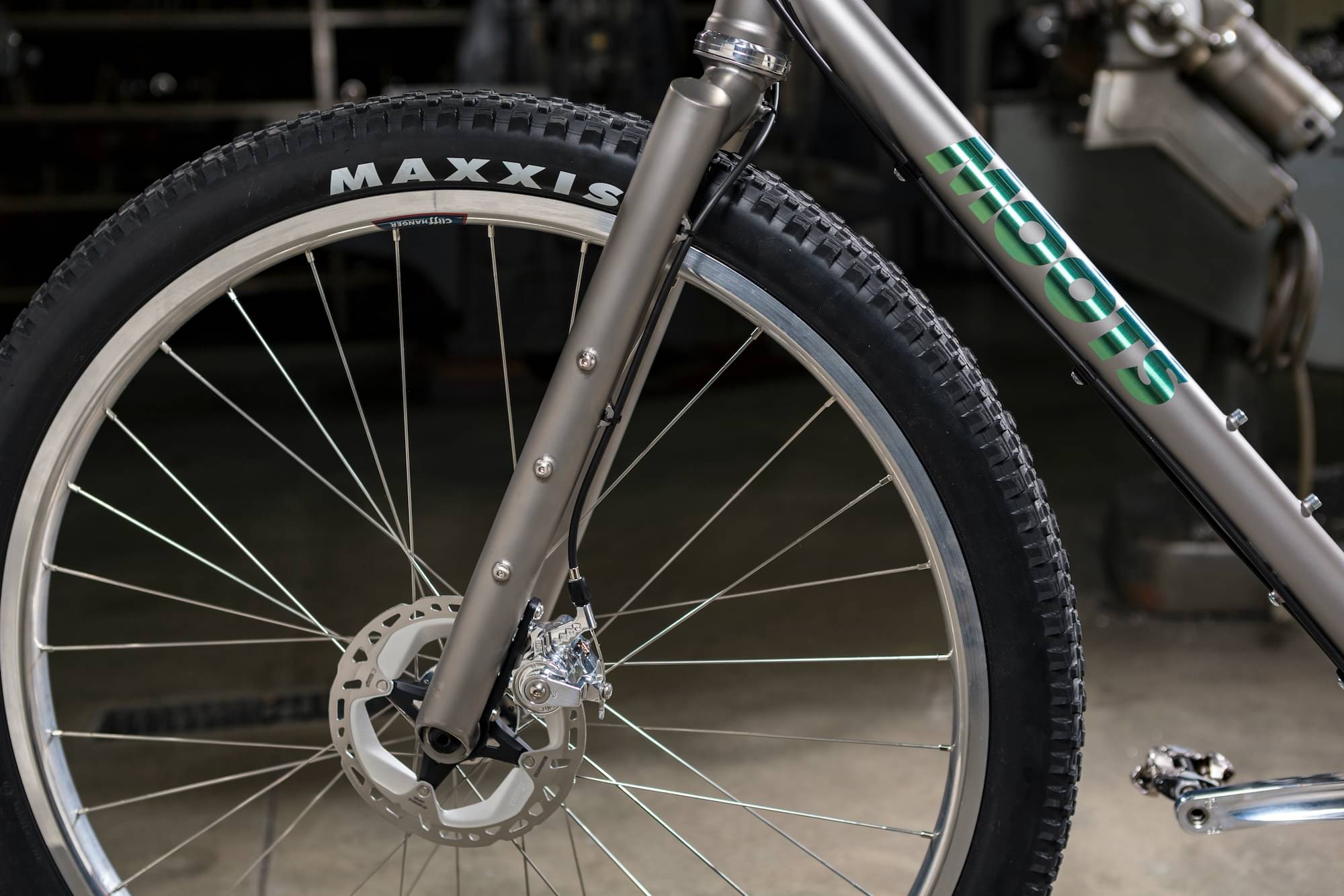

Suspension Fork
TITANIUM GEOMETRY SPECIFIC 420MM A-C X 51 RAKE
Drivetrain
Rear Derailleur
SRAM FORCE AXS W/GX 10-50 CASSETTE
Shift Levers
SRAM FORCE AXS W/GX 10-50 CASSETTE
Crank
WHITE INDUSTRIES M30 BLACK 38T
Bottom Bracket
WHITE INDUSTRIES 30MM BSA (BLACK)
Wheels
Rims
ASTRAL OUTBACK CARBON W/WHITE INDUSTRIES CLD+ HUBS
Tires
MAXXIS IKON 2.35
Brakes
Brakes
FORCE AXS FLAT MOUNT
Cockpit
Stem
N/A
Handlebar
ENVE GRAVEL 48CM
Headset
WHITE INDUSTRIES BLACK 1.5 TAPERED
Seat
Saddle
SELLE ITALIA SLR BOOST GRAVEL
Seatpost
MOOTS CINCH POST
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.64 mm | 1.64 mm | 1.65 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 279 mm | 281 mm |
| Stack | 603 mm | 621 mm | 651 mm | 679 mm |
| Reach | 359 mm | 379 mm | 397 mm | 412 mm |
| Top Tube Length | 531 mm | 561 mm | 591 mm | 621 mm |
| Seat Tube Angle | 74.25 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 520 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 140 mm | 160 mm | 190 mm | 220 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 68 mm |
| Standover Height | 811 mm | 829 mm | 857 mm | 885 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

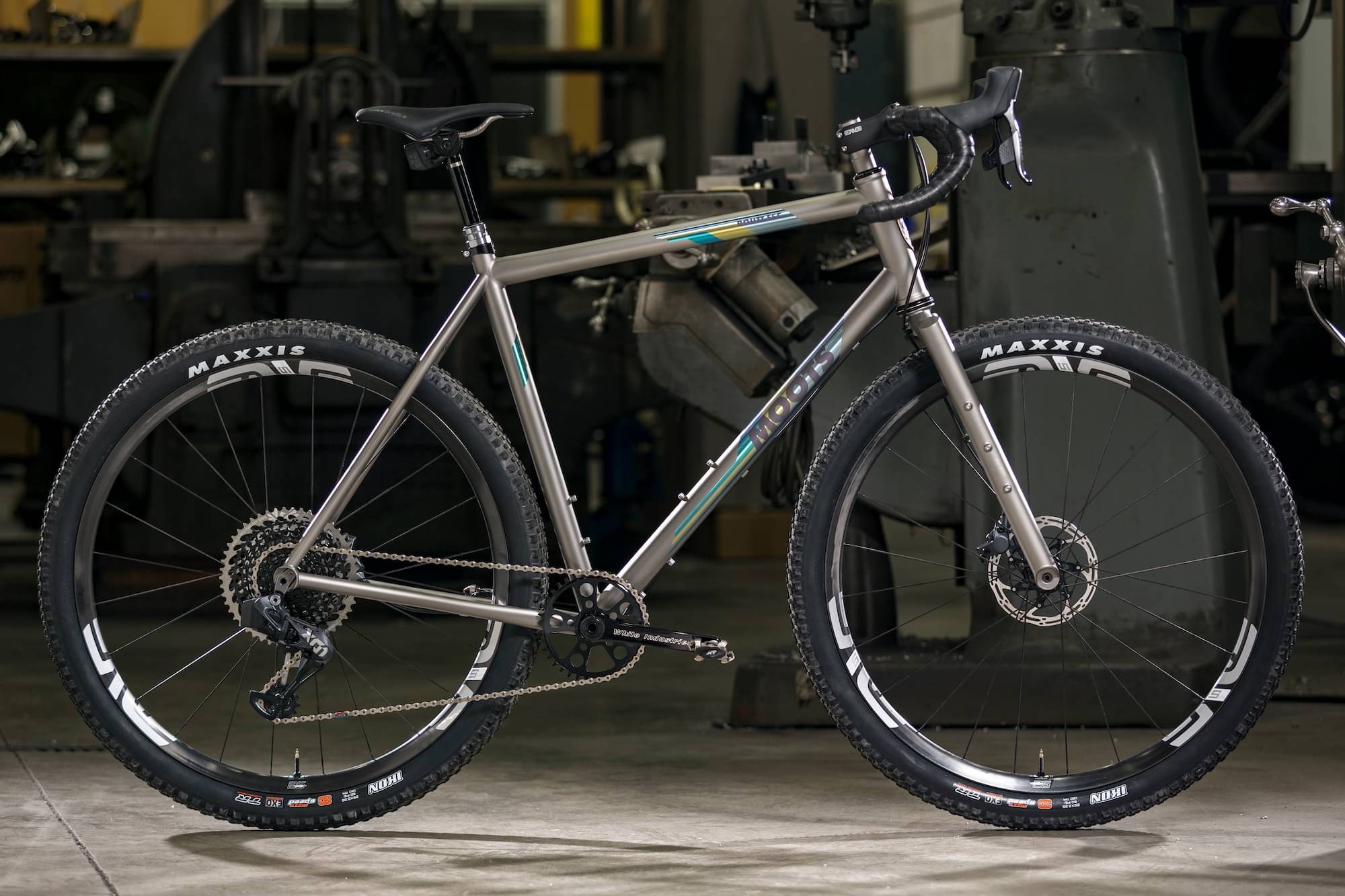

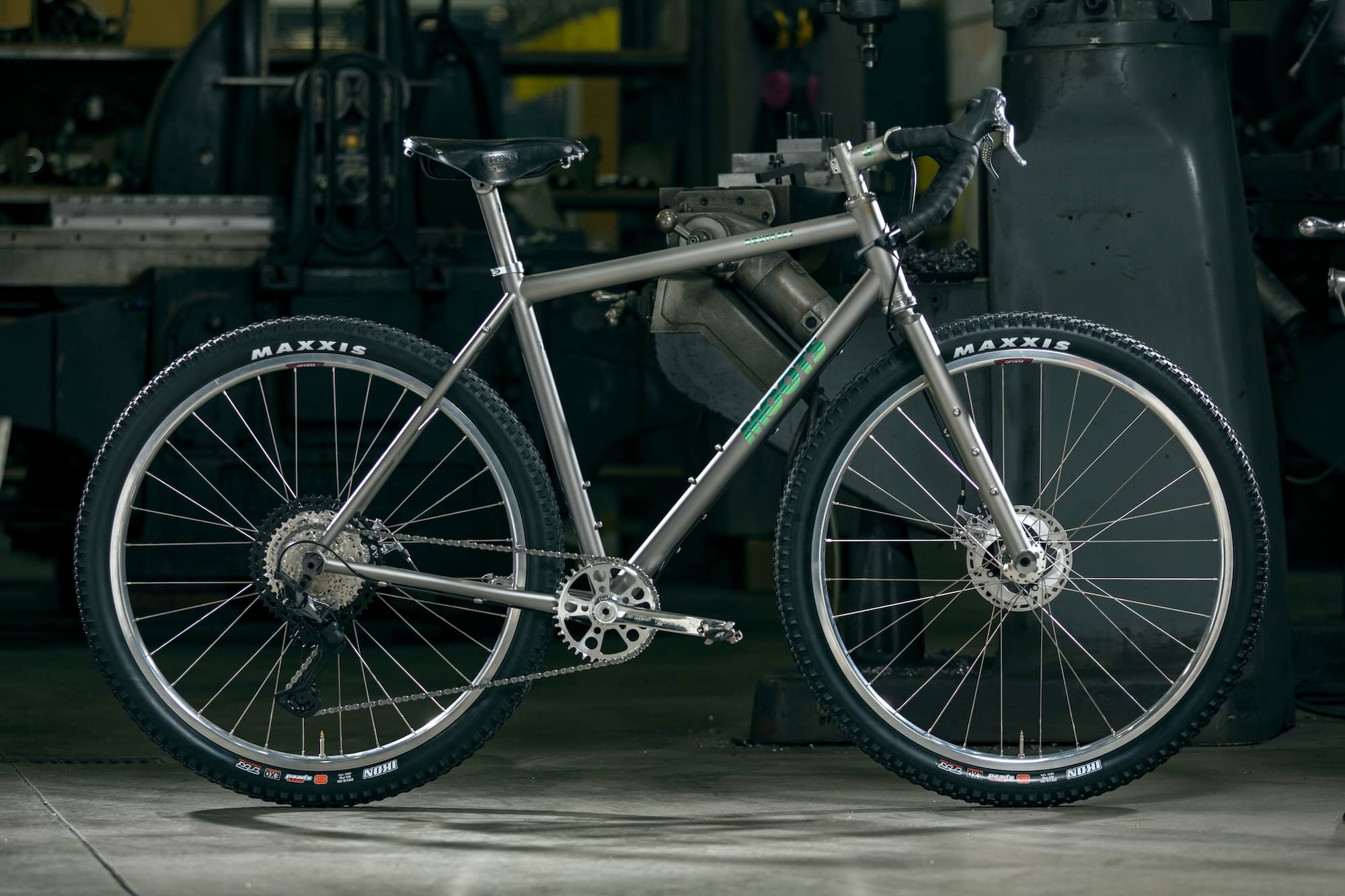

Routt ESC SRAM AXS completes the Moots Routt model. Moots released 126 bikes variations of this model so far. Take a sneak peek at all Moots Routt bikes models from 2023, by clicking here.
Model range prices
Moots Routt 45 SRAM Rival XPLR 2023 is the most economical model, with a starting price of 7499$. Moots Routt CRD RED XPLR 2023 on the other hand costs 15549$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Moots Routt ESC SRAM AXS price was 12089$. Comparing this to the average Gravel bike price, we see that the price is 391.02% higher.
Routt ESC SRAM AXS components
Fork material

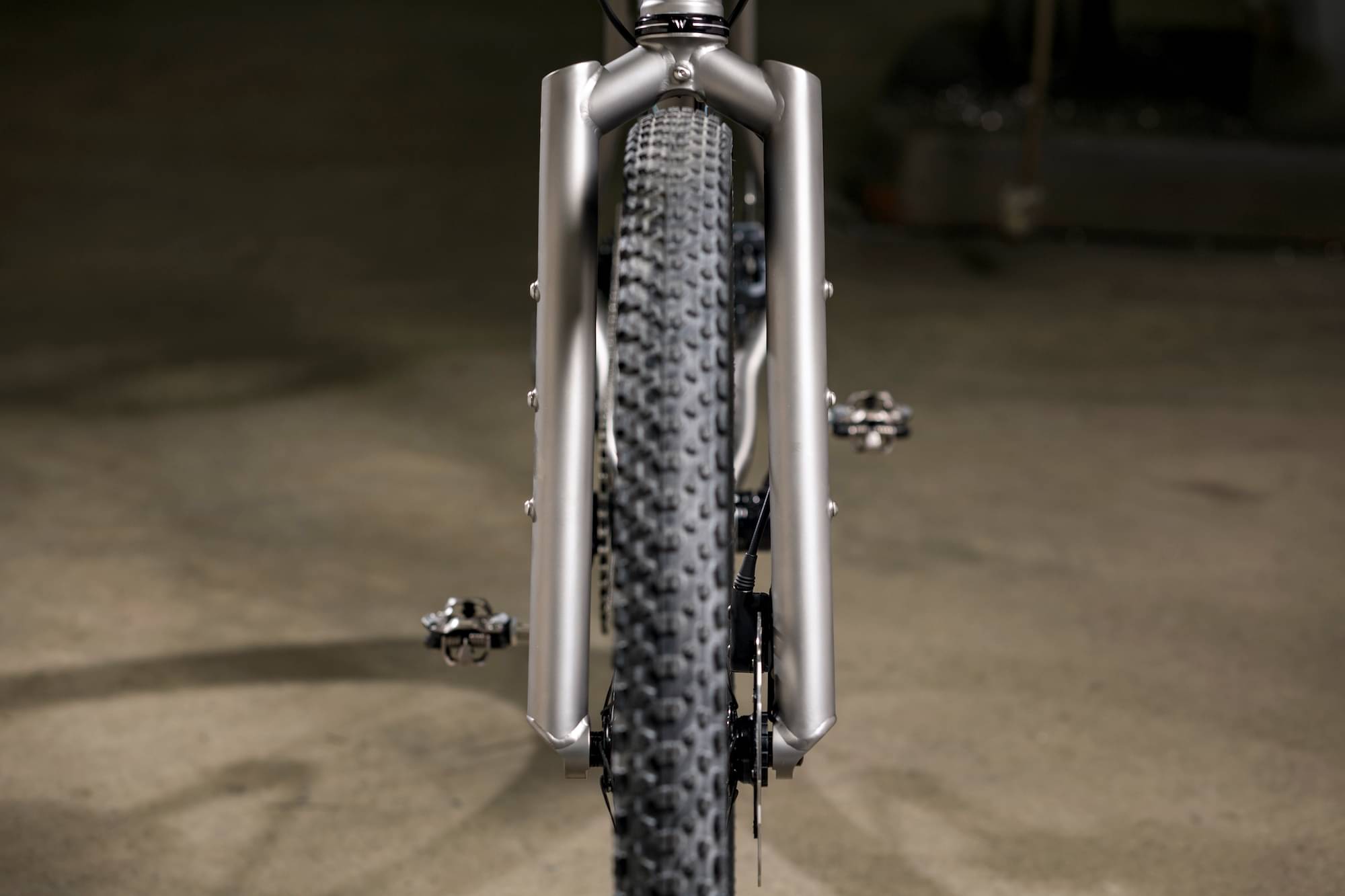

The fork on this bike is made out of titanium, so it’s a bit thicker than a carbon or steel fork would be.
Wheels size
The Routt ESC SRAM AXS 2023 bike is equipped with 700c carbon wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes

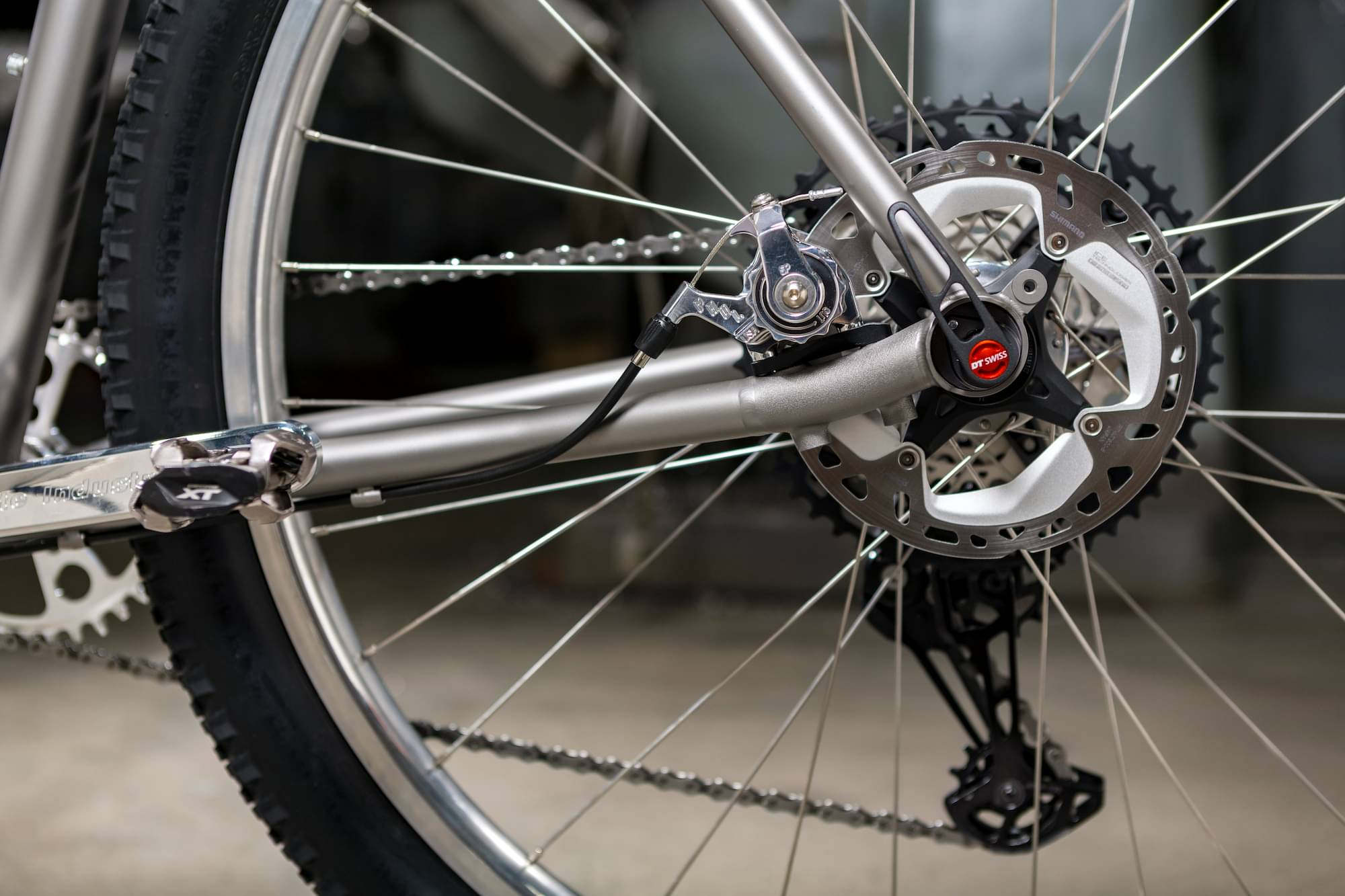

For your safety, it is important to have quality breaks on your bike. Moots Routt ESC SRAM AXS has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Moots Routt ESC SRAM AXS bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
