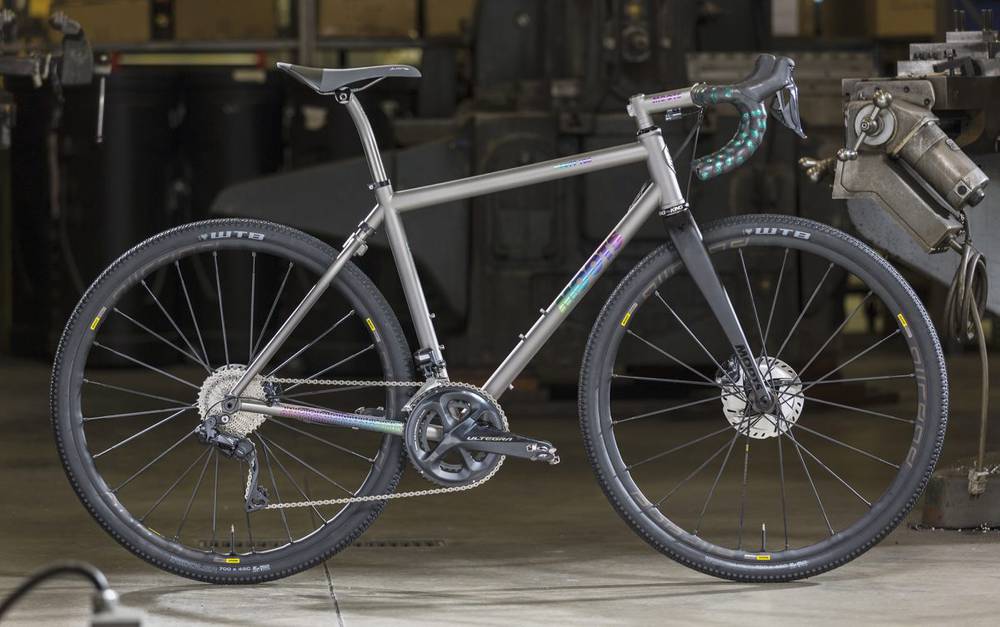

Moots ROUTT YBB FRAMESET (MECHANICAL) 2019
2019 Road
Estimate price |
4,999$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
MOOTS FLAT MOUNT DISC CROSS CARBON (BLACK)
Drivetrain
Rear Derailleur
N/A
Shift Levers
N/A
Crank
N/A
Bottom Bracket
N/A
Wheels
Tires
N/A
Brakes
Brakes
N/A
Cockpit
Stem
N/A
Handlebar
N/A
Headset
CHRIS KING I7
Seat
Saddle
N/A
Seatpost
N/A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 55cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.63 mm | 1.61 mm | 1.62 mm | 1.62 mm | 1.64 mm | 1.64 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 280 mm | 280 mm | 280 mm | 280 mm | 281 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 554 mm | 574 mm | 583 mm | 593 mm | 604 mm | 623 mm | 643 mm |
| Reach | 357 mm | 353 mm | 363 mm | 365 mm | 373 mm | 380 mm | 391 mm |
| Top Tube Length | 507 mm | 517 mm | 532 mm | 547 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 75 ° | 74.25 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 480 mm | 510 mm | 520 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.75 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 160 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 69 mm | 69 mm | 68 mm |
| Standover Height | 754 mm | 779 mm | 795 mm | 802 mm | 815 mm | 830 mm | 851 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
ROUTT YBB FRAMESET (MECHANICAL) is part of the Moots Routt model. 126 frames variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Moots Routt 45 FRAMESET (MECHANICAL) 2019 is the cheapest frame model and costs 4799$. Moots ROUTT RSL FRAMESET (ELECTRONIC) 2019 is the most expensive one and costs 5999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel frames
If you want to purchase a solid Gravel frame, it is important to know that the average cost is 1505$. However, this doesn’t mean that if you spend less money on a Gravel frame, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
This frame was released in 2019 and its price was 4999$. Doing a quick comparison, we notice that ROUTT YBB FRAMESET (MECHANICAL) price is 232.16% higher than the average cost of a Gravel frame.
ROUTT YBB FRAMESET (MECHANICAL) components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
