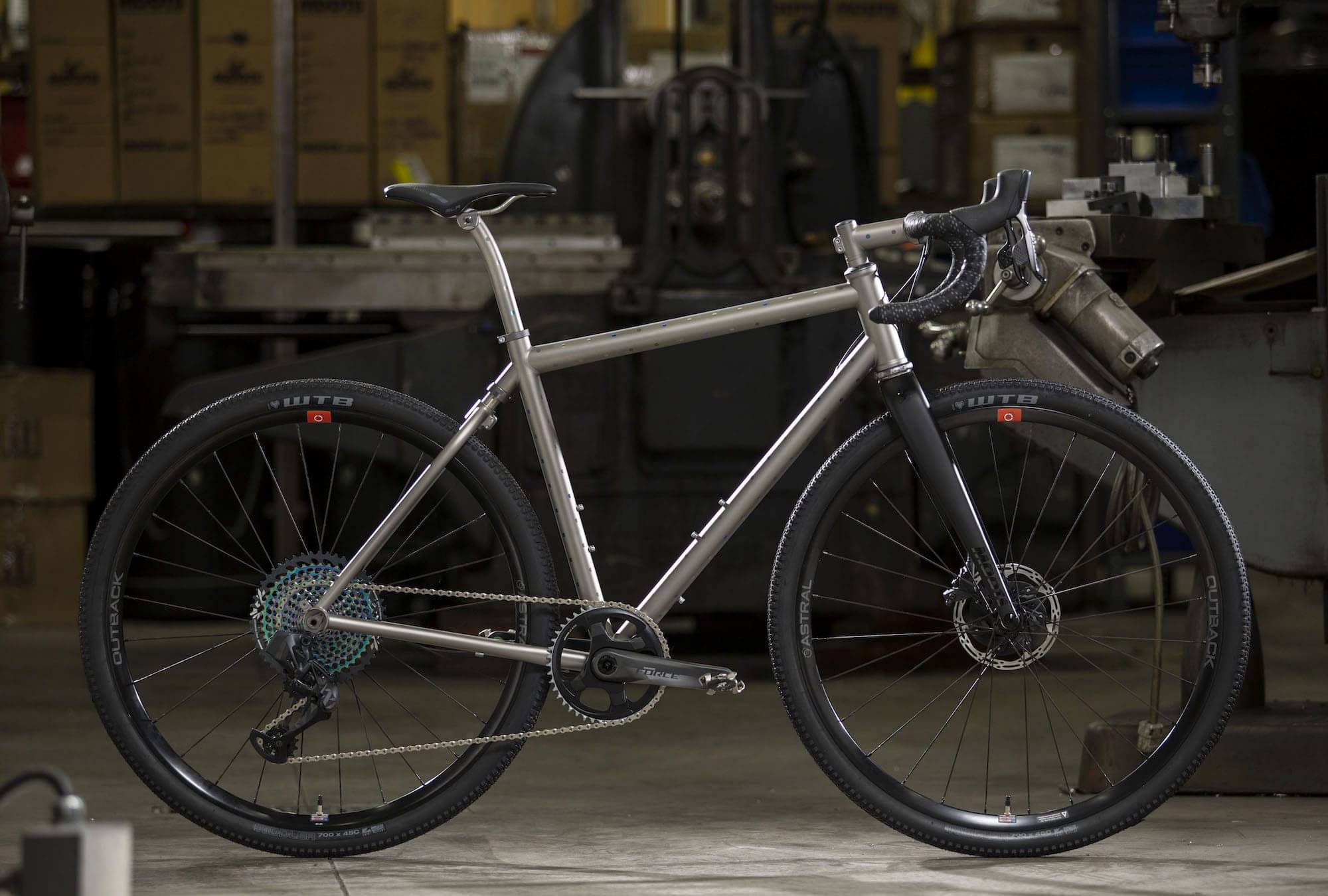

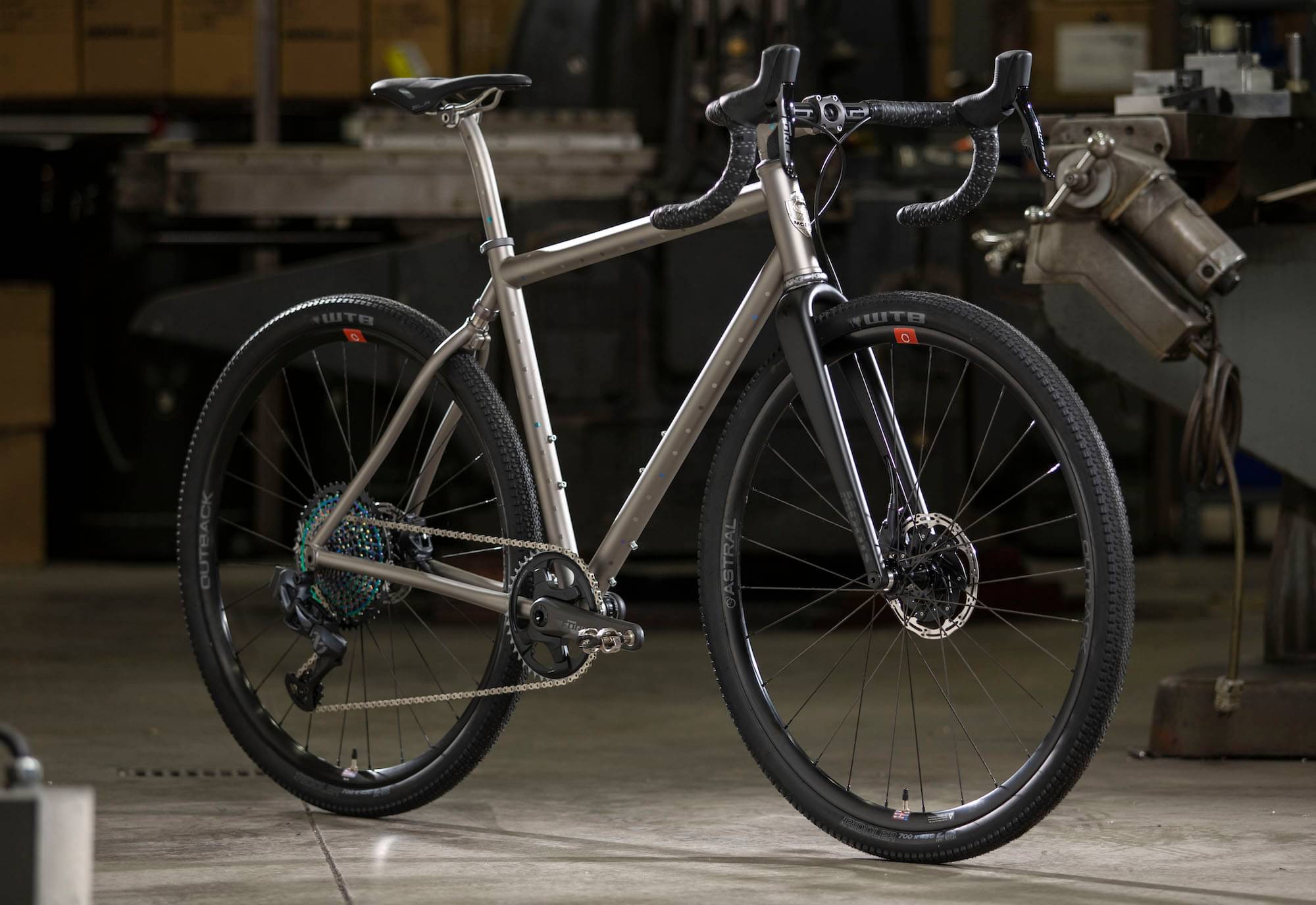

Moots Routt YBB SRAM RED XPLR AXS 1X WIDE 2023
2023 Road
Estimate price |
12,929$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset RED AXS -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
MOOTS FLAT MOUNT DISC GRAVEL CARBON (BLACK)
Drivetrain
Rear Derailleur
SRAM RED AXS 1X WIDE 10-44 CASSETTE
Shift Levers
SRAM RED AXS 1X WIDE 10-44 CASSETTE
Crank
RED WIDE 1X 44T (170,172.5,175)
Bottom Bracket
SRAM DUB WIDE THREADED
Wheels
Rims
HED EMPORIA PERFORMANCE
Tires
PANARACER GRAVEL KING SK - BLACK (700X43, 700X50)
Brakes
Brakes
SRAM RED AXS HRD FLAT MOUNT 160/140 CL ROTORS
Cockpit
Stem
N/A
Handlebar
ENVE GRAVEL HANDLEBAR
Headset
CHRIS KING I7 (ASSORTED COLORS)
Seat
Saddle
SELLE ITALIA SLR BOOST TM MANGANESE

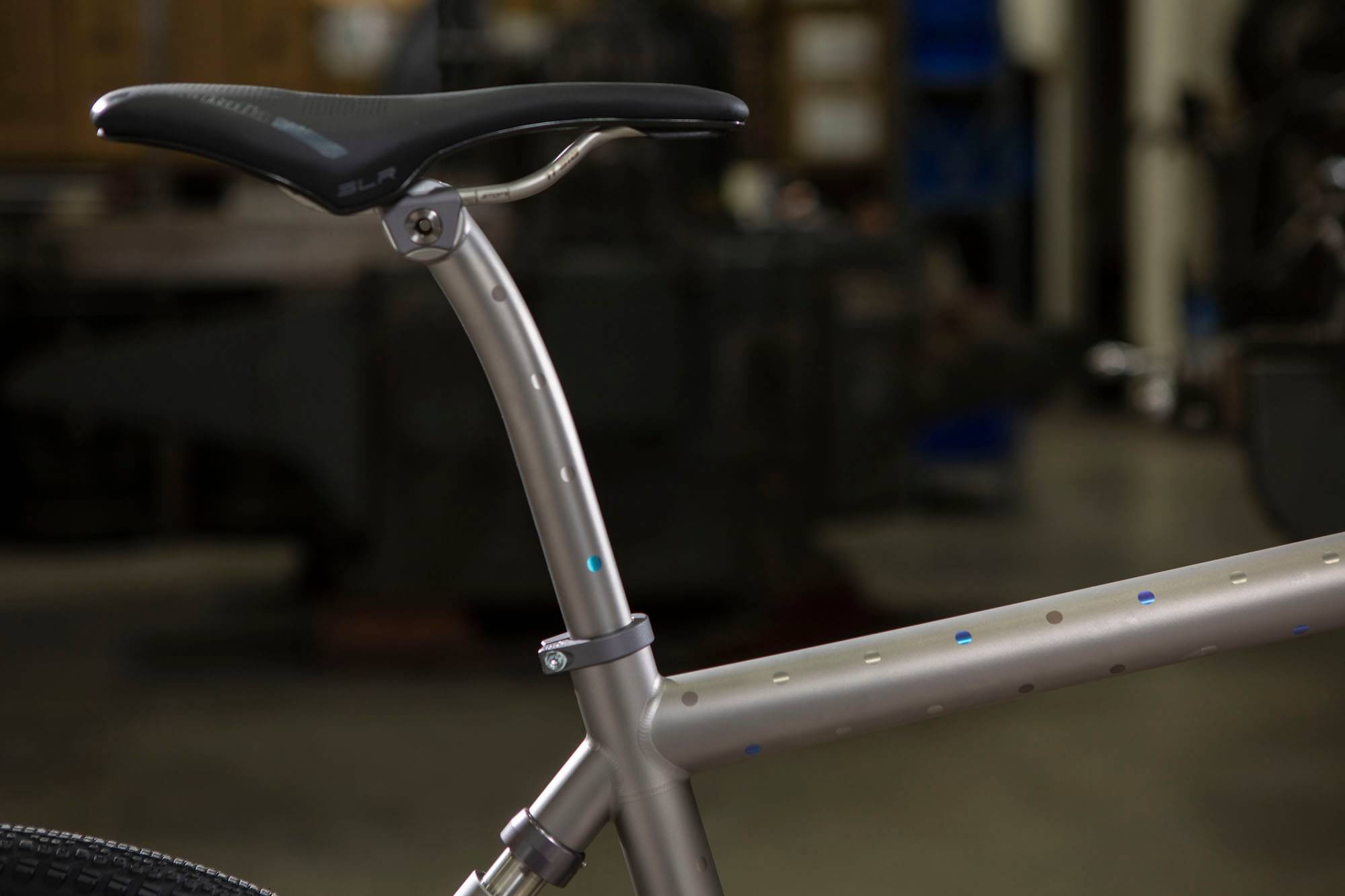

Seatpost
MOOTS CINCH POST
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 55cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.57 mm | 1.59 mm | 1.58 mm | 1.6 mm | 1.61 mm |
| Bottom Bracket Height | 278 mm | 280 mm | 280 mm | 280 mm | 280 mm | 281 mm |
| Front Center | 600 mm | 610 mm | 616 mm | 624 mm | 637 mm | 650 |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 75 mm | 75 mm | 74 mm | 70 mm | 70 mm | 67 mm |
| Stack | 577 mm | 585 mm | 594 mm | 606 mm | 625 mm | 645 mm |
| Reach | 362 mm | 372 mm | 374 mm | 383 mm | 390 mm | 401 mm |
| Top Tube Length | 528 mm | 543 mm | 553 mm | 568 mm | 583 mm | 603 mm |
| Seat Tube Angle | 74.25 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 500 mm | 515 mm | 525 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.25 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1025 mm | 1036 mm | 1042 mm | 1050 mm | 1063 mm | 1076 mm |
| Bottom Bracket Drop | 71 mm | 69 mm | 69 mm | 69 mm | 69 mm | 68 mm |
| Standover Height | 785 mm | 801 mm | 808 mm | 821 mm | 836 mm | 857 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Routt YBB SRAM RED XPLR AXS 1X WIDE completes the Moots Routt model. 126 bikes variations carry this model name so far. Take a sneak peek at all Moots Routt bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Moots Routt 45 SRAM Rival XPLR 2023 has a starting price of 7499$. Moots Routt CRD RED XPLR 2023 on the other hand is the most expensive at 15549$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Moots Routt YBB SRAM RED XPLR AXS 1X WIDE price was 12929$. Comparing this to the average Gravel bike price, we see that the price is 425.14% more expensive.
Routt YBB SRAM RED XPLR AXS 1X WIDE components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Moots Routt YBB SRAM RED XPLR AXS 1X WIDE 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Moots Routt YBB SRAM RED XPLR AXS 1X WIDE has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
