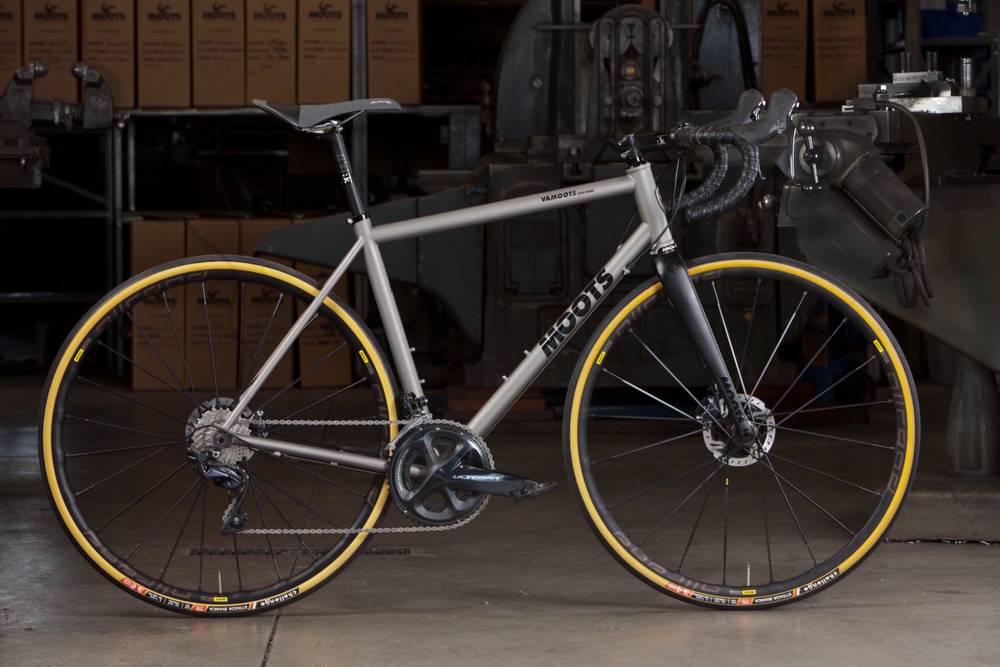

Moots Va DR FRAMESET (MECHANICAL) 2019
2019 Road
Estimate price |
4,699$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
MOOTS FLAT MOUNT DISC ROAD CARBON (BLACK)
Drivetrain
Rear Derailleur
N/A
Shift Levers
N/A
Crank
N/A
Bottom Bracket
N/A
Wheels
Tires
N/A
Brakes
Brakes
N/A
Cockpit
Stem
N/A
Handlebar
N/A
Headset
CHRIS KING I8
Seat
Saddle
N/A
Seatpost
N/A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 55cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.46 mm | 1.46 mm | 1.51 mm | 1.53 mm | 1.54 mm | 1.54 mm | 1.59 mm | 1.62 mm |
| Bottom Bracket Height | 260 mm | 260 mm | 261 mm | 261 mm | 261 mm | 261 mm | 263 mm | 265 mm | 266 mm |
| Rake | 50 mm | 50 mm | 50 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 542 mm | 544 mm | 553 mm | 574 mm | 584 mm | 594 mm | 602 mm | 620 mm | 638 mm |
| Reach | 366 mm | 373 mm | 378 mm | 379 mm | 382 mm | 386 mm | 391 mm | 389 mm | 394 mm |
| Top Tube Length | 514 mm | 524 mm | 534 mm | 544 mm | 554 mm | 564 mm | 574 mm | 584 mm | 594 mm |
| Seat Tube Angle | 74.75 ° | 74.5 ° | 74.25 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 470 mm | 485 mm | 500 mm | 510 mm | 520 mm | 535 mm | 550 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72.25 ° | 72.75 ° | 73 ° | 73 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 150 mm | 160 mm | 170 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 419 mm | 419 mm | 419 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 75 mm | 75 mm | 75 mm | 75 mm | 73 mm | 71 mm | 70 mm |
| Standover Height | 725 mm | 736 mm | 753 mm | 769 mm | 779 mm | 786 mm | 799 mm | 817 mm | 835 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Vamoots DR FRAMESET (MECHANICAL) is part of the Moots Vamoots model. 74 frames variations carry this model name so far. Take a sneak peek at all Moots Vamoots frames models from 2019, by clicking here.
Model range prices
The most economical model, the Moots Vamoots FRAMESET (MECHANICAL) 2019 has a starting price of 3999$. Moots Vamoots Disc RSL FRAMESET (ELECTRONIC) 2019 on the other hand is the most expensive at 5999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance frames
If you want an acceptable Endurance frame you should know that the average price is 1905$. However, even though the average price of an Endurance frame is lower, you might still be able to get a top-quality frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
When Moots released this model in 2019, its price was 4699$. Comparing the average cost of an Endurance frame to this one, you will see that Vamoots DR FRAMESET (MECHANICAL) price is 146.67% more expensive.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
