Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
MOOTS FLAT MOUNT DISC ROAD CARBON (BLACK)
Drivetrain
Rear Derailleur
RED AXS
Shift Levers
RED AXS
Crank
RED
Bottom Bracket
RED
Wheels
Rims
ASTRAL WANDERLUST/WHITE INDUSTRIES CLD
Tires
VITTORIA CORSA CTRL 30MM
Brakes
Brakes
RED
Cockpit
Stem
MOOTS TI
Handlebar
ENVE CARBON COMPACT
Headset
CHRIS KING I8
Seat
Saddle
SELLE ITALIA SLR BOOST GRAVEL SUPER FLOW
Seatpost
MOOTS 27.2 CINCH POST
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 55cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.46 mm | 1.46 mm | 1.51 mm | 1.53 mm | 1.54 mm | 1.54 mm | 1.59 mm | 1.62 mm |
| Bottom Bracket Height | 260 mm | 260 mm | 261 mm | 261 mm | 261 mm | 261 mm | 263 mm | 265 mm | 266 mm |
| Rake | 50 mm | 50 mm | 50 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 542 mm | 544 mm | 553 mm | 574 mm | 584 mm | 594 mm | 602 mm | 620 mm | 638 mm |
| Reach | 366 mm | 373 mm | 378 mm | 379 mm | 382 mm | 386 mm | 391 mm | 389 mm | 394 mm |
| Top Tube Length | 514 mm | 524 mm | 534 mm | 544 mm | 554 mm | 564 mm | 574 mm | 584 mm | 594 mm |
| Seat Tube Angle | 74.75 ° | 74.5 ° | 74.25 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 470 mm | 485 mm | 500 mm | 510 mm | 520 mm | 535 mm | 550 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72.25 ° | 72.75 ° | 73 ° | 73 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 150 mm | 160 mm | 170 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 419 mm | 419 mm | 419 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 75 mm | 75 mm | 75 mm | 75 mm | 73 mm | 71 mm | 70 mm |
| Standover Height | 725 mm | 736 mm | 753 mm | 769 mm | 779 mm | 786 mm | 799 mm | 817 mm | 835 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

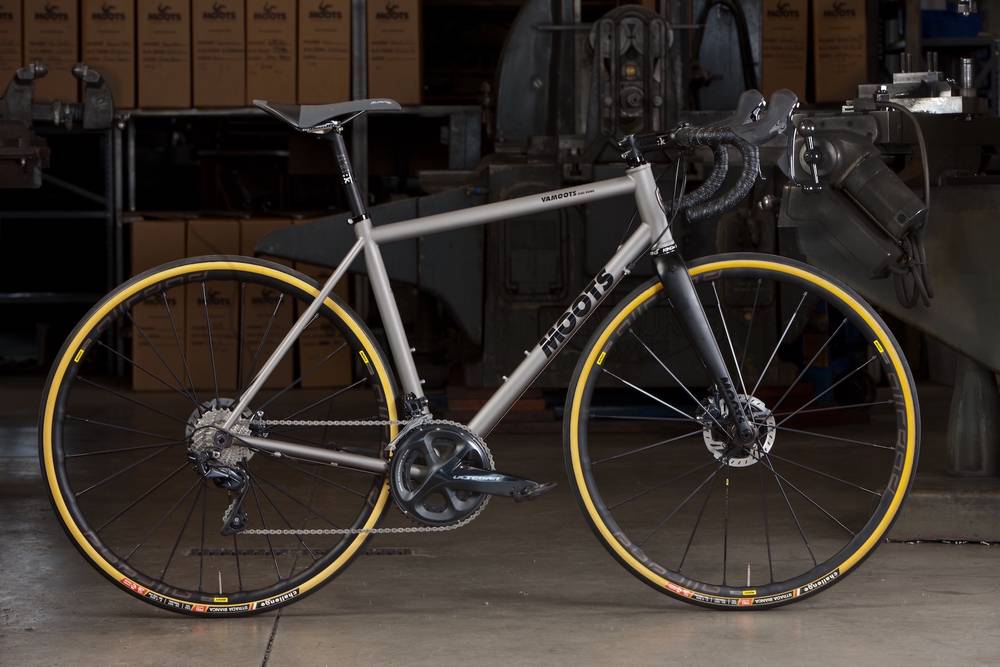

Vamoots DR RED AXS is a Moots Vamoots model. Moots launched 74 bikes of this model so far. You can easily view all of the Moots Vamoots bikes models from 2020, here.
Model range prices
Moots Vamoots DR ULTEGRA R8020 MECHANICAL 2020 is the most affordable bike of this model and has a price of 7958$. On the other hand, Moots Vamoots Disc RSL RED AXS 2020, is the most expensive and costs 12020$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Moots released this model in 2020, its price was 11020$. Doing a quick comparison, we notice that Vamoots DR RED AXS price is 369.74% higher than the average cost of an Endurance bike.
Overview of components
Fork material
Vamoots DR RED AXS has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Vamoots DR RED AXS bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Moots Vamoots DR RED AXS is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
