Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" / 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Power Tube 625 Vertical Black -
Drivetrain Belt Drive -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 36 Factory, FIT4 damper, 44mm offset
Rear Shock
FOX Van RC, 210mm x 55mm
Drivetrain
Shift Levers
Rohloff Speedhub, 14-speed, electronic
Cassette
Gates Carbon Drive, single cog, 20 tooth (SM/XL/XXL), 22 tooth (MD/LG)
Crank
Miranda, 160mm length
Chain
Gates Carbon Drive CDX belt, 125 tooth (SM/MD/LG), 128 tooth (XL, XXL)
Chain Guide
Universal Transmission GBT2
Pedals
ACROS A-Flat MD
Wheels
Front Hub
Front: Hope Tech, 110x15mm Boost, Rear: Rohloff Speedhub, 14-speed internally geared, 10x135mm
Rear Hub
Front: Hope Tech, 110x15mm Boost, Rear: Rohloff Speedhub, 14-speed internally geared, 10x135mm
Rims
Hope Tech Fortus 35 W
Tires
Continental Der Baron Projekt ProTection Apex, 29" x 2.4" (front), 27.5" x 2.6" (rear)
Brakes
Brakes
Magura MT7, 203mm rotors
Brake Levers
Magura MT7
Cockpit
Stem
Hope Tech AM, 35mm clamp, 35mm length
Handlebar
ACROS Gothic, 780mm width, 35mm diameter, 25mm rise
Grips
SQlab 70X, M
Headset
ACROS Block Lock
Seat
Saddle
SQlab 611 Ergowave active, 140mm width
Seatpost
BikeYoke Divine dropper, 185mm drop
Motor & Battery
Motor
Bosch CX Performance Line, 75Nm torque
Battery
Bosch Power Tube 625 Vertical Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.26 mm | 1.21 mm | 1.19 mm | 1.17 mm | 1.15 mm |
| Front Center | 844 mm | 865 mm | 883 mm | 902 mm | 927 mm |
| Rake | 53 mm | 56 mm | 52 mm | 52 mm | 52 mm |
| Trail | 127 mm | 124 mm | 129 mm | 129 mm | 129 mm |
| Stack | 607 mm | 607 mm | 616 mm | 625 mm | 634 mm |
| Reach | 483 mm | 500 mm | 518 mm | 533 mm | 553 mm |
| Top Tube Length | 621 mm | 634 mm | 649 mm | 663 mm | 685 mm |
| Seat Tube Angle | 78 ° | 78.5 ° | 78.75 ° | 79 ° | 79 ° |
| Seat Tube Length | 415 mm | 438 mm | 455 mm | 475 mm | 500 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm | 468 mm | 468 mm |
| Wheelbase | 1312 mm | 1333 mm | 1351 mm | 1370 mm | 1395 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm | 7 mm |
| Standover Height | 756 mm | 756 mm | 756 mm | 775 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |

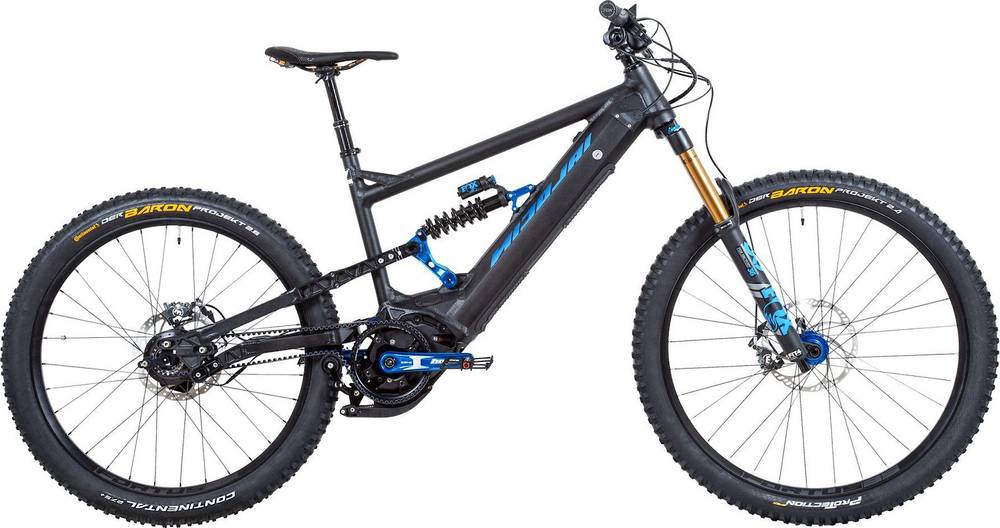

About this model
G1 EBOXX E14 is part of the Nicolai E G1 model. Nicolai launched 2 e-bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
G1 EBOXX E14 components
Fork
This e-bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Nicolai G1 EBOXX E14 e-bike has the FOX Van RC model installed, and has a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the G1 EBOXX E14 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The G1 EBOXX E14 comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Dropper post
The Nicolai model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
