Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Racing Shox 34 Float Factory FIT, 3-position adjust, Boost axle
Rear Shock
FOX Racing Float DPS Factory, 190mm x 51mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM XG 1295 Eagle, 12-speed, 10-50 tooth
Crank
SRAM X01 Eagle, 170mm length
Bottom Bracket
SRAM Team BSA GXP
Chain
SRAM CN-X-01 Eagle, 12-speed
Chain Guide
Upper guide with lower bashguard
Pedals
N/A
Wheels
Front Hub
DT Swiss EX 1501
Rear Hub
DT Swiss EX 1501
Rims
DT Swiss EX 1501, 30mm
Spokes
DT Swiss EX 1501
Tires
Continental Mountain King II, ProTection, 29" x 2.4"
Brakes
Brakes
Magura MT7, 203mm front rotor, 180mm rear rotor
Brake Levers
Magura MT7, 2-finger
Cockpit
Stem
Nicolai MTB, 35mm
Handlebar
Renthal Fatbar Carbon, 780mm width, 20mm rise
Grips
Ergon GE1 Slim, black
Headset
Cane Creek Forty
Seat
Saddle
Ergon SMA30 Comp, Stealth
Seatpost
Bikeyoke Revive 2.0 dropper, 160mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.3 mm | 1.24 mm | 1.21 mm | 1.2 mm | 1.2 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 794 mm | 827 mm | 853 mm | 874 mm | 907 mm |
| Rake | 63 mm | 62 mm | 63 mm | 57 mm | 61 mm |
| Trail | 104 mm | 105 mm | 104 mm | 110 mm | 106 mm |
| Stack | 604 mm | 613 mm | 622 mm | 640 mm | 661 mm |
| Reach | 463 mm | 493 mm | 513 mm | 533 mm | 553 mm |
| Top Tube Length | 613 mm | 645 mm | 667 mm | 692 mm | 717 mm |
| Seat Tube Angle | 76.7 ° | 76.7 ° | 76.7 ° | 76.7 ° | 76.7 ° |
| Seat Tube Length | 420 mm | 450 mm | 470 mm | 500 mm | 520 mm |
| Head Tube Angle | 65.2 ° | 65.2 ° | 65.2 ° | 65.2 ° | 65.2 ° |
| Head Tube Length | 100 mm | 120 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 454 mm | 460 mm |
| Wheelbase | 1240 mm | 1273 mm | 1299 mm | 1326 mm | 1366 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 719 mm | 747 mm | 766 mm | 796 mm | 815 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

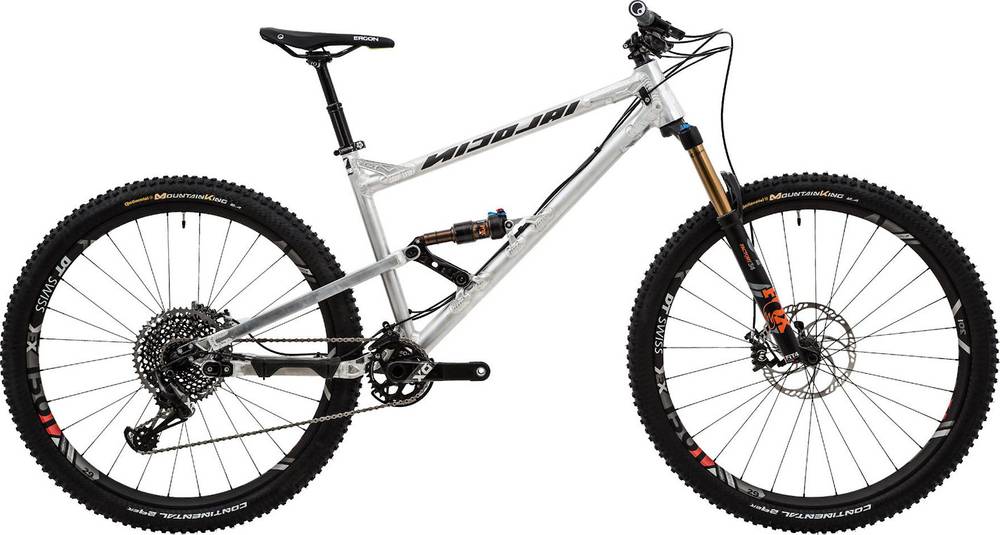

Ion G13 Qlfline completes the Nicolai Ion model. Nicolai launched 4 bikes of this model so far. Take a sneak peek at all Nicolai Ion bikes models from 2018, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, Ion G13 Qlfline has a weight of 13.3 kg (29.32 lbs). To sum up, it’s 2.47% heavier than the average weight of Trail bikes.
Overview of components
Fork
The Ion G13 Qlfline comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Ion G13 Qlfline has a rear shock with a travel of 130mm. The model FOX Racing Float DPS Factory is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on Ion G13 Qlfline are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ion G13 Qlfline comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Nicolai Ion G13 Qlfline includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
