Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 145mm -
Fork Fox Factory Float 36
-
Groupset X1 -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Factory 36 Float, FIT
Rear Shock
FOX Float X2 Comp-Lever, FS, 215mm x 64mm
Drivetrain
Rear Derailleur
SRAM X1
Front Derailleur
N/A
Shift Levers
SRAM X1, 11-speed
Cassette
SRAM XG-1180, 10 x 42 tooth, 11-speed
Crank
Hope, 170mm
Bottom Bracket
Hope, 73mm BSA
Chain
SRAM PC X1
Chain Guide
Hope Slick
Pedals
None included
Wheels
Front Hub
Hope Pro 4 Evo, Boost
Rear Hub
Hope Pro 4 Evo, Boost
Rims
Hope Tech Enduro
Spokes
Hope Tech Enduro
Tires
Front: Continental Baron Project Protection Apex, 2.4", Rear: Continental MountainKing 2 Protection, 2,4"
Brakes
Brakes
Hope Tech 3 E4 with 200mm front/180mm rear rotors
Brake Levers
Hope Tech 3 E4
Cockpit
Stem
Hope AM, 35mm length
Handlebar
Renthal Fatbar, carbon, 780 width
Grips
Ergon GE1, slim
Headset
Reset Flatstack A4
Seat
Saddle
Ergon SME 3-S
Seatpost
RockShox Reverb Stealth, 170 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | MD High | LG High | XL High | XXL High |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.26 mm | 1.22 mm | 1.19 mm | 1.18 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 807 mm | 836 mm | 866 mm | 891 mm | 919 mm |
| Rake | 56 mm | 55 mm | 56 mm | 56 mm | 56 mm |
| Trail | 117 mm | 118 mm | 117 mm | 117 mm | 117 mm |
| Stack | 621 mm | 621 mm | 630 mm | 640 mm | 658 mm |
| Reach | 463 mm | 493 mm | 518 mm | 538 mm | 558 mm |
| Top Tube Length | 609 mm | 639 mm | 665 mm | 689 mm | 713 mm |
| Seat Tube Angle | 77.2 ° | 77.2 ° | 77.2 ° | 77.2 ° | 77.2 ° |
| Seat Tube Length | 420 mm | 450 mm | 470 mm | 500 mm | 520 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm | 150 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 454 mm | 460 mm |
| Wheelbase | 1254 mm | 1283 mm | 1313 mm | 1344 mm | 1378 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm | 22 mm | 22 mm |
| Standover Height | 719 mm | 747 mm | 766 mm | 794 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |

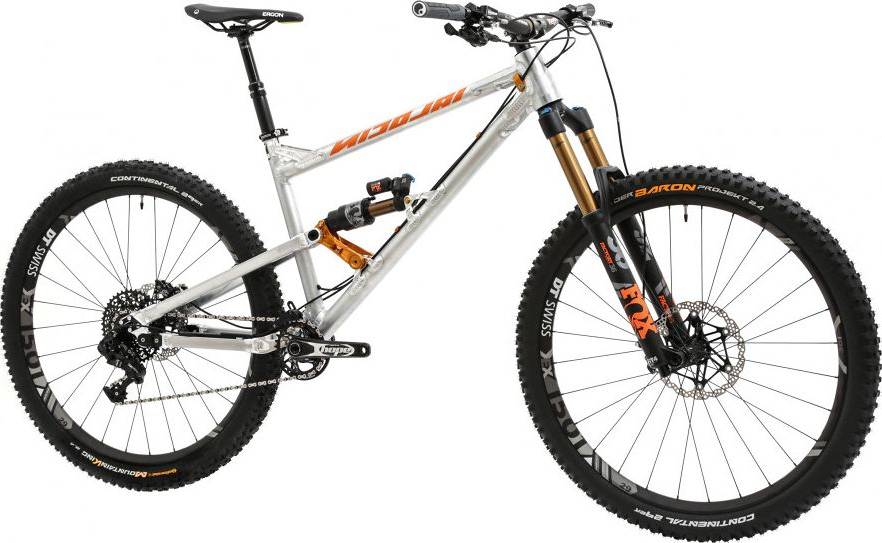

Model Overview
Ion-G15 Qlfline belongs to the Nicolai Ion G15 model. Nicolai launched 2 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Nicolai Ion-G15 Qlfline it’s weighing 13 kg (28.66 lbs). At this weight, is slightly heavier than average. In short, the average Trail bike weight is 0.15% lower than this one.
Overview of components
Fork
The Ion-G15 Qlfline comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Nicolai Ion-G15 Qlfline bike has the FOX Float X2 Comp-Lever model installed, and has a travel of 145mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Ion-G15 Qlfline 2018 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Nicolai Ion-G15 Qlfline has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
