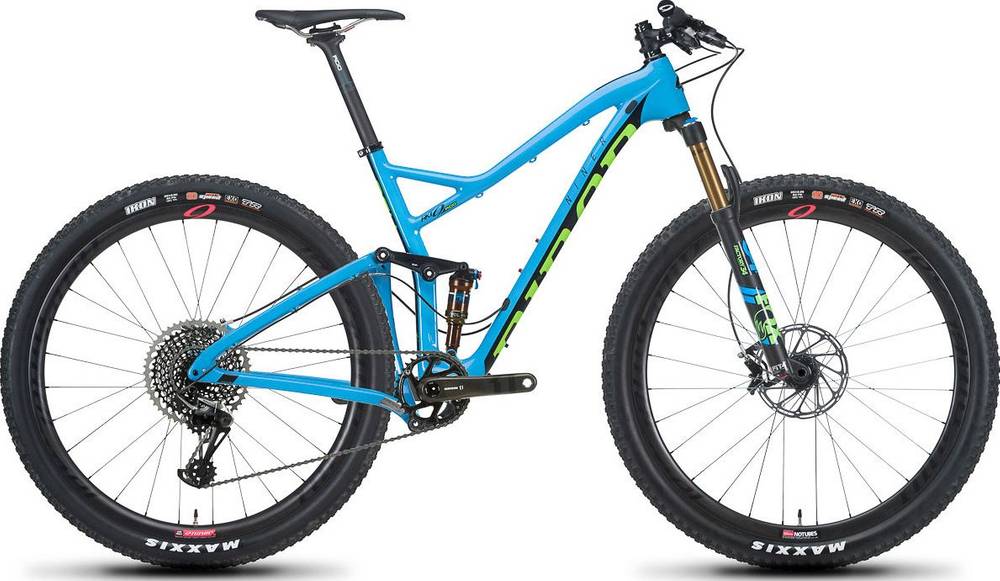

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 90mm -
Fork Fox Factory Float 34
-
Groupset X01, X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RKT 9 RDO - TEAM RED OR BLUE/GREEN
Suspension Fork
FOX 34 FLOAT FACTORY FIT4 EVOL, 3 POSITION W/ ADJ, KASHIMA COAT, 120MM, 110X15MM
Rear Shock
FOX FLOAT DPS FACTORY EVOL 3 POSITION W/ ADJUST, KASHIMA COAT
Drivetrain
Rear Derailleur
SRAM Eagle X01, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 EAGLE 12SP
Cassette
SRAM EAGLE XG 1295, 10-50T
Crank
SRAM X1 EAGLE CARBON PF30 32T CNC RING
Bottom Bracket
SRAM%20PF30
Chain
SRAM X01 EAGLE 12SP
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss 350, 15mm x 110mm, 12mm x 148mm, XD Driver
Rear Hub
DT Swiss 350, 15mm x 110mm, 12mm x 148mm, XD Driver
Rims
Niner Carbon XC
Spokes
32 count front and rear
Tires
MAXXIS IKON 3C/EXO/TR 2.35 FRONT
Brakes
Brakes
SRAM GUIDE RSC
Brake Levers
SRAM GUIDE RSC
Cockpit
Stem
NINER RDO STEM, NINER GRAPHIC
Handlebar
NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
Grips
NINER GRRRIPS L/O
Headset
NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
Seat
Saddle
NINER CUSTOM WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC
Seatpost
NINER RDO SEAT POST, 370MM, NINER GRAPHIC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.51 mm | 1.47 mm | 1.43 mm | 1.4 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 643 mm | 652 mm | 673 mm | 694 mm | 714 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 45 mm |
| Trail | 91 mm | 87 mm | 87 mm | 87 mm | 88 mm |
| Stack | 588 mm | 595 mm | 605 mm | 615 mm | 624 mm |
| Reach | 381 mm | 394 mm | 411 mm | 429 mm | 446 mm |
| Top Tube Length | 557 mm | 572 mm | 592 mm | 612 mm | 632 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 406 mm | 457 mm | 509 mm | 559 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1078 mm | 1088 mm | 1109 mm | 1130 mm | 1150 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 701 mm | 708 mm | 737 mm | 771 mm | 810 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
RKT 9 RDO 5-STAR belongs to the Niner Rkt model. There are 58 bikes that carry this model name. You can easily view all of the Niner Rkt bikes models from 2018, here.
Model range prices
The most economical model, the Niner RKT 9 RDO 1-STAR 2018 has a starting price of 3800$. Niner RKT 9 RDO 5-STAR 2018 on the other hand is the most expensive at 7300$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7300$. Doing a quick comparison, we notice that RKT 9 RDO 5-STAR price is 164.3% more expensive than the average cost of a Trail bike.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Niner RKT 9 RDO 5-STAR bike has the FOX FLOAT DPS FACTORY EVOL 3 POSITION W/ ADJUST model installed, and has a travel of 90mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The RKT 9 RDO 5-STAR 2018 bike is equipped with 29″ carbon wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The RKT 9 RDO 5-STAR comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
RKT 9 RDO 5-STAR comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
