Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 160mm -
Fork Marzocchi
-
Groupset X7, Truvativ -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydraform alloy frame with forged yoke, ISCG mount, added gussets, low stand over
Suspension Fork
Marzocchi 55 R, 160mm of travel, 20 mm axle, 1-1/8” alloy steer tube
Drivetrain
Rear Derailleur
SRAM X-7, 9 speed, medium cage
Front Derailleur
Truvativ Hammerschmidt
Shift Levers
SRAM X-9 trigger
Cassette
SRAM PG-950, 9 speed, 11-32T
Crank
Truvativ Hammerschmidt crank / BB / dual internal drive
Bottom Bracket
Truvativ Hammerschmidt
Chain
SRAM PC-951
Pedals
Alloy flat pedal, sealed bearing, steel pins, custom colour
Wheels
Front Hub
KT 20mm axle, sealed bearings
Rear Hub
Shimano M-475, 8/9 spd cassette
Rims
Sun MTX 29 double wall, 32 hole, grey colour
Spokes
Stainless silver 2.0
Tires
Kenda Nevegal 26 x 2.35, Stick E rubber
Brakes
Brakes
Avid Juicy 5, 7” rotor
Brake Levers
Avid Juicy 5
Cockpit
Stem
Truvativ Hussefelt alloy, 31.8mm, 50mm extension, grey
Handlebar
Truvativ Hussefelt double butted, 38 mm rise, 31.8mm, grey
Grips
Pro Palm lock on grip
Headset
FSA No. 20, sealed bearing
Seat
Saddle
Norco Shore, short profile, custom cover
Seatpost
Truvativ XR double bolt, 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 322 mm | 327 mm | 327 mm | 327 mm | 327 mm |
| Front Center | 646 mm | 665 mm | 688 mm | 712 mm | 730 mm |
| Top Tube Length | 546 mm | 569 mm | 591 mm | 615 mm | 631 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 345 mm | 383 mm | 420 mm | 458 mm | 509 mm |
| Head Tube Angle | 66.5 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 135 mm | 150 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1067 mm | 1086 mm | 1108 mm | 1133 mm | 1150 mm |
| Bottom Bracket Drop | 21 mm | 16 mm | 16 mm | 16 mm | 16 mm |
| Standover Height | 769 mm | 775 mm | 785 mm | 801 mm | 830 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

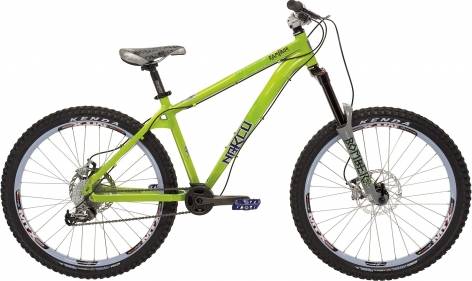

’09 Rampage is part of the Norco 09 model. There are 13 bikes that carry this model name. Take a sneak peek at all Norco 09 bikes models from 2010, by clicking here.
Model range prices
Norco ’09 VFR D-2 2010 is the cheapest bike model and costs 1239$. Norco ’09 Shore One 2010 is the most expensive one and costs 4850$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Dirt Jump bikes average price
Our math shows that the average cost of a dependable Dirt Jump bike is 863$. However, this doesn’t mean that if you spend less money on a Dirt Jump bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2010 for 2475$. Doing a quick comparison, we notice that ’09 Rampage price is 186.79% higher than the average cost of a Dirt Jump bike.
Overview of components
Fork
This bike has the Marzocchi fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
As for the wheels, Norco ’09 Rampage 2010, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco ’09 Rampage has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
