Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 160mm -
Travel Rear 150mm -
Fork Marzocchi
-
Groupset X5, Alivio -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydraformed AL, 6” travel, 135 x 12mm maxle dropouts
Suspension Fork
Marzocchi 55 R, 160mm of travel, 1-1/8” steel steer tube
Rear Shock
Fox Van R Coil shock
Drivetrain
Rear Derailleur
SRAM X-5, 9 speed, medium cage
Front Derailleur
Shimano Alivio 31.8
Shift Levers
SRAM X-5, trigger
Crank
FSA Moto X, 22/32T
Bottom Bracket
FSA BB-7000
Chain
KMC Z72 8 speed
Pedals
Alloy flat pedal, Orange
Wheels
Front Hub
KT 20 mm axle , sealed bearing hub
Rear Hub
KT 135 x 12 rear cassette hub with Maxle axle
Rims
Alex TD-24 , 32 hole , double wall
Spokes
White Powder coat spokes, Chung Nan
Tires
Kenda Nevegal, 2.35
Brakes
Brakes
Avid Juicy 3, 8” rotor
Brake Levers
Avid Juicy 3
Cockpit
Stem
Truvativ XR, alloy, 31.8mm, 60mm ext.
Handlebar
Funn Fatboy, 710x50mm rise, 31.8, custom graphic
Grips
Norco clear grip
Headset
FSA TH-855 1-1/8”
Seat
Saddle
WTB Rocket V, kevlar corners
Seatpost
Truvativ XR, double bolt, 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm |
| Front Center | 682 mm | 705 mm | 730 mm |
| Top Tube Length | 574 mm | 596 mm | 621 mm |
| Seat Tube Angle | 72.1 ° | 72.1 ° | 72.1 ° |
| Seat Tube Length | 406 mm | 445 mm | 483 mm |
| Head Tube Angle | 66.9 ° | 66.9 ° | 66.9 ° |
| Head Tube Length | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1123 mm | 1146 mm | 1171 mm |
| Standover Height | 744 mm | 750 mm | 761 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

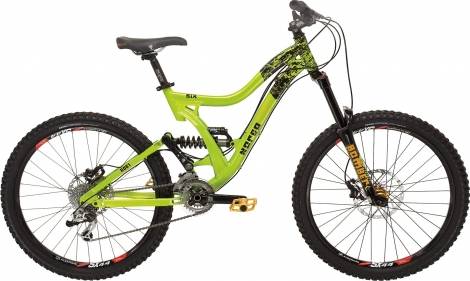

’09 Six Three belongs to the Norco 09 model. There are 13 bikes that carry this model name. You can get a glimpse at all models from 2010, by clicking on this link.
Model range prices
Norco ’09 VFR D-2 2010 is the most economical model, with a starting price of 1239$. Norco ’09 Shore One 2010 on the other hand costs 4850$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2435$. If we compare this with the average Enduro bike cost we notice that the price is 47.8% lower.
Overview of components
Fork
This bike has the Marzocchi fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Rear Shock
As for the rear shock, this bike has the Fox Van R Coil shock model, with a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the ’09 Six Three model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco ’09 Six Three has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
