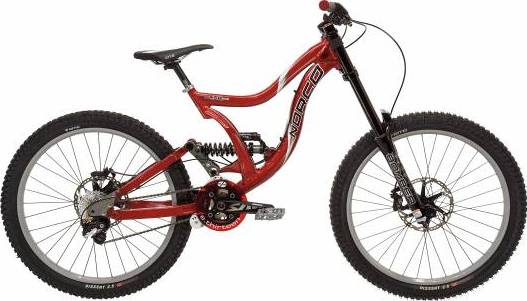

Norco A-LINE PARK EDITION 2009
2009 Mountain
Estimate price |
4,350$
Weight | 20.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 203mm -
Travel Rear 227mm -
Fork Marzocchi
-
Groupset Saint -
Suspension Full -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydraformed AL, adjustable travel, 199mm-227mm travel, adjustable headtube angle, bb height, 1.5” forged headtube
Suspension Fork
Marzocchi 888 RCV, 203 mm of travel, 1-1/8” steer tube
Rear Shock
Fox DHX-3 w/ factory tuned ProPedal
Drivetrain
Rear Derailleur
Shimano Saint, 9 speed, medium cage
Front Derailleur
N/A
Shift Levers
Shimano Saint rapid fire, 9 speed rear
Cassette
Shimano LX , 9 speed, 11-32T
Crank
Race Face Evolver DH or Shimano Saint, 170 mm 36T, E-13 SRS Guard with Translucent Red guard
Bottom Bracket
Shimano Saint
Chain
Shimano CN-HG-53, 9 speed
Pedals
Flat pedal with sealed bearing, steel pins, grey
Wheels
Front Hub
Shimano Saint, 20mm axle
Rear Hub
Shimano Saint, 150 x 12mm, 9 spd
Rims
WTB Laser Disc FR 30 mm, 32 H, Grey
Spokes
Stainless steel, black 2.0
Tires
WTB Dissent 26 x 2.5, high grip compound, DH casing
Brakes
Brakes
Shimano Saint, 8” rotor
Brake Levers
Shimano Saint
Cockpit
Stem
Marzocchi clamp on direct mount 53 mm / 63 mm extension
Handlebar
Truvativ Hussefelt 710 mm x 25mm rise, 31.8mm, Grey
Grips
Pro Palm lock on grip
Headset
FSA Orbit E 1.5” R reducer internal 1.5” to 1-1/8”
Seat
Saddle
WTB Silverado custom cover, chromoly rails
Seatpost
Truvativ XR double bolt, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 360 mm | 360 mm | 360 mm |
| Front Center | 710 mm | 725 mm | 751 mm |
| Top Tube Length | 572 mm | 592 mm | 617 mm |
| Seat Tube Angle | 71.3 ° | 71.3 ° | 71.3 ° |
| Seat Tube Length | 419 mm | 432 mm | 445 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1157 mm | 1172 mm | 1197 mm |
| Bottom Bracket Drop | -17 mm | -17 mm | -17 mm |
| Standover Height | 760 mm | 757 mm | 758 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
A-LINE PARK EDITION is a Norco A Line model. 7 bikes variations carry this model name so far. You can get a glimpse at all models from 2009, by clicking on this link.
Model range prices
Norco A-LINE 2009 is the most economical model, with a starting price of 3399$. Norco A-LINE PARK EDITION 2009 on the other hand costs 4350$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Downhill bikes average price
According to our math, the average price for a trustworthy Downhill bike is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4350$. Comparing this to the average Downhill bike price, we see that the price is 28.28% higher.
Downhill bikes average weight
On a deeper look, we notice that the average weight of a Downhill bike is 15.89 kg (35.03 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
A-LINE PARK EDITION weighs 20.9 kg (46.08 lbs) and is much heavier than the average. In conclusion, the average Downhill bike weighs 31.53% less than A-LINE PARK EDITION.
A-LINE PARK EDITION components
Fork
The Marzocchi is included from the factory. It has a travel distance of 203mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Norco A-LINE PARK EDITION bike has the Fox DHX-3 w/ factory tuned ProPedal model installed, and has a travel of 227mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The A-LINE PARK EDITION 2009 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
When you want to stop the bike in time, the brakes are vital. The A-LINE PARK EDITION has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Norco A-LINE PARK EDITION bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
