Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aurum ( 200 mm travel )
Rear Shock
Cane Creek Double barrel coil (9.5"x3") (241.3 x76.3), spring rate Small 300lb, Med 350lb , Large 400 lb
Cockpit
Headset
Cane Creek Angleset headset ( includes zero degree , +/- .5 , 1 and 1.5 degree) for fit with a tapered headtube
Seat
Seatpost
Norco Lite two bolt seattpost 2014 alloy 30.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | - | - | - |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.41 mm | 1.34 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm |
| Front Center | 732 mm | 754 mm | 777 mm |
| Rake | 51 mm | 50 mm | 50 mm |
| Trail | 120 mm | 121 mm | 121 mm |
| Stack | 579 mm | 579 mm | 579 mm |
| Reach | 388 mm | 410 mm | 433 mm |
| Top Tube Length | 578 mm | 603 mm | 633 mm |
| Seat Tube Angle | 71.9 ° | 71.4 ° | 71 ° |
| Seat Tube Length | 415 mm | 435 mm | 455 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 418 mm | 423 mm | 428 mm |
| Wheelbase | 1150 mm | 1175 mm | 1204 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm |
| Front Travel | 200 mm | 200 mm | 200 mm |
| Rear Travel | 200 mm | 200 mm | 200 mm |
| Wheels | 27" | 27" | 27" |
About this model

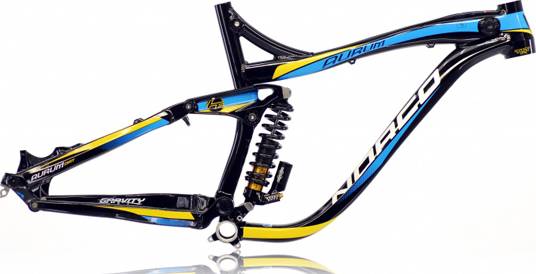

Aurum 1 Dirt Team Framekit completes the Norco Aurum model. There are 70 frames that carry this model name. Check out the entire range from 2013 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill frames
If you want an acceptable Downhill frame you should know that the average price is 1923$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Rear Shock
From the factory, it comes with the Cane Creek Double barrel coil (9.5″x3″) (241.3 x76.3) rear shock model, which has a travel of 200mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
