Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Butted X6 Aluminum
Suspension Fork
6061 Aluminum
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100
Shift Levers
Shimano Deore SL-M5100
Cassette
Sunrace CMX8, 11/51T, 11 Speed
Crank
Samox Alloy, 30T, 170mm (S), 175mm (M, L, XL)
Bottom Bracket
External, BSA Threaded
Chain
KMC X11
Pedals
VP Nylon Flat
Wheels
Front Hub
Sealed Bearing, 15x150mm, 6 Bolt
Rear Hub
Sealed Bearing, 12x197mm, HG, 6 Bolt
Rims
Alloy TR, 27.5", 32H
Tires
Vee Snow Avalanche TLR, 4.5", Studdable
Brakes
Brakes
Tektro MD-280 Mechanical, Organic Pads
Brake Levers
Tektro Alloy
Disk Rotors
Tektro, 180mm
Cockpit
Stem
Alloy, 50mm Length, 31.8mm Clamp
Handlebar
Butted 6061 Alloy, 760mm, 15mm Rise
Grips
VP Lock-On
Headset
Sealed Bearing, Tapered
Seat
Saddle
Norco XC
Seatpost
Norco Alloy 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.493 mm | 1.391 mm | 1.321 mm | 1.262 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 680 mm | 709 mm | 743 mm | 776 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 95 mm | 95 mm | 95 mm | 95 mm |
| Stack | 612 mm | 612 mm | 621 mm | 631 mm |
| Reach | 410 mm | 440 mm | 470 mm | 500 mm |
| Top Tube Length | 586 mm | 616 mm | 648 mm | 681 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 425 mm | 450 mm | 500 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1113 mm | 1143 mm | 1177 mm | 1210 mm |
| Bottom Bracket Drop | 59 mm | 59 mm | 59 mm | 59 mm |
| Standover Height | 675 mm | 676 mm | 690 mm | 718 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 191 cm |
About this model

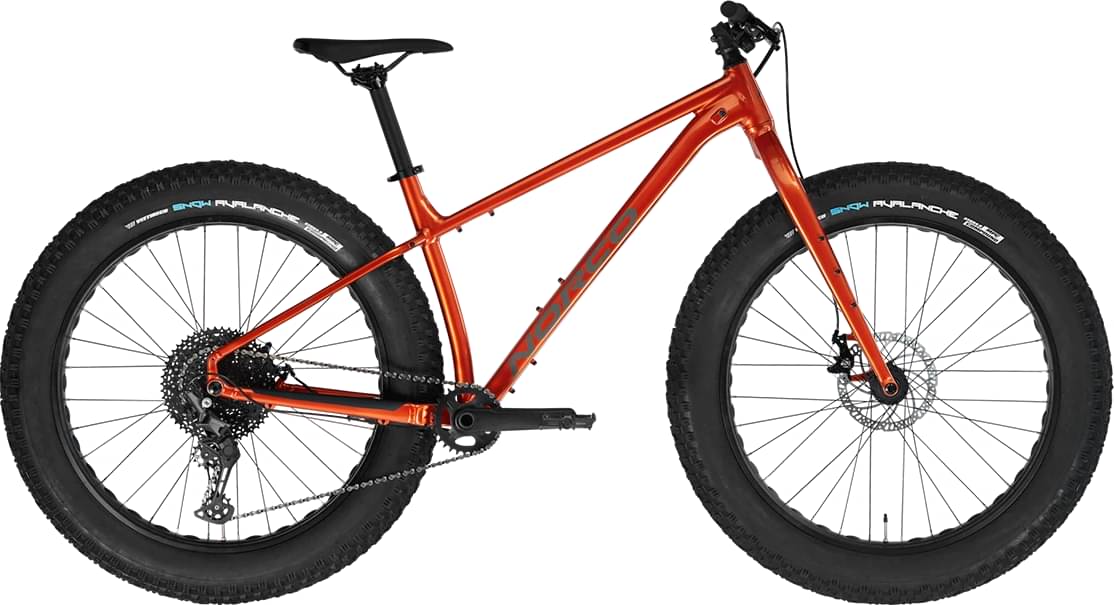

Bigfoot 3 completes the Norco Bigfoot model. 34 bikes variations carry this model name so far. You can easily view all of the Norco Bigfoot bikes models from 2022, here.
Model range prices
The most economical model, the Norco Bigfoot 3 2022 has a starting price of 1749$. Norco Bigfoot S 1 2022 on the other hand is the most expensive at 3199$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fatbike bikes average price
According to our calculations, the average cost of a Fatbike bike that is reliable is 1743$. However, this doesn’t mean that if you spend less money on a Fatbike bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 1749$. In conclusion, this bike price is 0.34% more expensive than the price of the average Fatbike bike.
Overview of components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on Bigfoot 3 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Bigfoot 3 has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 191 cm (5.05 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
