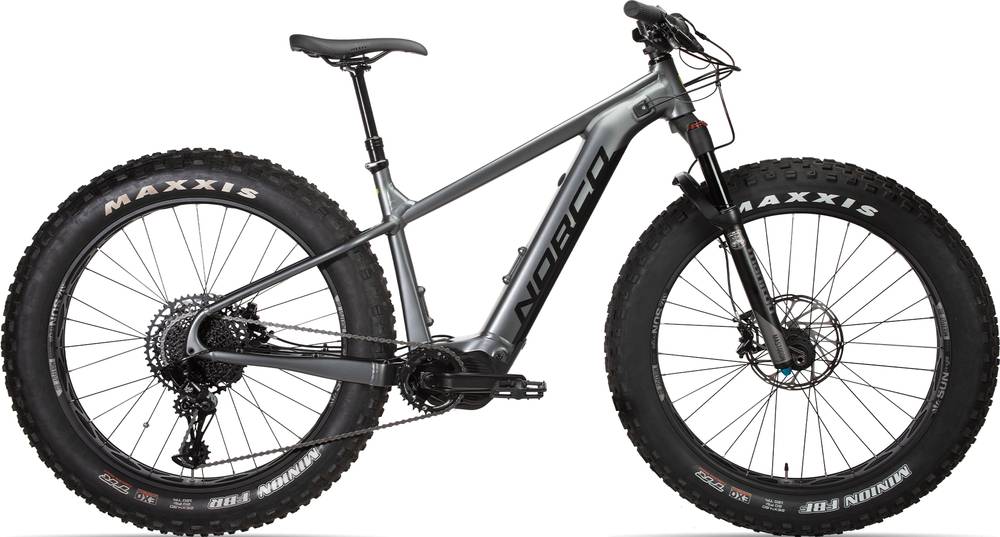

Norco Bigfoot VLT 1 2019
2019 E-bike
Estimate price |
4,799$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Manitou Mastodon Pro
-
Groupset NX Eagle -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery In-Tube Battery, 630Wh Capacity -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Bigfoot VLT, Aluminum, Boost 12x197mm Dropouts, Shimano Motor Mount
Suspension Fork
Manitou Mastodon Pro, 100mm Travel, 15x150mm TA, 51mm Offset
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12 Speed
Shift Levers
SRAM NX Eagle, 12 Speed
Cassette
SRAM NX Eagle PG-1230, 11-50T, 12 Speed
Crank
Samox Offset Fat Crank, 165mm
Chain
SRAM NX Eagle, 12 Speed
Pedals
VP Nylon Flat Pedals, 9/16"
Wheels
Front Hub
KT-M9CF, 15x150mm
Rear Hub
KT-M9CR, 12x197mm
Rims
Sun Mulefüt 80SL, 32 Hole, 80mm Internal Width
Tires
Maxxis Minion FBF, 26x4.8", EXO/TR, Folding
Brakes
Brakes
SRAM Guide T, 4 Piston Hydraulic Disc, SRAM CenterLine 200mm Rotors
Brake Levers
SRAM Guide T
Cockpit
Stem
6061 Aluminum, 50mm Length, 31.8mm Clamp Diameter
Handlebar
Norco 6061 Aluminum, 800mm Wide, 20mm Rise, 35mm Diameter
Grips
VP, Lock-On
Headset
ACROS AZ-44BL Block Lock Upper, AZ-56 Lower, Zero Stack Internal
Seat
Saddle
WTB Volt Sport
Seatpost
TranzX YSP18JL Stealth Dropper, 100mm (S) | 125mm (M) | 130mm (L/XL) Travel, 31.6mm, 1x Lever
Motor & Battery
Motor
Shimano STEPS E8000
Battery
In-Tube Battery, 630Wh Capacity
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.4 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm | 323 mm |
| Front Center | 690 mm | 723 mm | 757 mm | 791 mm |
| Rake | 51 mm | 51 mm | 51 mm | 50 mm |
| Trail | 84 mm | 84 mm | 84 mm | 85 mm |
| Stack | 615 mm | 624 mm | 634 mm | 643 mm |
| Reach | 415 mm | 445 mm | 475 mm | 505 mm |
| Top Tube Length | 578 mm | 611 mm | 643 mm | 676 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 405 mm | 435 mm | 470 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1143 mm | 1177 mm | 1211 mm | 1244 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 772 mm | 768 mm | 777 mm | 788 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Bigfoot VLT 1 is part of the Norco E Bigfoot model. Norco launched 10 e-bikes of this model so far. You can easily view all of the Norco E Bigfoot e-bikes models from 2019, here.
Model range prices
Norco Bigfoot VLT 2 2019 is the most economical model, with a starting price of 3599$. Norco Bigfoot VLT 1 2019 on the other hand costs 4799$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fatbike e-bikes average price
According to our calculations, the average cost of a Fatbike e-bike that is reliable is 2033$. However, you could also get a good Fatbike e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Norco Bigfoot VLT 1 price was 4799$. If we compare this with the average Fatbike e-bike cost we notice that the price is 136.06% higher.
Bigfoot VLT 1 components
Fork
The Manitou Mastodon Pro is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Bigfoot VLT 1 are the 26″ aluminum type. These wheels give you great handling over your e-bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Bigfoot VLT 1 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Bigfoot VLT 1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Norco Bigfoot VLT 1 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
