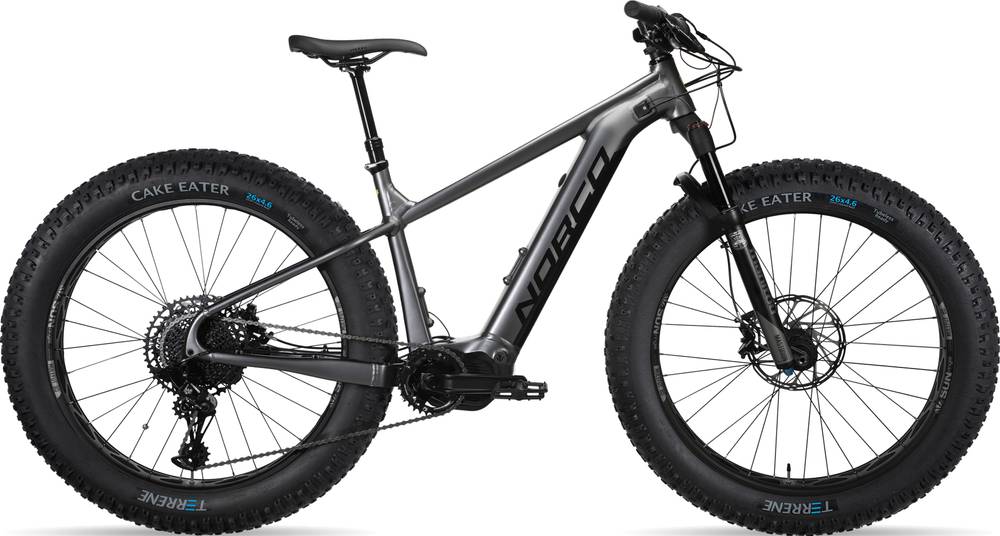

Norco Bigfoot VLT 1 2020
2020 E-bike
Estimate price |
4,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Manitou Dorado Expert
-
Groupset NX Eagle, SX Eagle -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery In-Tube 630Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bigfoot Fat Bike aluminum
Suspension Fork
Manitou Mastodon Pro w/Dorado Air, 100mm Travel
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM SX Eagle 12 speed, Single Click E-MTB
Cassette
SRAM NX Eagle, PG-1230, 11-50T
Crank
Samox alloy for E8000, 170mm, Eagle 32T
Chain
SRAM NX Eagle
Pedals
VP Nylon Flat
Wheels
Front Hub
KT alloy, sealed bearing 15x150mm
Rear Hub
KT alloy, sealed bearing, 12x197mm
Rims
Sun Mulefut 80SL, 80mm wide, 26"
Tires
Terrene Cake Eater, 26 x 4.6, Studdable
Brakes
Brakes
SRAM Guide T Hydraulic, 200mm
Cockpit
Stem
Norco Alloy, 50mm, 35mm bore
Handlebar
Norco 6061, 800mm, 20 mm rise, 35mm bore
Grips
SDG Slater Lock On
Headset
Acros Block Lock, sealed bearing
Seat
Saddle
WTB Volt 250 Sport
Seatpost
TranzX Stealth Dropper, 100mm (S) / 125mm (M) / 130mm (L) Travel, 31.6mm, 1x Lever
Motor & Battery
Motor
Shimano STEPS E-8000
Battery
In-Tube 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.4 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm | 323 mm |
| Front Center | 690 mm | 723 mm | 757 mm | 790 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 615 mm | 624 mm | 634 mm | 643 mm |
| Reach | 415 mm | 445 mm | 475 mm | 505 mm |
| Top Tube Length | 578 mm | 611 mm | 643 mm | 676 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 405 mm | 435 mm | 470 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1143 mm | 1177 mm | 1211 mm | 1244 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 654 mm | 665 mm | 691 mm | 716 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Bigfoot VLT 1 completes the Norco E Bigfoot model. 10 e-bikes variations carry this model name so far. You can easily view all of the Norco E Bigfoot e-bikes models from 2020, here.
Model range prices
Norco Bigfoot VLT 2 2020 is the cheapest e-bike model and costs 3599$. Norco Bigfoot VLT 1 2020 is the most expensive one and costs 4599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Fatbike e-bikes
If you want an acceptable Fatbike e-bike you should know that the average price is 2033$. However, even though the average price of a Fatbike e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2020 and its price was 4599$. Doing a quick comparison, we notice that Bigfoot VLT 1 price is 126.22% more expensive than the average cost of a Fatbike e-bike.
Bigfoot VLT 1 components
Fork
The Manitou Dorado Expert is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Bigfoot VLT 1 e-bike is equipped with the 26″ aluminum model. These wheels give you great handling over your e-bike. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Bigfoot VLT 1 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Bigfoot VLT 1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
